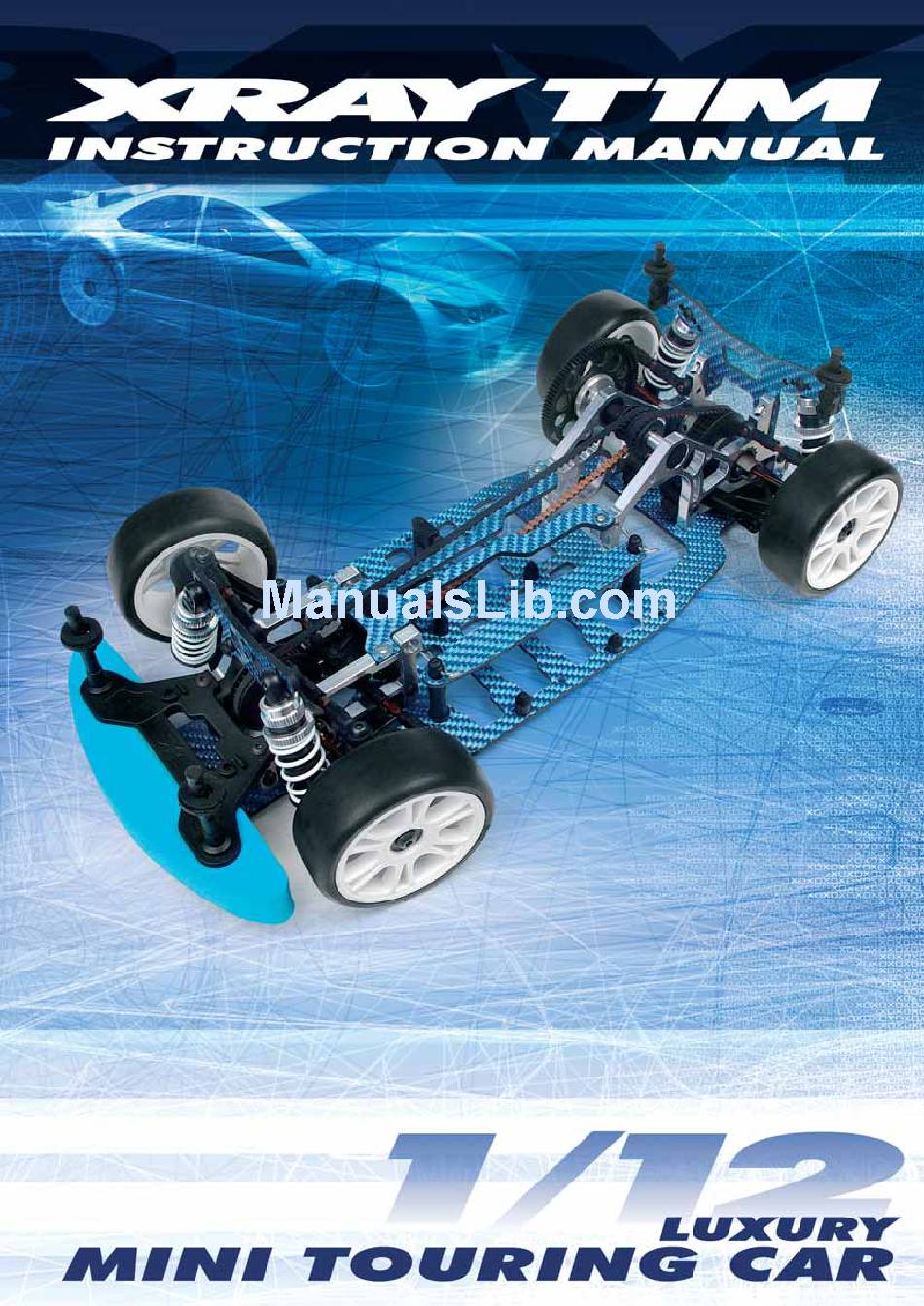

Xray t1m Instruction Manual

Xray t1m Instruction Manual

1/12 luxury mini touring car
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the t1m and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xray t1m

Summary of Contents for Xray t1m

  • Page 2 The XRAY T1 Mini is a great car for fun racing. It is is much easier to drive As the proud owner of an XRAY T1 Mini, you are cordially invited to join than standard touring cars, it is much more affordable, and motor wear is Team XRAY.

  • Page 3: Table Of Contents

    ALU SUSP . ADJUSTABLE BULKHEAD FRONT LEFT The XRAY T1 Mini comes partially preassembled. Before starting assembly, disassemble the chassis parts, noting the position and orientation of the parts, particularly the bulkheads. Keep the parts, including the screw hardware, close at hand. In the assembly steps that follow, each section...

  • Page 4: Front & Rear Differential

    1. FRONT & REAR DIFFERENTIAL 305050 305040 305010 309070 309370 309442 305082 305050 305090 305082 309020 305020 305050 30 5010 ALU DIFF LONG OUTPUT SHAFT - HARD COATED 30 5090 BALL STEEL 2.4 MM (24) 30 5020 ALU DIFF SHORT OUTPUT SHAFT - HARD COATED 30 9020 BALL-BEARING MR85ZZ 5x8x2.5 (2) 30 5040...
  • Page 5 FRONT & REAR DIFFERENTIAL 1 1 . Hold the short diff shaft with the installed pulley facing up. Place a #309020 (BB 5x8) ball-bearing on the center stub, atop the other bearing. 2 2 . . Put a very thin coat of grease on the side of a #305082 diff washer, and place it on 309020 the long diff shaft.

  • Page 6: Rear Transmission

    2. REAR TRANSMISSION 305358 303015 309319 302042 302070 303159 309354 309054 305000 309452 307311 305442 309035 309045 305570 309319 309415 303025 305514 305439 301119 302042 309336 309343 30 2042 LOWER SUSPENSION HOLDER INTEGRATED ( SET 12) 30 9336 HEX SCREW SH M3x12 (10) 30 2070 ECCENTRIC NYLON HUB FOR BULKHEAD + COVERS (4+2) 30 9343...
  • Page 7 REAR TRANSMISSION 1 1 . . Insert the layshaft through the upper ball-bearing in the right rear bulkhead ➍ ➏ until the shoulder on the layshaft rests against the outside of the bearing. 309452 ➊ 2 2 . . Slide the collar over the layshaft, with the tapered end toward the bearing. P 2x10 3 3 .

  • Page 8: Rear Suspension

    3. REAR SUSPENSION 309333 303099 309351 309335 303231 303222 307454 302630 302662 303350 309054 305240 305329 309452 305310 309425 307320 309352 305230 30 2630 ADJ. TURNBUCKLE L/R 20 MM - SPRING STEEL (2) 30 7320 REAR PIVOT PIN FOR C-HUB - SPRING STEEL (2) 30 2662 BALL JOINT 5 MM - OPEN (6) 30 7454...
  • Page 9 REAR SUSPENSION To install a snap ring: To remove a snap ring: Place the hex portion of the wheel axle flat on a table. Place the hex portion of the wheel Put one end of the snap ring into the groove on the axle flat on a table.

  • Page 10: Front Transmission

    4. FRONT TRANSMISSION 305439 309054 302070 302042 302015 302025 309336 309358 305000 302159 309343 309354 307214 30 2042 LOWER SUSPENSION HOLDER INTEGRATED ( SET 2+1+1) 30 9358 HEX SCREW SB M4x8 (10) 30 2070 ECCENTRIC COMPOSITE HUB FOR BULKHEAD + COVERS (4+2) 30 2015 ALU SUSP .
  • Page 11 FRONT TRANSMISSION ➊ The left and right front lower arms are mirror images. 1 1 . . Thread a #309358 (SB M4x8) downstop adjustment screw into the hole at the rear of ➊ 309358 each front lower arm. The screws must protrude 2.0 mm below the arms, and must be SB M4x8 accessible from the tops of the arms for adjustment.

  • Page 12: Front Suspension

    5. FRONT SUSPENSION 302284 309335 302260 303240 307454 309393 309336 302290 309335 309336 303220 302630 307220 302662 302282 302099 309351 309425 309333 305230 302250 305310 309054 305240 305329 309452 30 2099 SHOCK TOWER FRONT 1/12 - GRAPHITE 30 5310 WHEEL AXLE - 22 MM - INTEGR. HEX HUB - HARD COATED (2) 30 2250 COMPOSITE STEERING BLOCK RIGHT FOR C-HUB SUSP .
  • Page 13 FRONT SUSPENSION To install a snap ring: To remove a snap ring: Place the hex portion of the wheel axle flat on a table. Place the hex portion of the wheel axle flat on a table. Insert Put one end of the snap ring into the groove on the opposite side of the axle cutout, and use a slotted a small screwdriver in the axle screwdriver to work the clip into the groove.
  • Page 14 6. STEERING 309343 302551 301189 309335 307454 302662 307454 302580 309335 302582 309010 309336 302501 302630 307454 309319 302662 302662 309010 302501 302630 302662 307454 302551 309336 FACTORY PREASSEMBLED 30 2501 DUAL-ACKERMANN CENTRAL SERVO SAVER (SET) 30 9336 HEX SCREW SH M3x12 (10) 30 2580 COMPOSITE SERVO HORN - KO, JR, AIRTRONICS, MULTIPLEX 30 9414...

  • Page 15: Steering

    STEERING ➋ 1 1 . . Attach the left and right steering rods to the servo saver. Pass a #309336 (SH M3x12) screw upward through the following parts: LEFT 309336 • #307454 pivot ball STEERING ROD SH M3x12 DETAIL 49.5mm •...

  • Page 16: Shock Absorbers

    NYLON FRAME SHOCK PARTS 4-STEP Properly functioning shocks are very important to the performance of your car. This XRAY shock set contains parts to build four externally-adjustable or non-adjustable shocks. Both adjustable and non-adjustable shocks feature XRAY's unique keying system that positively locks the pistons to the shock rods.
  • Page 17 SHOCK ABSORBERS 1 1 . . Insert the larger #308071 (O 5x1) O-ring onto the shock body, until it seats around the shock body extension. 2 2 . . Lubricate the small #308070 (O 3.1x1.6) O-ring with a drop or two of shock oil. Taking care not to rip or damage the O-ring, 308071 ➋...

  • Page 18: Rear Final Assembly

    30 1330 REAR BODY MOUNT SET 30 9452 PIN 2x10 (10) 30 9334 HEX SCREW SH M3x8 (10) 30 8300 XRAY SHOCK ABSORBER-SET 4-STEP (2) 30 9333 HEX SCREW SH M3x6 (10) 30 9344 HEX SCREW SFH M3x8 (10) ➌ ➍...

  • Page 19: Front Final Assembly

    FRONT BODY MOUNTS ( SET ) 30 1229 1/12 FOAM BUMPER 30 9333 HEX SCREW SH M3x6 (10) 30 8300 XRAY SHOCK ABSORBER-SET 4-STEP (2) 30 9344 HEX SCREW SFH M3x8 (10) 30 9345 HEX SCREW SFH M3x10 (10) 30 9393 NUT M3 (10) ➊...

  • Page 20: Final Assembly

    9. FINAL ASSEMBLY 306109 309400 309334 FROM SERVO 306109 306210 309402 306400 309346 305793 309345 309332 30 5793 SPUR GEAR 93T / 48 30 9334 HEX SCREW SH M3x8 (10) 30 6109 BATTERY HOLDER SYSTEM FOR 4 BAT. - COMPLETE SET 30 9345 HEX SCREW SFH M3x10 (10) 30 6210...

  • Page 21: Accessory Assembly

    ACCESSORY ASSEMBLY 306109 306310 309334 803001 309317 309310 NOT INCLUDED 309345 306300 TIRES & INSERTS NOT INCLUDED 309343 30 5720~34 PINION GEAR ALU HARD COATED 48P (OPTION) 30 9334 HEX SCREW SH M3x8 (10) 30 6109 BATTERY HOLDER SYSTEM FOR 4 BAT. - COMPLETE SET 30 9343 HEX SCREW SFH M3x6 (10) 30 6300...
  • Page 22 ACCESSORY ASSEMBLY The XRAY T1 Mini is a competition racecar, and therefore does not come supplied with tires and inserts. Check with racers at tracks you attend to determine the best tire/insert combinations. TIRES AND INSERTS NOT INCLUDED Use your own tires and inserts to prepare the wheels: 1 1 .

  • Page 23: Important Notes

    IMPORTANT NOTES: • This product is not suitable for children except under the direct supervision • Regularly check the charger for potential hazards such as damage to the cable, of an adult. plug, casing or other defects. Ensure that any damage is rectified before using •...
