Summary of Contents for joke ENESKA mobile 3

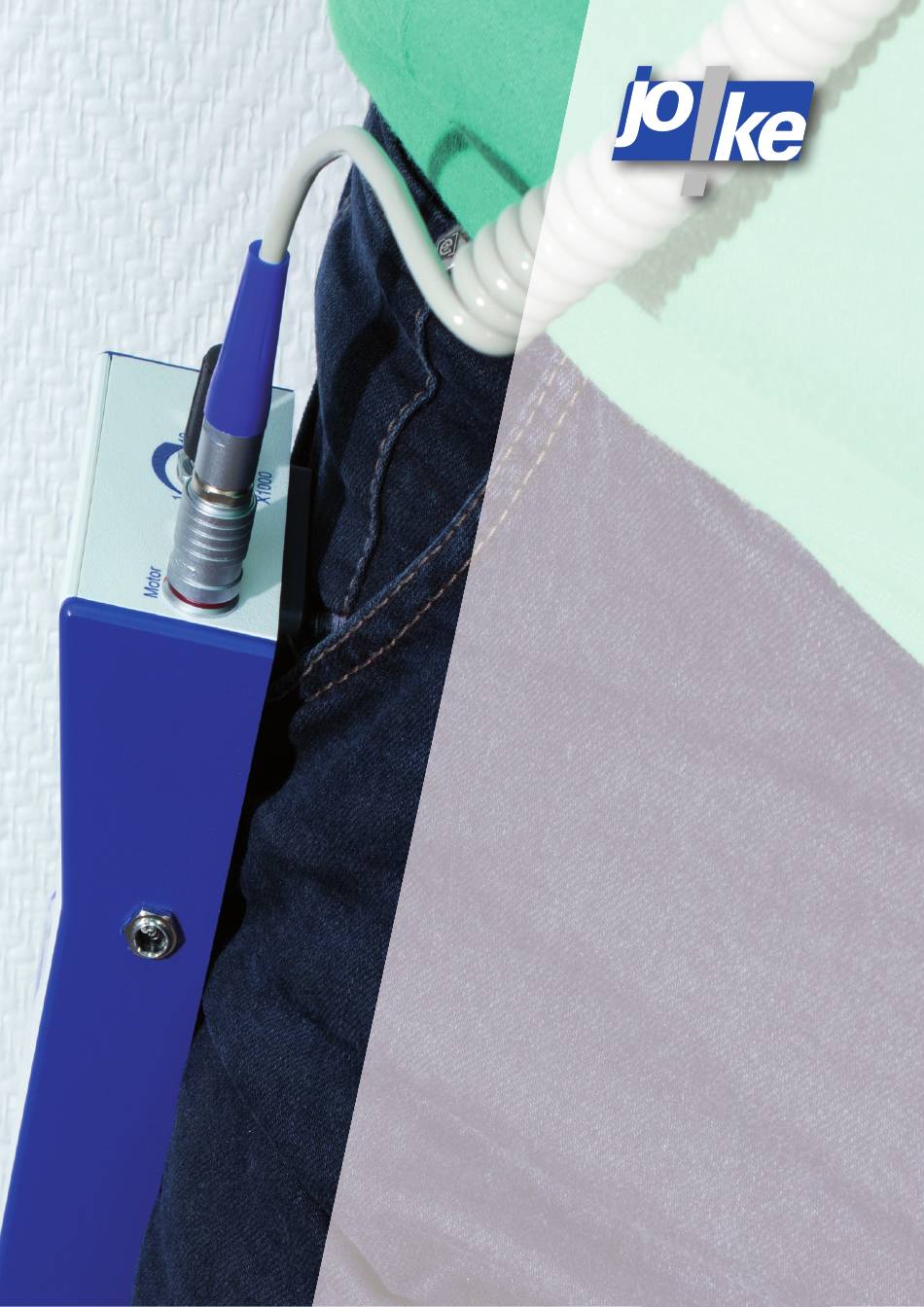

- Page 1 Instruction Manual Cordless grinding system set ENESKA mobile 3 and 4 Order no.: 0 006 850 and 006 950...
-
Page 2: Table Of Contents
Our service department is available at all times in case of technical problems not addressed in this manual: Telephone +49 (0) 22 04 / 8 39 - 0 Telefax +49 (0) 22 04 / 8 39 - 60 Email info@joke.de www.joke.de... -
Page 3: Safety Instructions
The device is designed exclusively for grinding, milling and polishing with the tools listed and approved in the joke catalogue. Any other use will be deemed to be contrary to its intended purpose. The manufacturer cannot be held liable for any resulting dama- ges. -
Page 4: Warranty / Identifi Cation
Warranty / Identifi cation joke Technology GmbH warrants the correct manufacture of every joke product which is deli- vered in accordance with the terms of contract and delivery. This warranty does not cover damages caused by normal wear and tear, incorrect handling, negligent use, the fi... -
Page 5: Purpose Of Use
Purpose of use The ENESKA mobile 3 and 4 mobile grinding system is used in tool making and mould building and in mechanical workshops for fi ne surface fi nishing. The set provides you maximum mobility during daily work. Well protected in the case, the grin- ding device can be taken anywhere. -
Page 6: Technical Data
Technical data ENESKA mobile 3 and ENESKA mobile 4 cordless grinder Speed 1000 - 40,000 rpm Period of use up to 10 hours Charging time 120 minutes • brushless direct-current (DC) motor • modern high-output 14.8 V lithium ion storage battery without memory eff ect •... - Page 7 1 - Motor socket of the control unit 2 - On/off switch 3 - Speed selector 4 - Rotation direction reversing switch 5 - Green indicator light Fig. 7.1 Control unit front view 1 - Charging socket for the power supply unit Fig.
- Page 8 Fig. 7.3 Changing the tool for the handpiece Motor overload protection The integrated electronics shut down the motor automatically in case of motor overload. The green motor light goes out. The motor is immediately ready for use again by operating the on/off switch (7.1.2).
-
Page 9: Care And Maintenance
• Motor cable is faulty; replace motor cable run. • Motor is faulty; send in to joke for repair • Collet on the rapid-chuck handpiece open; close collet Motor stops every • Storage battery faulty; replace battery... -
Page 10: Conformity Declaration
Technical documentation is completely available.The operating instructions belonging to it are in the language of the land of fabricants and user. Authorised for documentation: Kerstin Otto, joke Technology GmbH, Asselborner Weg 14-16, D-51429 Bergisch Gladbach Authorized signatory: Udo Fielenbach, joke Technology GmbH, Asselborner Weg 14-16, D-51429 Bergisch Gladbach... - Page 11 (see address above), by Fax, as a pdf fi le to my e-mail address ENESKA mobile 3 cordless grinder, for ENESKA 3 series handpieces Order no. 0 006 850 ENESKA mobile 4 cordless grinder, for ENESKA 4 series handpieces Order no.
- Page 12 Web www.joke.de Online-Shop www.joke-technology.de Order no. for operating manual: BA2072GB © Copyright joke Technology GmbH • February 2016 • Subject to changes due to technical progress, inaccuracies and printing errors • Reprinting, even in part, only subject to prior written consent.
