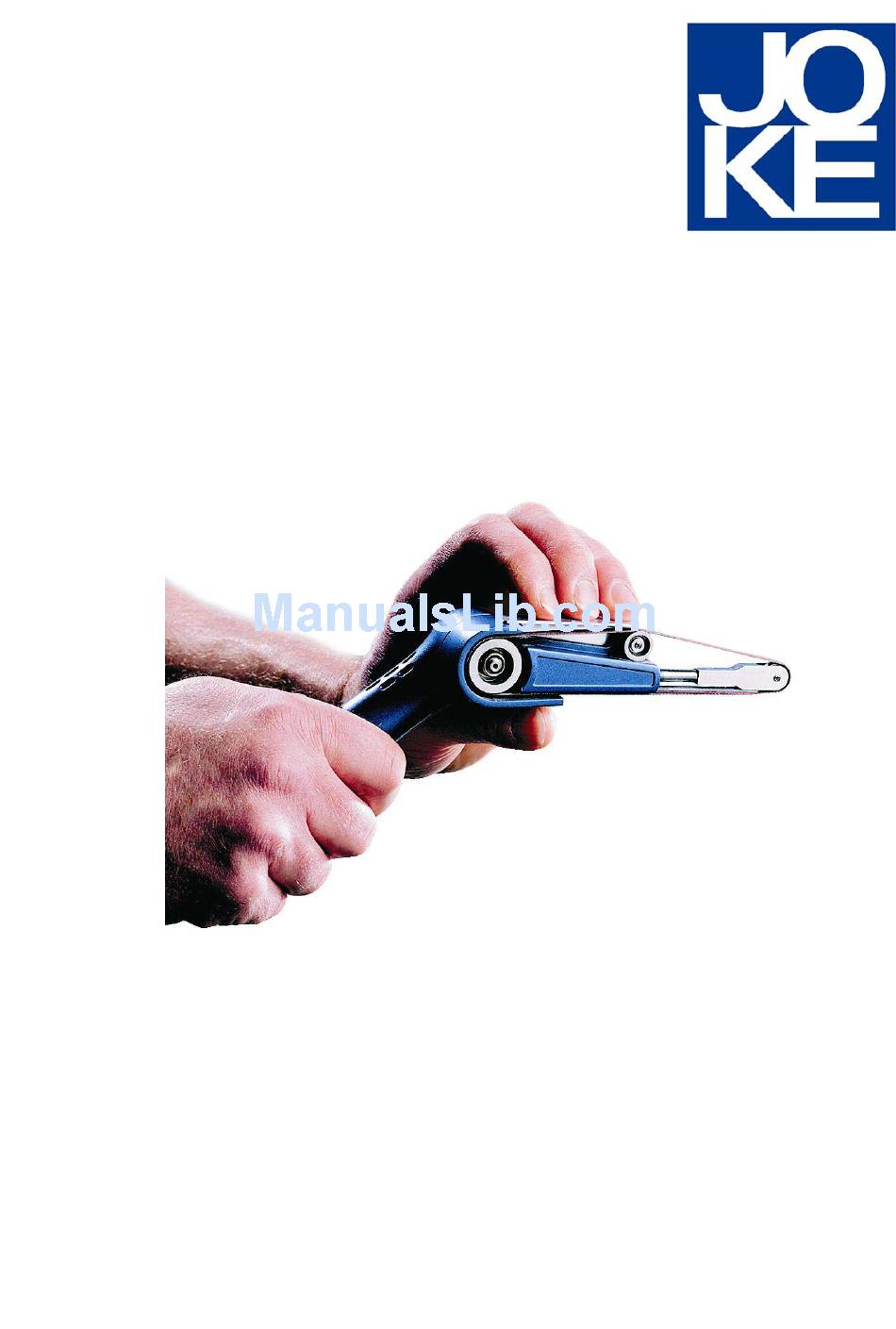

- Page 1 J-BS 400 Belt grinder Instruction Manual...
-
Page 2: Table Of Contents
List of contents 1List of contents................... Page 02 Tips on using the manual..............Page 03 Safety instructions ................Page 04 Warranty/Identification ..............Page 06 Operation/Maintenance/Care............Page 07 Telefax form ..................Page 13 J O KE I n s t r u c t i o n m a n u a l b e l t g r i n d e r J - B S 4 0 0 ®... -
Page 3: Tips On Using The Manual
Telephone +49 (0) 22 04 / 8 39 - 0 Telefax +49 (0) 22 04 / 8 39 - 86 www.joke.de INFORMATION! Spare parts lists and operating manuals for our products are to be found at www.joke.de J O KE I n s t r u c t i o n m a n u a l b e l t g r i n d e r J - B S 4 0 0 ®... -
Page 4: Safety Instructions
I M P O R T A N T ! Spare parts must meet the technical requirements specified by the manufacturer. This can only be guaranteed with original JOKE spare parts. J O KE I n s t r u c t i o n m a n u a l b e l t g r i n d e r J - B S 4 0 0... - Page 5 Safety instructions (8) Any work on/with the device may only be carried out by quali- fied, appropriately trained and authorised personnel. Pay atten- tion to minimum statutory age limits! C A U T I O N ! Wear safety goggles when working with thebelt grinder. (10) Personnel undergoing training or in a general apprenticeship should only be allowed to work with the machine under the constant supervi-...
-
Page 6: Warranty/Identification
Warranty/identification Joisten & Kettenbaum warrant the correct manufacture of every Joisten & Kettenbaum product which is delivered in accordance with the terms of contract and delivery. This warranty does not cover damages caused by normal wear and tear, incorrect handling, negligent use, the fitting of non-original spare parts, ina- dequate care and/or a failure to comply with this technical manual. -
Page 7: Operation/Maintenance/Care
Operation/maintenance/care Screwing the handpieces on to the micromotor I M P O R T A N T ! Firstly screw the handpiece carefully on to the motor by hand! If resistance is felt before the thread is screwed to the stop position, the drive shaft of the motor and the handpiece coupling do not interlock. - Page 8 Operation/maintenance/care Unscrewing the handpieces from the micromotor The handpieces are screw-fitted to the micromotor (with the exception of the DIPROFIL hand-filing machine). Screw the handpiece off by hand to release. Symbolic drawing loosen screw tight micromotor handpiece J O KE I n s t r u c t i o n m a n u a l b e l t g r i n d e r J - B S 4 0 0 ®...
- Page 9 Operation/maintenance/care Starting the belt grinder J-BS 400 The belt grinder is likewise connected to the micromotors, as with all other handpieces. Always work with protective goggles! V O R S I C H T ! Do not touch the grinding belt during work.
- Page 10 Operation/maintenance/care Changing the grinding belt Remove the grinding belt: (1) Pull the clamping lever in the direction indicated by the arrow (2) Remove the grinding belt from the drive wheel. Insert the grinding belt: (1) Place the grinding belt on the drive wheel. clamping lever (2) Pull the clamping lever in the direction indicated by the arrow.
- Page 11 Operation/maintenance/care Tighten the screw firmly! If the screw is not firmly tightened, the grind- ing belt holder may change position during work and cause injuries. J O KE I n s t r u c t i o n m a n u a l b e l t g r i n d e r J - B S 4 0 0 ®...
- Page 12 Operation/maintenance/care Examples of applications 1. Processing radii: In this case, the grinding belt runs in the direction indicated and grinds between the tensioning roller and support roller. 2. Processing surfaces: The grinding belt runs in the direction indicated and works with the area in which the belt is guided flat.
- Page 13 Operation/maintenance/care 3. Processing grooves: A minimum groove width of 6.5 mm must be present in this case. INFORMATION! Grinding belt dimensions and grit sizes can be found in the JOKE ® catalogue Maintenance The belt grinder is maintenance-free No oil must be applied, since the bearings of the device and the I M P O R T A N T ! motor are lubricated for life with grease.
-
Page 14: Telefax Form
Telefax form To the JOKE service department 0) 22 04 / 8 39 - 86 +49 ( Sender: Company Name Street Postcode/town or city Please send us the spares drawing and parts list for the following equipment: as a printout (see above for address) - Page 15 JOISTEN & KETTENBAUM GmbH & Co. KG Asselborner Weg 14 - 16 Technical D-51429 Bergisch Gladbach modifications Telephone: 022 04 / 8 39 - 0 reserved Telefax: 022 04 / 8 39 - 60 Internet: www.joke.de ® © JOKE 05/04 Email: info@joke.de...
