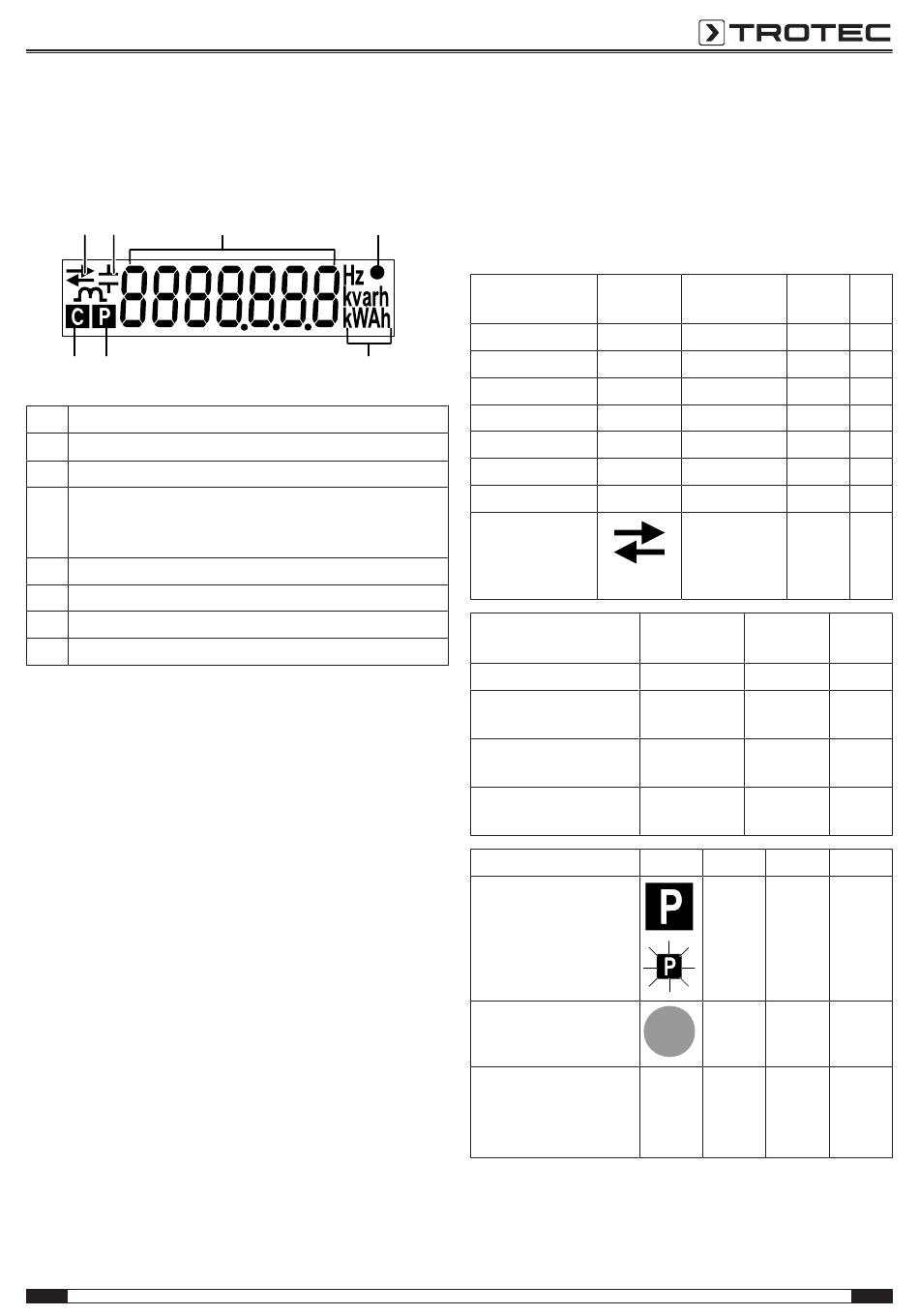

MID-compliant energy meter
You can measure your power consumption using the MID-
compliant energy meter.
32 33
38 37
No. Designation
32 Import → and export ← performance or energy value
33 Capacitive or inductive value
34 Main display. If Code XX is displayed: Corrupted
metrological parameters. Meter has become non-usable
and must be returned to the manufacturer immediately.
35 Status of active S0 output
36 Measuring unit display
37 Partial counter value (flashing = meter stopped)
38 Active communication
EN
34 35
36
Measurements
All functions or settings are controlled via the multifunction
button (16).
The ● symbol indicates a standard value, the ■ indicates a
bidirectional value.
All total counter values (kWh, kVAh, kvarh) can be assigned to
the S0 output.
Instantaneous
values
Voltage
Current
Power factor
Active power
Apparent power
Reactive power
Frequency
Power direction
Recorded data
Total active energy
Total ind. and cap.
apparent energy
Total ind. and cap.
reactive energy
Resettable partial
counter
Other information
Partial counter/ status
S0 output status
Metrological error
display. Non-usable
meter, return to
manufacturer
multiple socket outlet PV4-MID-PS
Icon Measuring
unit
V V
I A
PF -
P kW
S kVA
Q kvar
f Hz
-
+/-
Measuring Display
unit
kWh
kVAh
kvarh
kWh, KVAh,
kvarh
Icon Status Display Port
start/
stop
active
Code XX -
Display Port
● ●
■ ■
■ ■
■ ■
■ ■
■ ■
● ●
● ●
Port
■ ■
■ ■
■ ■
■ ■
● ●
●
● ●
