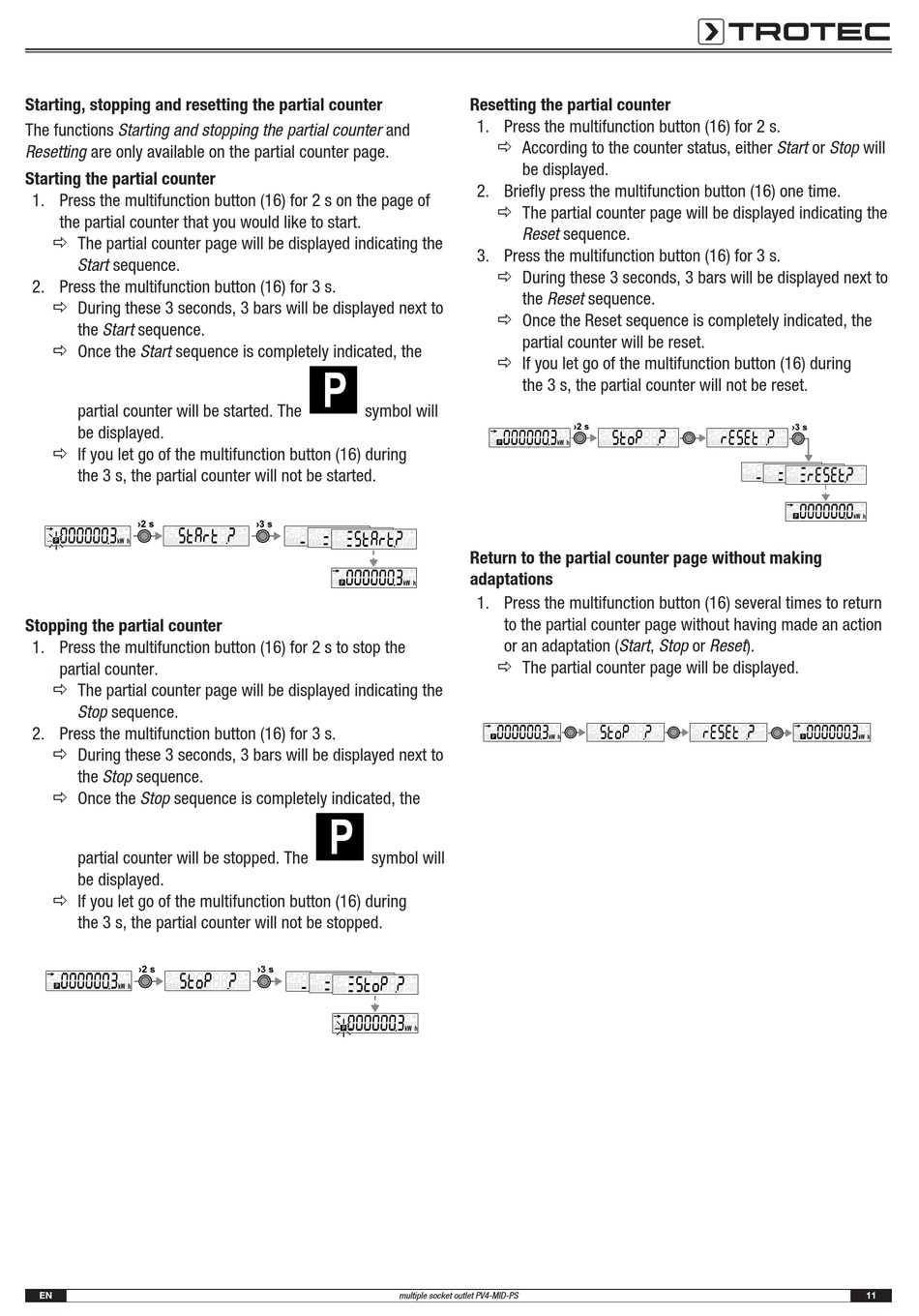

Trotec PV4-MID-PS Operating Manual page 11

Starting, stopping and resetting the partial counter
The functions Starting and stopping the partial counter and
Resetting are only available on the partial counter page.
Starting the partial counter
1. Press the multifunction button (16) for 2 s on the page of
the partial counter that you would like to start.
ð The partial counter page will be displayed indicating the
Start sequence.
2. Press the multifunction button (16) for 3 s.
ð During these 3 seconds, 3 bars will be displayed next to
the Start sequence.
ð Once the Start sequence is completely indicated, the
partial counter will be started. The
be displayed.
ð If you let go of the multifunction button (16) during
the 3 s, the partial counter will not be started.
Stopping the partial counter
1. Press the multifunction button (16) for 2 s to stop the
partial counter.
ð The partial counter page will be displayed indicating the
Stop sequence.
2. Press the multifunction button (16) for 3 s.
ð During these 3 seconds, 3 bars will be displayed next to
the Stop sequence.
ð Once the Stop sequence is completely indicated, the
partial counter will be stopped. The
be displayed.
ð If you let go of the multifunction button (16) during
the 3 s, the partial counter will not be stopped.
EN
Resetting the partial counter
1. Press the multifunction button (16) for 2 s.
ð According to the counter status, either Start or Stop will
be displayed.
2. Briefly press the multifunction button (16) one time.
ð The partial counter page will be displayed indicating the
Reset sequence.
3. Press the multifunction button (16) for 3 s.
ð During these 3 seconds, 3 bars will be displayed next to
the Reset sequence.
ð Once the Reset sequence is completely indicated, the
partial counter will be reset.
ð If you let go of the multifunction button (16) during
the 3 s, the partial counter will not be reset.
symbol will
Return to the partial counter page without making
adaptations
1. Press the multifunction button (16) several times to return
to the partial counter page without having made an action
or an adaptation (Start, Stop or Reset).
ð The partial counter page will be displayed.
symbol will
multiple socket outlet PV4-MID-PS 11
