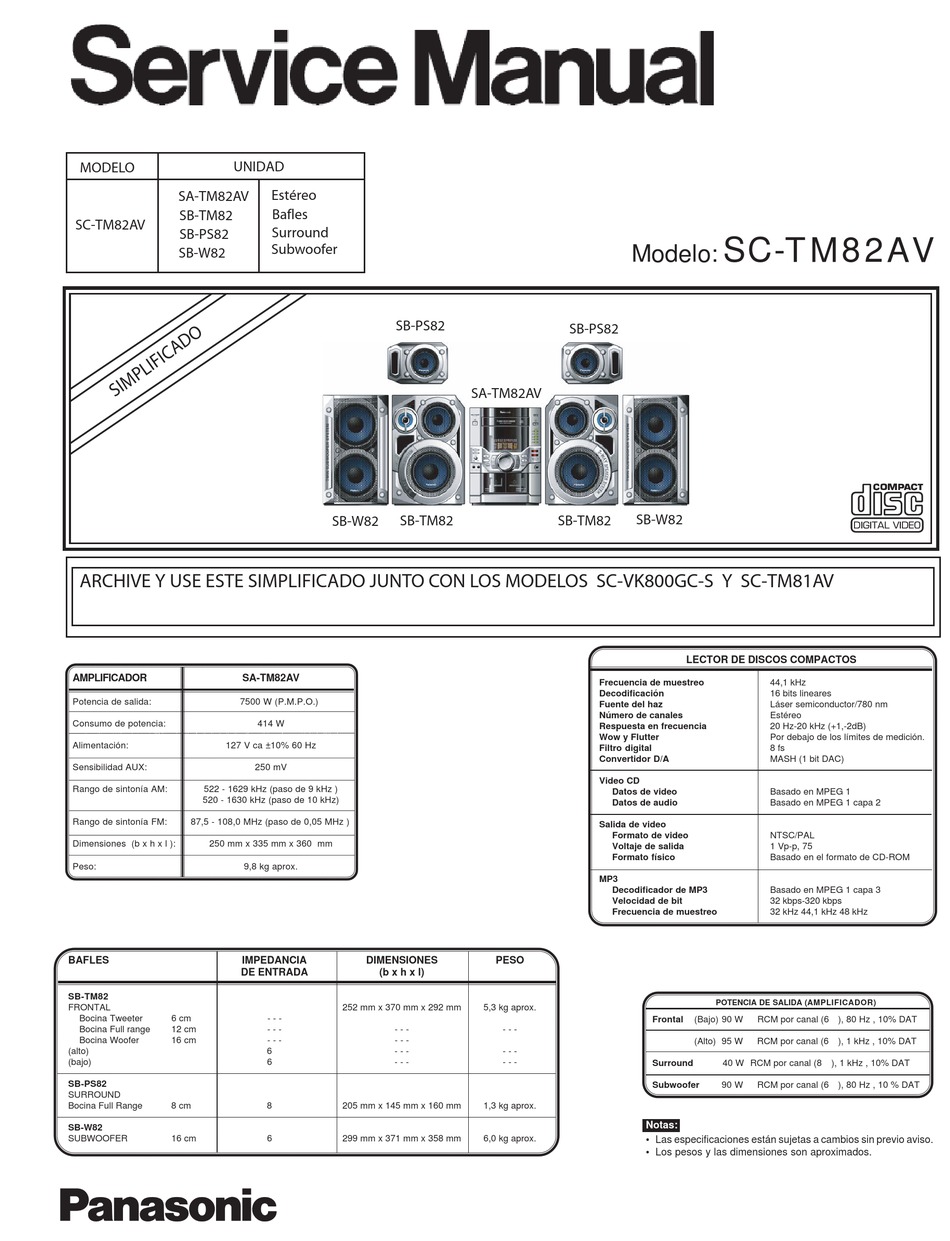

Page 3
Part No. Description Part No. Description RKFX0093-K CASS HOLDER (L) RGKM0015 CONTROL PANEL RKFX0094-K CASS HOLDER (R) RGLX0069-Q POWER LIGHT CHIP RYKM0033-2 TOP CABINET L6FALEFH0018 FAN UNIT RKWX0210A-V FL WINDOW RYPM0174 FRONT PANEL UNIT RYFX0128-S CASS LID (R) RGRM0015A-1 REAR PANEL RYFX0127-S CASS LID (L) RGUX0527-S...
Page 4
SB-PS82 1 Connection of the Speaker Cables 2 Connection of Wiring Diagram • Be sure to connect speaker cables before connecting the AC power supply cord. • The load impedance of any speaker used with this unit must be 8˜. •...
Page 5
SB-PS82 3 Cabinet Parts Location Ref. No. Part No. Part Name & Description RKPX0056-LM REAR CABINET ASS’Y RKA0072-KJ LEG RUBBER RYPM0169 FRONT PANEL ASS’Y R RMR1265-LM COVER XTBS3+8JFZ1-A SCREW XTB4+10G-A SCREW EAST10P25D6 SPEAKER...
Page 6
SB-TM82 1 Connection of the 2 Connection of the Wiring Diagram Speaker Cables • Be sure to connect speaker cables before connecting the AC power supply cord. • The load impedance of any speaker used with this unit must be 6˜/12˜. •...
Page 7
SB-TM82 Ref. No. Part No. Part Name & Description RKPM0084 SPK CABINET ASS’Y L RKPM0085 SPK CABINET ASS’Y R RKA0072-KJ RJH9210 TERMINAL PLATE RYPM0166 FRONT PANEL ASS’Y L RYPM0167 FRONT PANEL ASS’Y R RGKX0115-SJ ORNAMENT CAP RMG0520-H CATCHING HOLDER RMQX0076 HIMELON (355 x 8 x 0.5) RMQX0077 HIMELON (320 x 8 x 0.5)
Page 8
SB-W82A 1 Connection of the 2 Connection of the Wiring Diagram Speaker Cables • Be sure to connect speaker cables before connecting the AC power supply cord. • The load impedance of any speaker used with this unit must be 6˜. •...
Page 9
SB-PS82A 3 Cabinet Parts Location Ref. No. Part No. Part Name & Description RKPX0056-LM REAR CABINET ASS’Y RKA0072-KJ LEG RUBBER RYPM0169 FRONT PANEL ASS’Y R RMR1265-LM COVER XTBS3+8JFZ1-A SCREW XTB4+10G-A SCREW EAST10P25D6 SPEAKER...
Page 10
SB-W82A Ref. Part No. Part Name & Description RKPM0088 SPK CABINET ASS’Y RYPM0168 FRONT PANEL ASS’Y RKA0072-KJ LEG RUBBER RMG0520-H RUBBER CATCH RGKX0115-SJ ORNAMENT CAP 436-1704301A WOOFER EVA PACKING XTB4+12G SCREW (FRONT PANEL) XTB4+16AFZ’A SCREW (BLACK) XTB4+10G SCREW (WOOFER) RMGQX0073 HIMELON RMGQX0074 HIMELON...
Page 11
Ref. No Part No Part Name Description ELECTRICAL PART LIST CAPACITOR Ref. No Part No Part Name Description PRINTED CIRCUIT BOARD ECBT1H5R6KC5 CAPACITOR CERAMICO ECBT1H180JC5 CAPACITOR C1001 F1H1H103A753 CHIP CAPACITOR C1002 ECEA1HKN2R2B CAPACITOR RAIM02704A CONJ. DECK TM70AV C1003 ECQP1152JZT CAPACITOR RAIM02700A CONJUNTO TRANSF TM70AV C1006...
