Summary of Contents for auna multimedia Big Dazzle

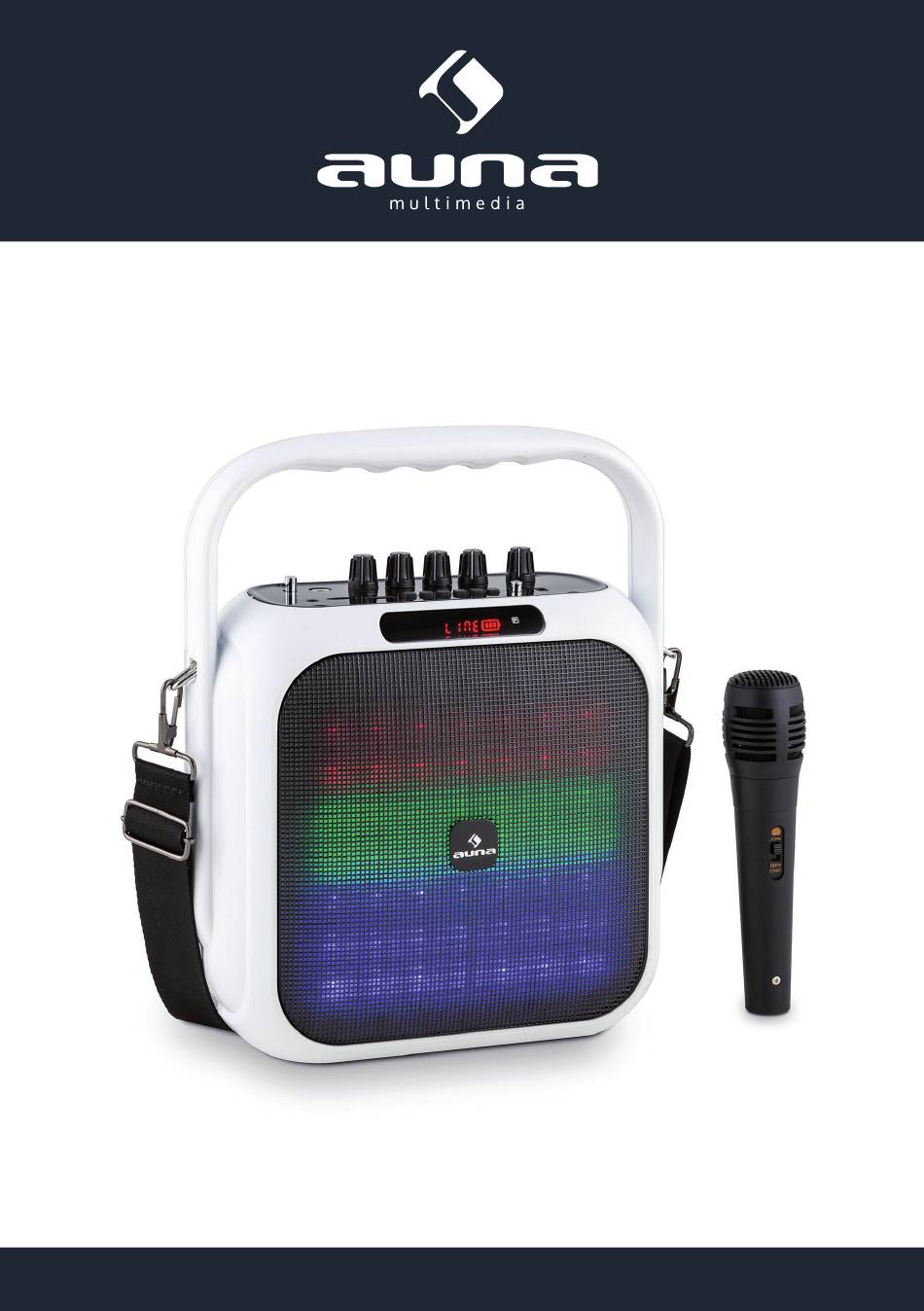

  • Page 1 Big Dazzle 10029313 10029314 www.auna-multimedia.com...
  • Page 2 Sehr geehrter Kunde, zunächst möchten wir Ihnen zum Erwerb Ihres Gerätes gratulieren. Bitte lesen Sie die folgenden Anschluss- und Anwendungshinweise sorgfältig durch und befolgen Sie diese um möglichen technischen Schäden vorzubeugen. Sicherheitshinweise • Diese Bedienungsanleitung dient dazu, Sie mit der Funktionsweise dieses Produktes vertraut zu ma- chen.
  • Page 3: Troubleshooting

    Technische Daten und Hinweise Artikelnummer 10029313, 10029314 Netzteil: AC 100-240V ~ 50-60Hz Stromversorgung Gerät: 5V DC, interner Li-Ion-Akku Frequenzgang 20Hz - 20kHz SNR ≥71dB Lieferumfang Gerät, Mikrofon, Audiokabel, Bedienungsanleitung Hinweise zum Aufladen des Geräts • Nutzen Sie zum Aufladen des integrierten Li-Ion-Akkus einen passenden Ladeadapter (DC 9V) und schließen Sie diesen an einer gewöhnlichen Haushaltssteckdose (100-240V AC) an.
  • Page 4 Bedienelemente MIC PRIORITY USB-Anschluss MIC Eingang INPUT (Eingangswahl) Beleuchtungsmodus wählen (drücken) VIC VOL (Mikrofon Lautstärke) Beleuchtung abschalten (gedrückt halten) ECHO (Hall-Effekt) RECORD / PLAY RECORD BASS / CH- TREBLE / Scan VOL+/- / CH+ Audio Eingang Ein-/Ausschalten SD-Kartenslot DC 9V Anschluss...
  • Page 5 Bedienelemente 1 MUTE (Stummschaltung) 2 Ziffernfeld Beleuchtungsmodus wählen (drücken) Beleuchtung abschalten (gedrückt halten) 4 MODE (Eingangswahl) 5 USB 7 EQ (Klangregelung) 8 VOL- 9 REP 11 REC (Aufnahme) 12 VOL+ 13 REPEAT (Wiederholfunktion)
  • Page 6: Anschluss-Hinweise

    Anschluss-Hinweise • Schließen Sie das Gerät nach obigem Schema an Netzstrom und/oder externe Audioquellen an. • USB-Sticks und SD-Karten sollten im FAT32-Dateisystem formatiert sein. Die Abspielsequenz ist Al- phanumerisch („01..“, „02..“, „10..“, „A..“, „B..“, usw.). • Kopieren Sie Musikdateien, die Sie mit dem Gerät abspielen möchten, in den Root-Ordner des Spei- chermediums.
  • Page 7 Funktionen FM-Radio Drücken Sie mehrfach INPUT, um den Radio-Modus zu wählen. Drücken Sie SCAN, um einen automatischen Sendersuchlauf zu starten und wählen Sie dann mit CH+/- den gewünschten Sender aus. BT-Funktion • Drücken Sie mehrfach INPUT, um den BT-Modus auszuwählen. •...
  • Page 8: Hinweise Zur Entsorgung

    Hinweise zur Entsorgung Elektroaltgeräte Befindet sich die diese Abbildung (durchgestrichene Mülltonne auf Rädern) auf dem Pro- dukt, gilt die Europäische Richtlinie 2002/96/EG. Diese Produkte dürfen nicht mit dem normalen Hausmüll entsorgt werden. Informieren Sie sich über die örtlichen Regelungen zur getrennten Sammlung elektrischer und elektronischer Gerätschaften. Richten Sie sich nach den örtlichen Regelungen und entsorgen Sie Altgeräte nicht über den Hausmüll.
  • Page 9: Important Safety Advice

    Dear Customer, Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid damaging the item. We do not cover any damages that may artise from improper use of the item or the disregard of the safety instructions. Important Safety Advice •...
  • Page 10 Technical Data & Advice Article # 10029313, 10029314 Power adapter: AC 100-240V ~ 50-60Hz Power supply Device: 5V DC, internal Li-Ion-Akku Frequency response 20Hz - 20kHz SNR ≥71dB Scope of delivery Gerät, Mikrofon, Audiokabel, Bedienungsanleitung Charging the Device • Connect a matched power adapter to AC100V - AC240V. Charging time is approximately 4 to 8 hours. Once fully charged unplug the power supply as leaving a full battery on charge may cause damage to the battery.
  • Page 11 Controls MIC PRIORITY USB slot MIC Input INPUT (press for mode selection) Press to change light mode; MIC VOL Press and hold to switch the light off ECHO RECORD / PLAY RECORD BASS / CH- TREBLE / SCAN VOL+/- / CH+ Audio Input Power on/off SD slot...
  • Page 12 Controls Remote Control: 1 MUTE 2 Num pad (for direct title selection) 3 Press to change light mode; Press and hold to switch the light off 4 MODE (mode selection) 5 USB 7 EQ (toggle preset EQ) 8 VOL- 9 REP 11 REC 12 VOL+ 13 REPEAT...
  • Page 13 Connection Advice • Connect the device to mains power as well as to external audio sources according to the depiction above. • USB drives and SD cards should be formatted in the FAT32 file system. The playback sequence is alphanumerical („01..“, „02..“, „10..“, „A..“, „B..“, ... ). •...
  • Page 14: Overall Functions

    Overall Functions FM Radio Press INPUT repeatedly to select the FM radio mode. Press SCAN to set off an automatic station scan. Use CH+/- to select any desired station. BT Operation • Press INPUT repeatedly to select BT mode. • Activate BT on your mobile device and connect to „M+AUDIO“.
  • Page 15: Environment Concerns

    Environment Concerns According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.
