Amperes iPX5101 Instruction Manual

Ethernet paging server
Hide thumbs Also See for iPX5101:

Advertisement

Quick Links

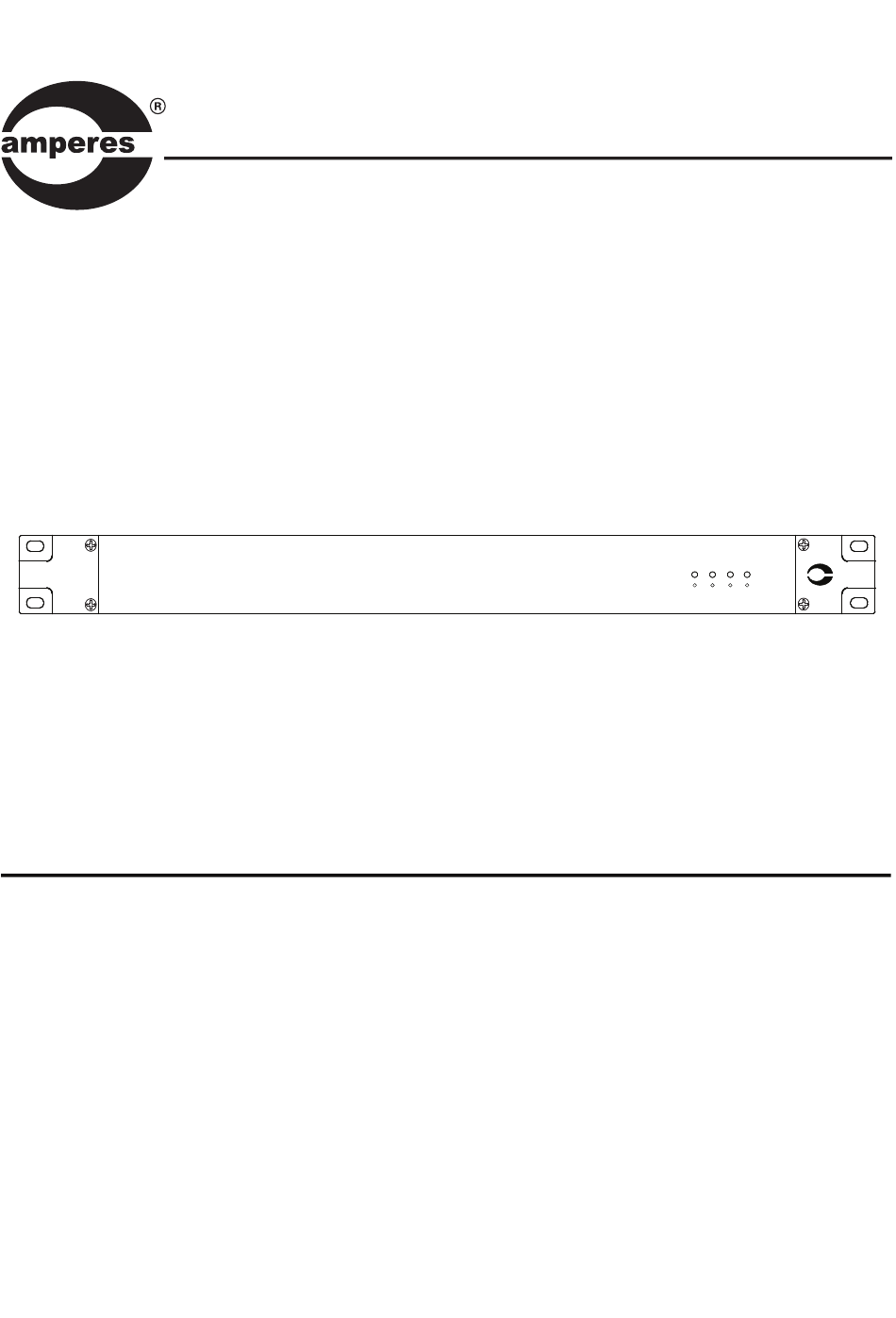

INSTRUCTION MANUAL
iPX5101
Ethernet Paging Server
iPX 5101
amperes
ACT STATUS
REM
POWER
ETHERNET PAGING SERVER
Thank you
for choosing another quality product from Amperes Electronics.
iPX5101 is an upgraded version of Ethernet Paging Controller, enhanced with superb features such as larger IP Client
connectivity, Multicast transmission for speedier broadcast of paging signal and also simplified setting works.
It functions as a traffic controller for all paging clients ( iPX5151 ). Every activity from Clients shall be monitored by
iPX5101 and would determine the intended routing to be allowed or otherwise, considering the priority level, traffic condi-
tion and the zone configuration.
With the growing demand of IP Paging System, Amperes IP related products such as iPX5101 shall be the great tool for
coming future. Do read through the manual in order the tap the many advantages that Amperes IP system has to offer.
