Beck com.tom BASIC 5.2S Startup Manual

com.tom

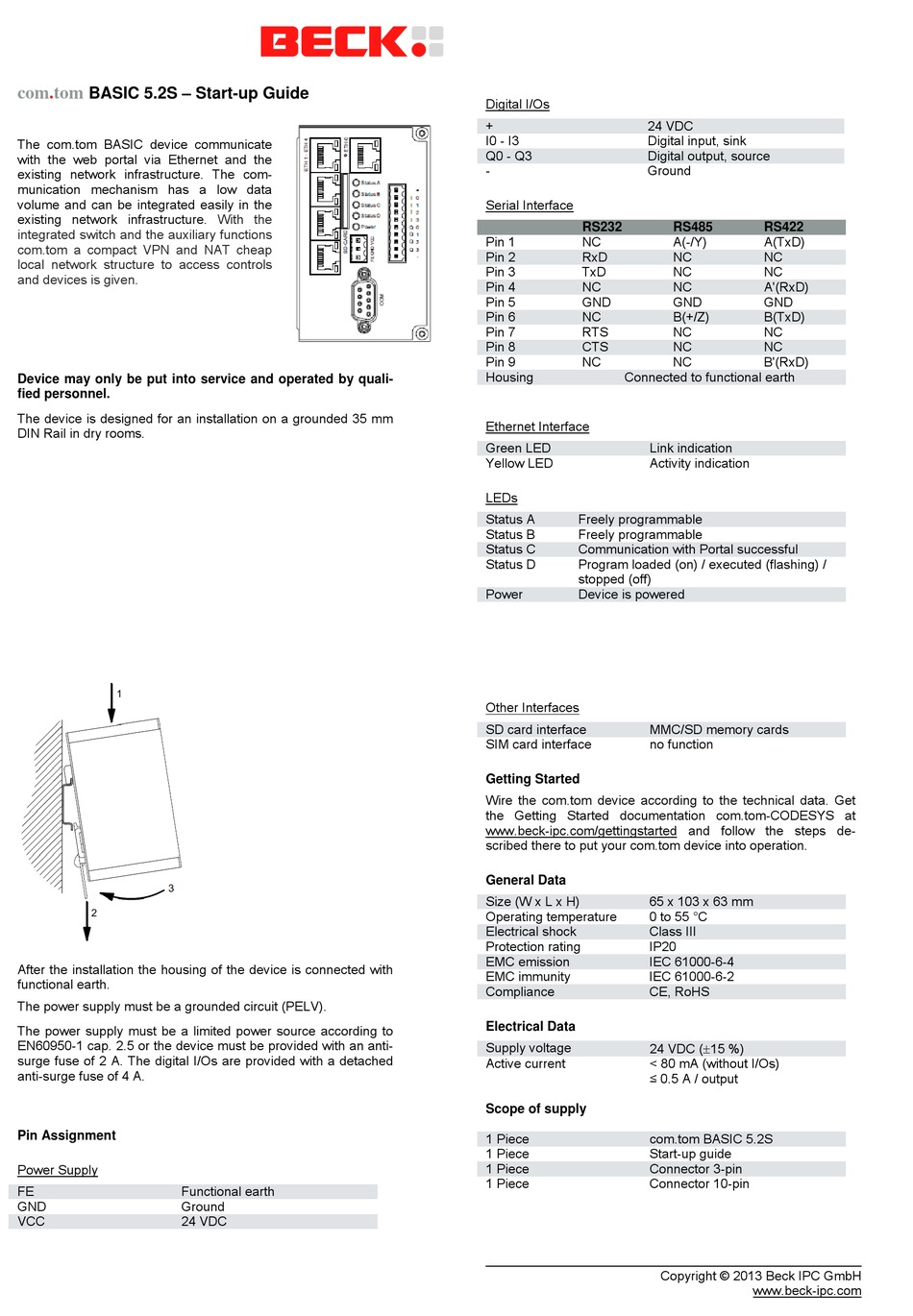

BASIC 5.2S – Start-up Guide
The com.tom BASIC device communicate
with the web portal via Ethernet and the
existing network infrastructure. The com-
munication mechanism has a low data
volume and can be integrated easily in the
existing network infrastructure.
integrated switch and the auxiliary functions
com.tom a compact VPN and NAT cheap
local network structure to access controls
and devices is given.
Device may only be put into service and operated by quali-
fied personnel.
The device is designed for an installation on a grounded 35 mm
DIN Rail in dry rooms.
After the installation the housing of the device is connected with
functional earth.
The power supply must be a grounded circuit (PELV).
The power supply must be a limited power source according to
EN60950-1 cap. 2.5 or the device must be provided with an anti-
surge fuse of 2 A. The digital I/Os are provided with a detached
anti-surge fuse of 4 A.

Pin Assignment

Power Supply

FE Functional earth
GND Ground
VCC 24 VDC
With the

Digital I/Os

+ 24 VDC
I0 - I3 Digital input, sink
Q0 - Q3 Digital output, source
- Ground

Serial Interface

RS232
Pin 1 NC
Pin 2 RxD
Pin 3 TxD
Pin 4 NC
Pin 5 GND
Pin 6 NC
Pin 7 RTS
Pin 8 CTS
Pin 9 NC

Housing

Connected to functional earth

Ethernet Interface

Green LED Link indication
Yellow LED Activity indication

LEDs

Status A Freely programmable
Status B Freely programmable
Status C Communication with Portal successful
Status D Program loaded (on) / executed (flashing) /
stopped (off)
Power Device is powered

Other Interfaces

SD card interface MMC/SD memory cards
SIM card interface no function

Getting Started

Wire the com.tom device according to the technical data. Get
the Getting Started documentation com.tom-CODESYS at
www.beck-ipc.com/gettingstarted and follow the steps de-
scribed there to put your com.tom device into operation.

General Data

Size (W x L x H) 65 x 103 x 63 mm
Operating temperature 0 to 55 °C
Electrical shock Class III
Protection rating IP20
EMC emission IEC 61000-6-4
EMC immunity IEC 61000-6-2
Compliance CE, RoHS

Electrical Data

Supply voltage
24 VDC (15 %)
Active current < 80 mA (without I/Os)
≤ 0.5 A / output

Scope of supply

1 Piece com.tom BASIC 5.2S
1 Piece Start-up guide
1 Piece Connector 3-pin
1 Piece Connector 10-pin
RS485 RS422
A(-/Y) A(TxD)
NC NC
NC NC
NC A'(RxD)
GND GND
B(+/Z) B(TxD)
NC NC
NC NC
NC B'(RxD)
Copyright © 2013 Beck IPC GmbH
www.beck-ipc.com
