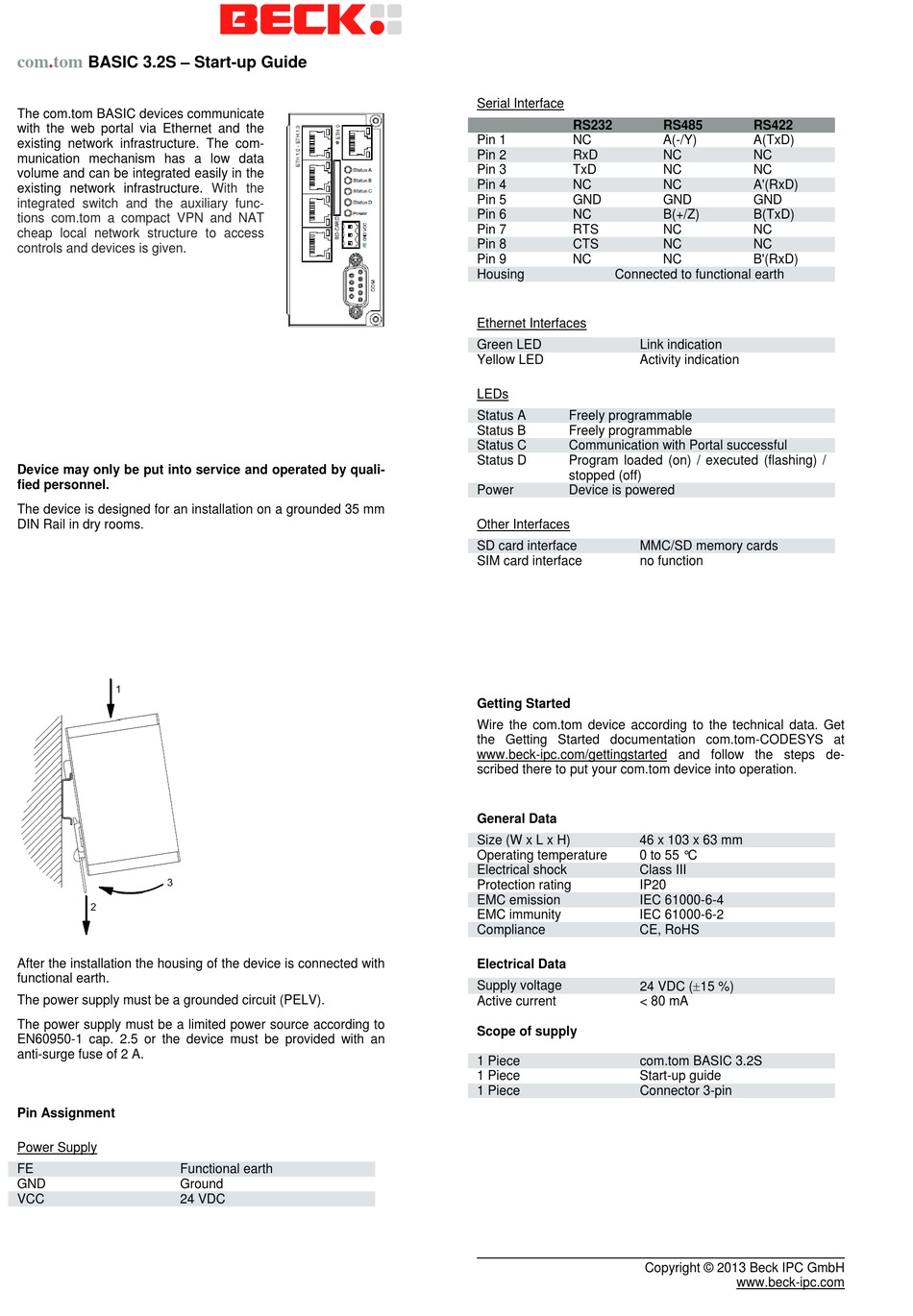

Beck com.tom BASIC 3.2S Startup Manual

com.tom
BASIC 3.2S – Start-up Guide
The com.tom BASIC devices communicate
with the web portal via Ethernet and the
existing network infrastructure. The com-
munication mechanism has a low data
volume and can be integrated easily in the
existing network infrastructure.
integrated switch and the auxiliary func-
tions com.tom a compact VPN and NAT
cheap local network structure to access
controls and devices is given.
Device may only be put into service and operated by quali-
fied personnel.
The device is designed for an installation on a grounded 35 mm
DIN Rail in dry rooms.
After the installation the housing of the device is connected with
functional earth.
The power supply must be a grounded circuit (PELV).
The power supply must be a limited power source according to
EN60950-1 cap. 2.5 or the device must be provided with an
anti-surge fuse of 2 A.
Pin Assignment
Power Supply
FE Functional earth
GND Ground
VCC 24 VDC
With the
Serial Interface
RS232
Pin 1 NC
Pin 2 RxD
Pin 3 TxD
Pin 4 NC
Pin 5 GND
Pin 6 NC
Pin 7 RTS
Pin 8 CTS
Pin 9 NC
Housing Connected to functional earth
Ethernet Interfaces
Green LED Link indication
Yellow LED Activity indication
LEDs
Status A Freely programmable
Status B Freely programmable
Status C Communication with Portal successful
Status D Program loaded (on) / executed (flashing) /
stopped (off)
Power Device is powered
Other Interfaces
SD card interface MMC/SD memory cards
SIM card interface no function
Getting Started
Wire the com.tom device according to the technical data. Get
the Getting Started documentation com.tom-CODESYS at
www.beck-ipc.com/gettingstarted and follow the steps de-
scribed there to put your com.tom device into operation.
General Data
Size (W x L x H) 46 x 103 x 63 mm
Operating temperature 0 to 55 °C
Electrical shock Class III
Protection rating IP20
EMC emission IEC 61000-6-4
EMC immunity IEC 61000-6-2
Compliance CE, RoHS
Electrical Data
Supply voltage
24 VDC (15 %)
Active current < 80 mA
Scope of supply
1 Piece com.tom BASIC 3.2S
1 Piece Start-up guide
1 Piece Connector 3-pin
Copyright © 2013 Beck IPC GmbH
RS485 RS422
A(-/Y) A(TxD)
NC NC
NC NC
NC A'(RxD)
GND GND
B(+/Z) B(TxD)
NC NC
NC NC
NC B'(RxD)
www.beck-ipc.com
