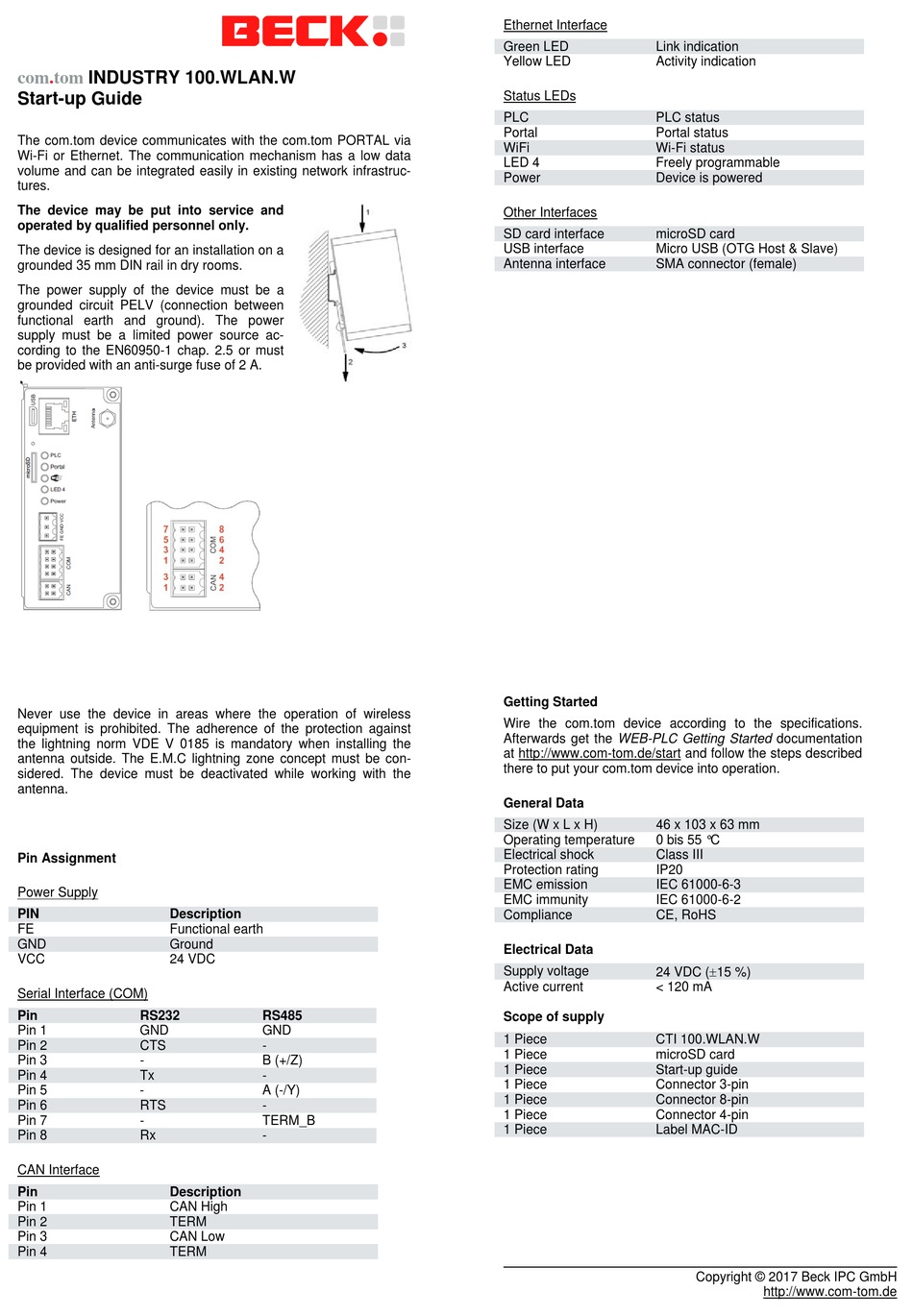

Beck com.tom INDUSTRY 100.WLAN.W Startup Manual

INDUSTRY 100.WLAN.W
com.tom
Start-up Guide
The com.tom device communicates with the com.tom PORTAL via
Wi-Fi or Ethernet. The communication mechanism has a low data
volume and can be integrated easily in existing network infrastruc-
tures.
The device may be put into service and
operated by qualified personnel only.
The device is designed for an installation on a
grounded 35 mm DIN rail in dry rooms.
The power supply of the device must be a
grounded circuit PELV (connection between
functional earth and ground). The power
supply must be a limited power source ac-
cording to the EN60950-1 chap. 2.5 or must
be provided with an anti-surge fuse of 2 A.
Never use the device in areas where the operation of wireless
equipment is prohibited. The adherence of the protection against
the lightning norm VDE V 0185 is mandatory when installing the
antenna outside. The E.M.C lightning zone concept must be con-
sidered. The device must be deactivated while working with the
antenna.
Pin Assignment
Power Supply
PIN Description
FE Functional earth
GND Ground
VCC 24 VDC
Serial Interface (COM)
Pin RS232
Pin 1 GND
Pin 2 CTS
Pin 3 -
Pin 4 Tx
Pin 5 -
Pin 6 RTS
Pin 7 -
Pin 8 Rx
CAN Interface
Pin Description
Pin 1 CAN High
Pin 2 TERM
Pin 3 CAN Low
Pin 4 TERM
RS485
GND
-
B (+/Z)
-
A (-/Y)
-
TERM_B
-
Ethernet Interface
Green LED Link indication
Yellow LED Activity indication
Status LEDs
PLC PLC status
Portal Portal status
WiFi Wi-Fi status
LED 4 Freely programmable
Power Device is powered
Other Interfaces
SD card interface microSD card
USB interface Micro USB (OTG Host & Slave)
Antenna interface SMA connector (female)
Getting Started
Wire the com.tom device according to the specifications.
Afterwards get the WEB-PLC Getting Started documentation
at http://www.com-tom.de/start and follow the steps described
there to put your com.tom device into operation.
General Data
Size (W x L x H) 46 x 103 x 63 mm
Operating temperature 0 bis 55 °C
Electrical shock Class III
Protection rating IP20
EMC emission IEC 61000-6-3
EMC immunity IEC 61000-6-2
Compliance CE, RoHS
Electrical Data
Supply voltage
24 VDC (15 %)
Active current < 120 mA
Scope of supply
1 Piece CTI 100.WLAN.W
1 Piece microSD card
1 Piece Start-up guide
1 Piece Connector 3-pin
1 Piece Connector 8-pin
1 Piece Connector 4-pin
1 Piece Label MAC-ID
Copyright © 2017 Beck IPC GmbH
http://www.com-tom.de
