DHP Aiden 3273408 Manual

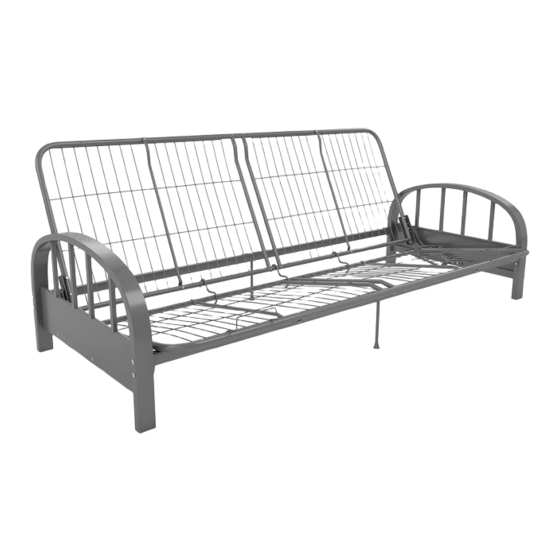

Metal futon frame silver
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

Enlarged version
TM
Weight Limit: 600 Lb / 272 Kg
E.L. - 2016-12-26
© 2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
3273408
Aiden
Metal Futon Frame
Lot Number
B34327340800 - 10125-M
Silver
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aiden 3273408 and is the answer not in the manual?

Questions and answers

Robert
August 1, 2025

Is it possible to get replacement parts for the Aiden metal frame? (My daughter lost parts or threw them away after trying to assemble)

0

Related Manuals for DHP Aiden 3273408

Summary of Contents for DHP Aiden 3273408

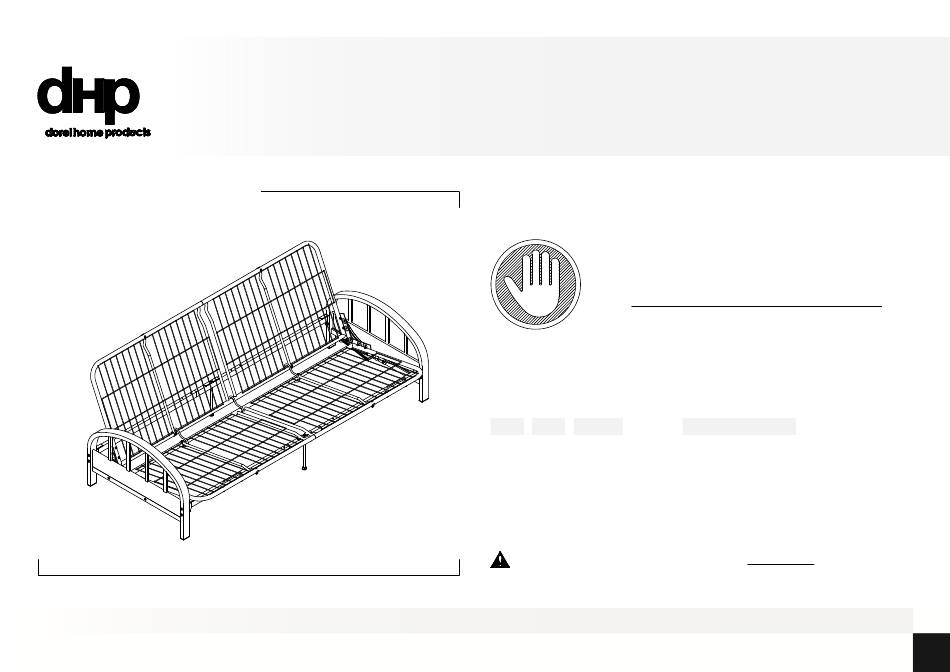

  • Page 1 Metal Futon Frame Silver Weight Limit: 600 Lb / 272 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and ● Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of ●...
  • Page 3 B34327340800...
  • Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Stretcher Connector Before you throw the package, please use the Middle Leg Stretcher T619620 T612000 T619610 T611920 T611950 Check Box to identify the parts and ensure that you have all the parts needed for the assembly.
  • Page 5 Hardware Pack Hardware Pack #: TFF4177SILS-01 1/4" X 18 5/16'' 1/4" X 3/4" 1/4" X 1 1/16'' 1/4" X 1 5/16'' X 14 5/16" x 2 7/16'' #8 X 9/16'' X 20 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1   Attach L to A with   Attach R to B with The top of Mechanisms (L) & (R) may look different due to the movable joints. Please determine the orientation based on their bottom sides. B34327340800...
  • Page 7 Step 2  Insert H into G x 2 with Repeat the same actions to join another Rail. B34327340800...
  • Page 8 Step 3  Attach D X 2 to H X 2 with B34327340800...
  • Page 9 Step 4 Attach sub-assembly G/H x 2 from STEP 3   to A and B with  Attach to G and H in the locations shown. B34327340800...

  • Page 10: Seat Frame

    Step 5  5.1 Join panel O & P with E and   5.2 Attach Q to O & P with SEAT FRAME! B34327340800...

  • Page 11: Back Frame

    Step 6  6.1 Join panel O & P with E and  6.2 Attach one end of Q to O & P with  6.3 Attach the other end of Q to O & P with ⓫ ⓬ BACK FRAME! B34327340800...
  • Page 12 Step 7   Attach O to L then P to R with SEAT FRAME! B34327340800...
  • Page 13 Step 8 Lift the Seat Frame to the Position shown. B34327340800...
  • Page 14 Step 9   Attach O to R then P to L with BACK FRAME! B34327340800...
  • Page 15 Step 10 Hook O with P using T X 3. B34327340800...
  • Page 16 Step 11 Attach S X 2 to O & P on the seat frame,  with as illustrated. B34327340800...
  • Page 17 Step 12 You can switch the status of your futon as shown. B34327340800...

  • Page 18: Helpful Hints

    ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location. ● Your DHP furniture can be disassembled and reassembled to move. ● Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement.
  • Page 19 Garantía Gracias por su compra DHP! DHP garantiza que este producto está libre de defectos de material y de fabricación, comprometiéndose a corregirlos en caso de ser hallados. Esta garantía es valida por un año a partir de la fecha de compra original. Esta se limita únicamente a la Registra tu producto y participa para ganar! reparación o reemplazo de partes defectuosas (no incluye la mano de obra).
  • Page 20 Lea antes de comenzar a ensamblar Partes ● Llame a nuestro número gratuito si necesita asistencia. Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home ● Trabaje en un área espaciosa y cerca de donde su producto será utilizado, preferiblemente sobre una alfombra o utilice el cartón del empaque para proteger su piso y su producto.

  • Page 21: Consejos Útiles

     Inserte H con G X 2 usando ● Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de Repita el mismo procedimiento para ensamblar el otro riel. mudanza. Paso 3 ●...

  • Page 22: Garantie

    Merci d'avoir acheté un produit de DHP ! DHP garantit que ce produit est exempt de tout vice de matériaux et de fabrication et s'engage à remédier à un tel défaut. Cette garantie couvre un an à compter de la Enregistrez votre produit et date d'achat originale.

  • Page 23: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage Pièces ● Si vous avez besoin d'aide, appelez notre service à la clientèle sans frais. Pièces de rechange, visitez www.dhpfurniture/fre/support-home ● Travailler dans un endroit spacieux et près du lieu où l'unité sera utilisée, préférablement sur un tapis, ou sur un morceau de l'emballage pour protéger le plancher et le produit.

  • Page 24: Conseils Utiles

     Insérer H à G X 2 avec ● Votre mobilier DHP peut être démonté et reassemblé pour faciliter les Répéter le procedure pour assembler l'autre Rail. déménagements. Étape 3 ●...
