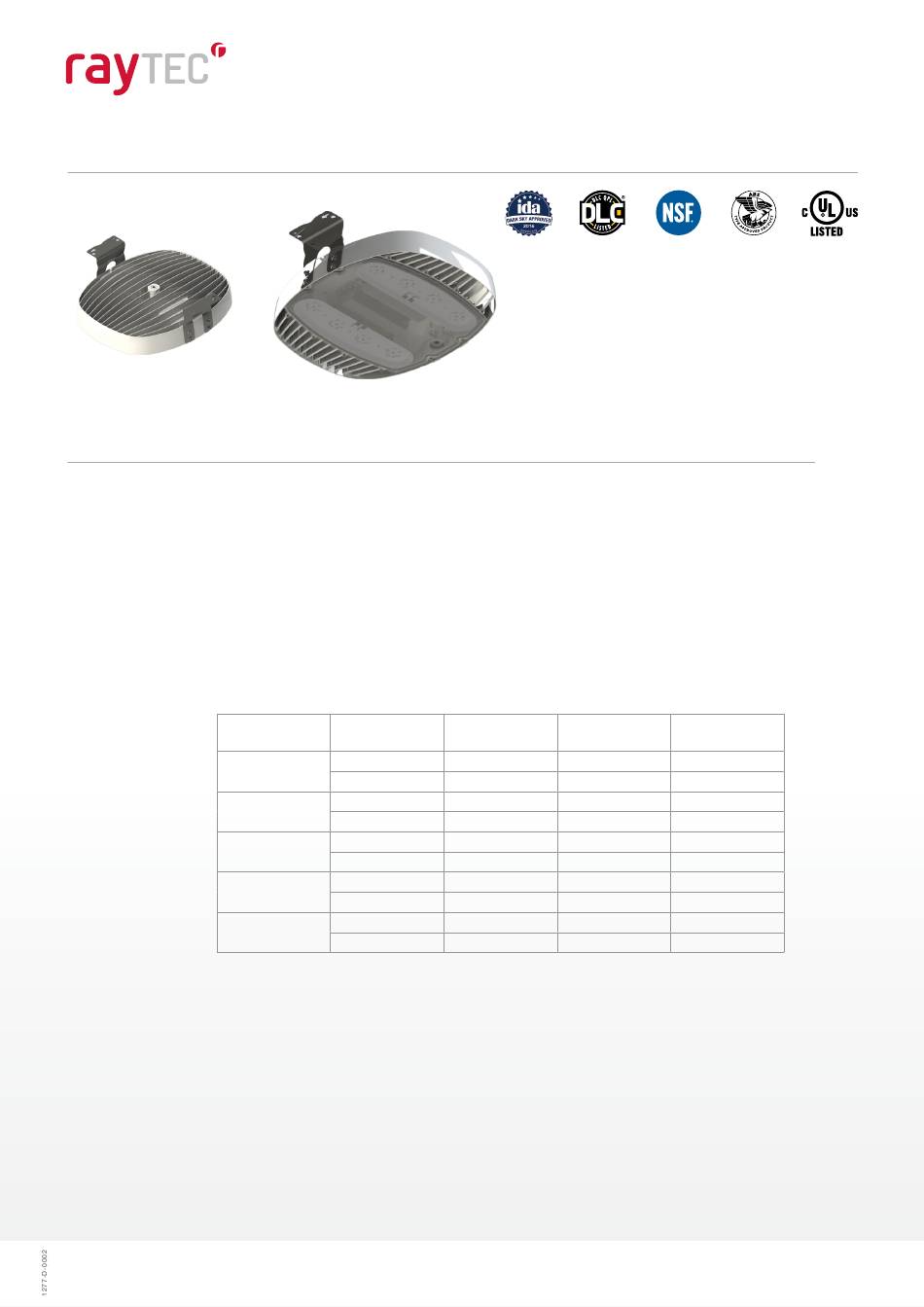

Raytec AR10 Mounting & Installation

Surface/Ceiling Mounting Installation
Application
AR Bay luminaires are designed for use indoors, outdoors, wet locations, areas containing moisture, dirt, corrosion,
vibration and rough usage. This luminaire is certied by NSF for use in Splash-zone and Non-Food areas of food
processing locations as defined in NSF-2. The AR Bay luminaire has been certified for use on marine vessels inside,
outside, and in other severely wet saltwater environments.
Certified to: UL 1598, UL 1598A, and UL 8750;
CSA 22.2 No. 250.0 and CSA22.2 No. 250.13
ABS Listed
Housing: Copper-free Cast Aluminium with Polycarbonate lens
Input Voltage: Based on luminaire suffix in table below: Suffix - AC: 120-277 VAC | Suffix - HV: 347-480 VAC
Electrical Ratings:
Connections: 2 x 3/4" NPT Conduit | Black: Line | White: Neutral | Green: Ground
Optional: Purple: 0-10V Dimming (+) | Grey: 0-10V Dimming (-)
For connections use wire rated to a minimum of 90°C. Class 1 Wiring only.
Dimming control wires must be rated 300V minimum for luminaires with suffix AC,
600V minimum for luminaires with suffix HV.
Temperature AR10, 15, 20, 25 AC Models: -40°C to +55°C
Range: AR10, 15, 20, 25 HV Models: -40°C to +50°C
AR30 AC, HV Optical models: -40°C to +45°C
AR30 AC Flood model: -40°C to +40°C
AR30 HV Flood model: -40°C to +45°C
Ingress IP66/67 | Suitable For Wet Locations. Marine Outside Type (Salt Water)
Protection:
Raytec Americas: +1 613 270 9990 • ushazsales@raytecled.com
Raytec Ltd reserve the right to change specifications without prior notification or public announcement.
Model Input Voltage
AC
AR10
HV
AC
AR15
HV
AC
AR20
HV
AC
AR25
HV
AC
AR30
HV
Rated Wattage Rated Voltage
[Watts] [Volts]
107 120-277
129 347-480
145 120-277
145 347-480
190 120-277
187 347-480
247 120-277
245 347-480
312 120-277
310 347-480
SPI-AR
E477827
Freqeuncy [Hz]
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Version 1
