NOTE: To set Legal Size Files next to Letter Size Files, place (Q) Long Metal Glide Rails and (R)
Long Metal Glide Rails w/Slots as shown. Now position (N) Short Metal Glide Rails in place.
Q==2PCS
R
~2PCS
X2
N ~
2PCS
The Slots on the
(R) Long Metal
Glide Rail W/Slots
are upward.
Q
Figure 2
OR
NOTE: To set Letter Size Files side by side, place (Q) Long Metal Glide Rail and (R) Long Metal Glide
Rail w/Slots as shown.
(
a
==2ecsl
X
2
. R ~2Pcsj
Figure 1

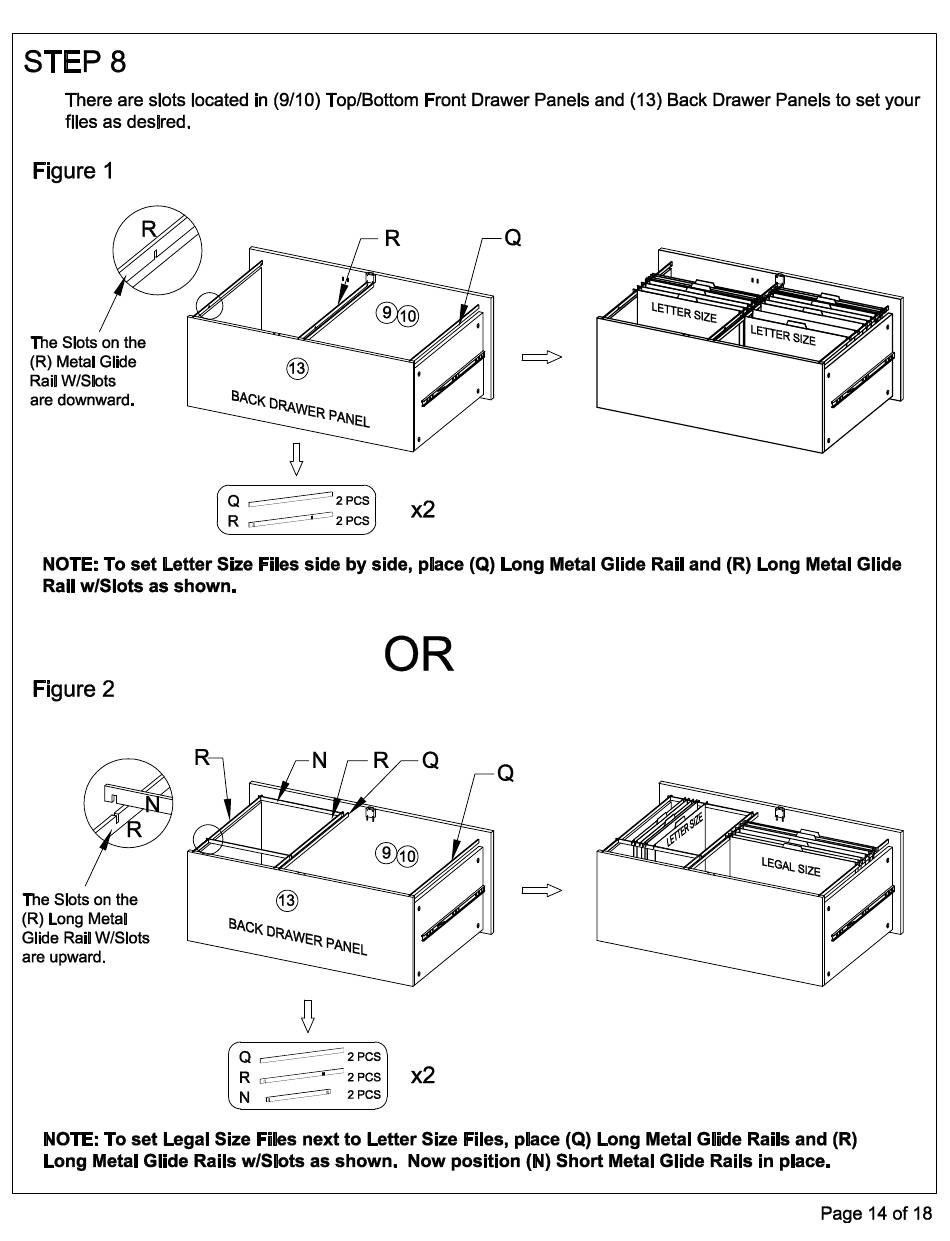

There are slots located in (9/10) Top/Bottom Front Drawer Panels and (13) Back Drawer Panels to set your
files as desired.
STEP8
Q
The Slots on the
(R) Metal Glide
Rail W/Slots
are downward.
