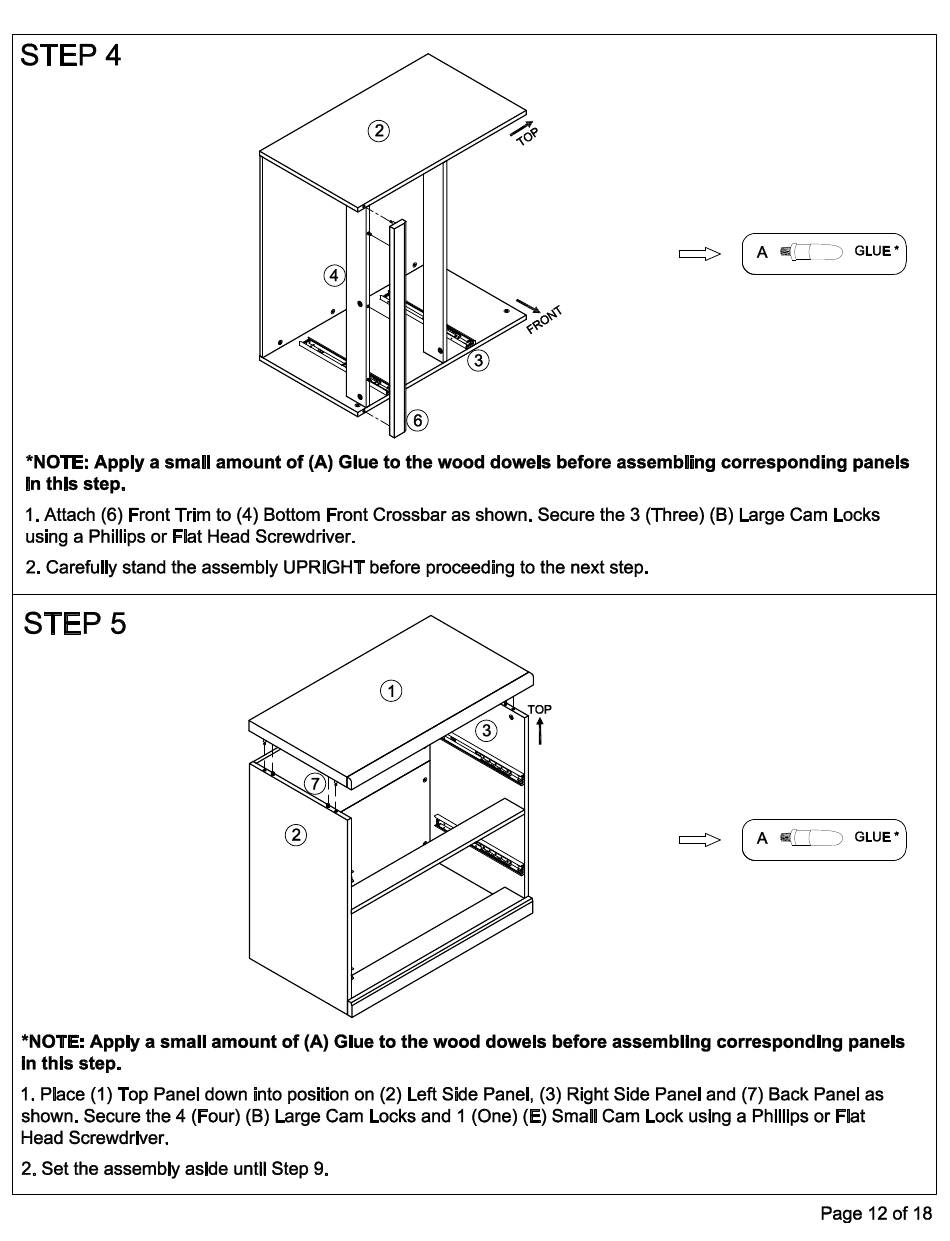

*NOTE: Apply a small amount of (A) Glue to the wood dowels before assembling corresponding panels
in this step.
1. Place (1) Top Panel down into position on (2) Left Side Panel, (3) Right Side Panel and (7) Back Panel as
shown. Secure the 4 (Four) (B) Large Cam Locks and 1 (One) (E) Small Cam Lock using a Phillips or Flat
Head Screwdriver.
2. Set the assembly aside until Step 9.
==::> (
A
r([C)
GLUE·)
STEPS
*NOTE: Apply a small amount of (A) Glue to the wood dowels before assembling corresponding panels
in this step.
1. Attach (6) Front Trim to (4) Bottom Front Crossbar as shown. Secure the 3 (Three) (B) Large Cam Locks
using a Phillips or Flat Head Screwdriver.
2. Carefully stand the assembly UPRIGHT before proceeding to the next step.
==::> (
A
5([]~~)
GLUE ·)
STEP4
