5
==:> (
A
r.(r1
=)
GLUE
·J
A
~
GLUE*
c=>
E
~
2x2 PCS
G
~
2x2PCS
x2
c=> [
F
m:5))l>
5x2 PCS ]
x2
Fo
I
Fo
I
I
Fo
I
*NOTE: Apply a small amount of (A) Glue to the wood dowels before assembling corresponding panels
in this step.

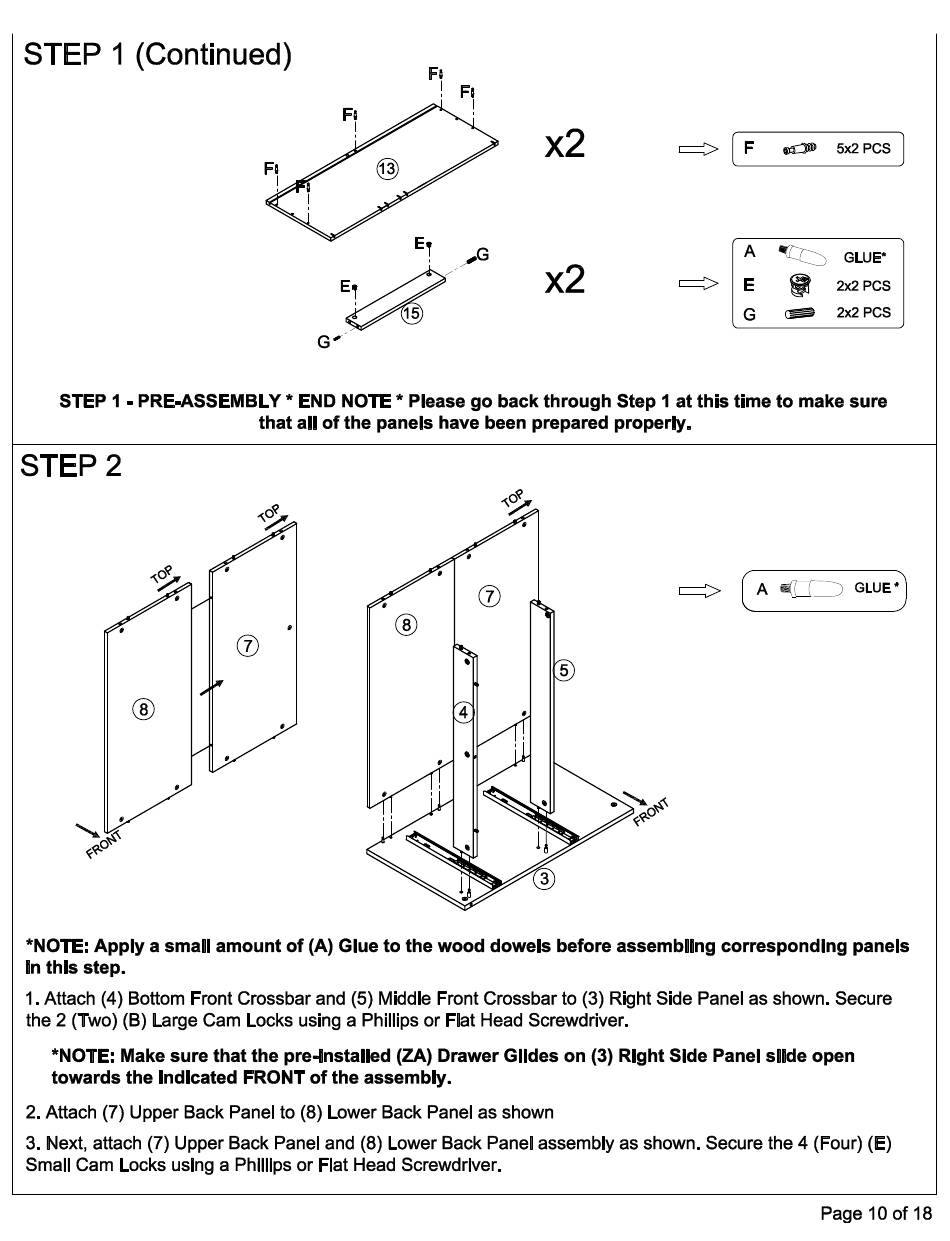

1. Attach (4) Bottom Front Crossbar and (5) Middle Front Crossbar to (3) Right Side Panel as shown. Secure
the 2 (Two) (B) Large Cam Locks using a Phillips or Flat Head Screwdriver.
*NOTE: Make sure that the pre-installed (ZA) Drawer Glides on (3) Right Side Panel slide open
towards the indicated FRONT of the assembly.
2. Attach (7) Upper Back Panel to (8) Lower Back Panel as shown
3. Next, attach (7) Upper Back Panel and (8) Lower Back Panel assembly as shown. Secure the 4 (Four) (E)
Small Cam Locks using a Phillips or Flat Head Screwdriver.
STEP 2
Fo
I
STEP 1 (Continued)
STEP 1 - PRE-ASSEMBLY* END NOTE * Please go back through Step 1 at this time to make sure
that all of the panels have been prepared properly.
