*NOTE: Apply a small amount of (A) Glue to the wood dowels before assembling corresponding panels
in this step.

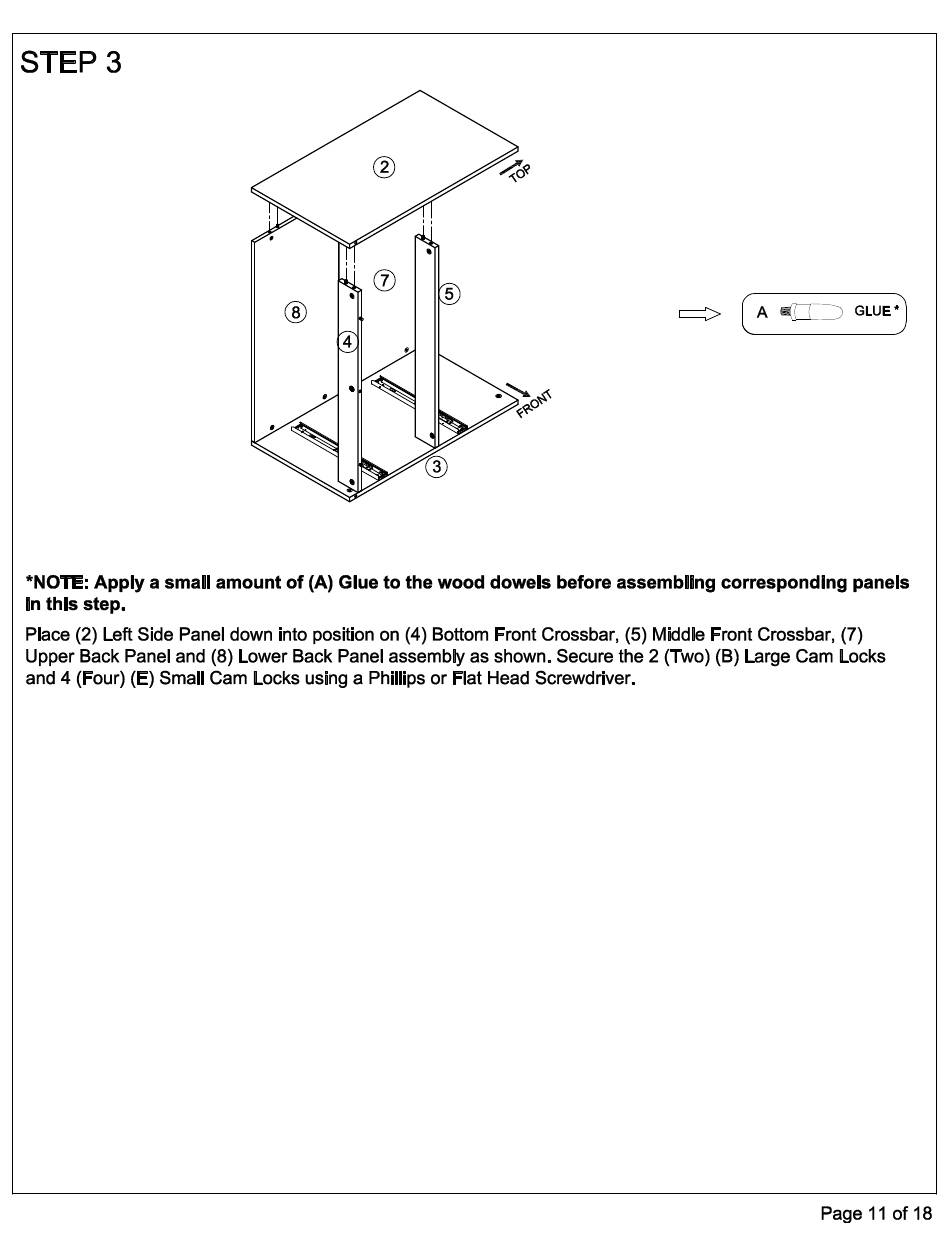

Place (2) Left Side Panel down into position on (4) Bottom Front Crossbar, (5) Middle Front Crossbar, (7)
Upper Back Panel and (8) Lower Back Panel assembly as shown. Secure the 2 (Two) (B) Large Cam Locks
and 4 (Four) (E) Small Cam Locks using a Phillips or Flat Head Screwdriver.
4
®
STEP 3
==:> (
A
G!JT~)
GLUE
·J
•
