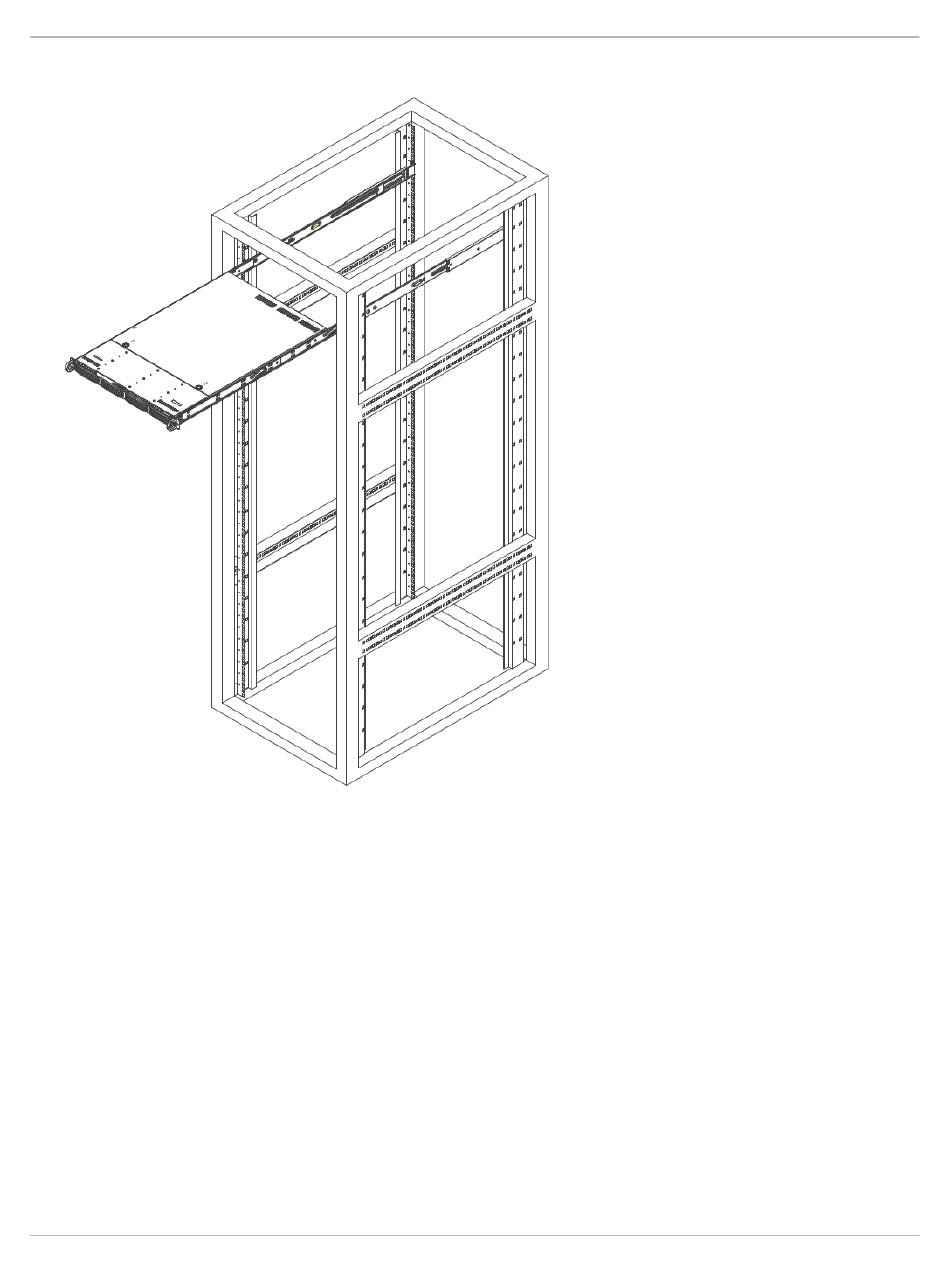

Figure: Installing the Server into a Rack

Installing a Server into a Telco Rack

To install the Ixia Application Server into a Telco type rack, do the following:
1. Use two L-shaped brackets on either side of the chassis.
2. Determine how far follow the server will extend out the front of the rack. Larger chassis should be
positioned to balance the weight between front and back. If a bezel is included on your server,
remove it.
3. Attach the two front brackets to each side of the chassis, then the two rear brackets positioned
with just enough space to accommodate the width of the telco rack.
4. Finish by sliding the chassis into the rack and tightening the brackets to the rack.
Chapter 1 Ixia Application Server Installation
– 11 –
