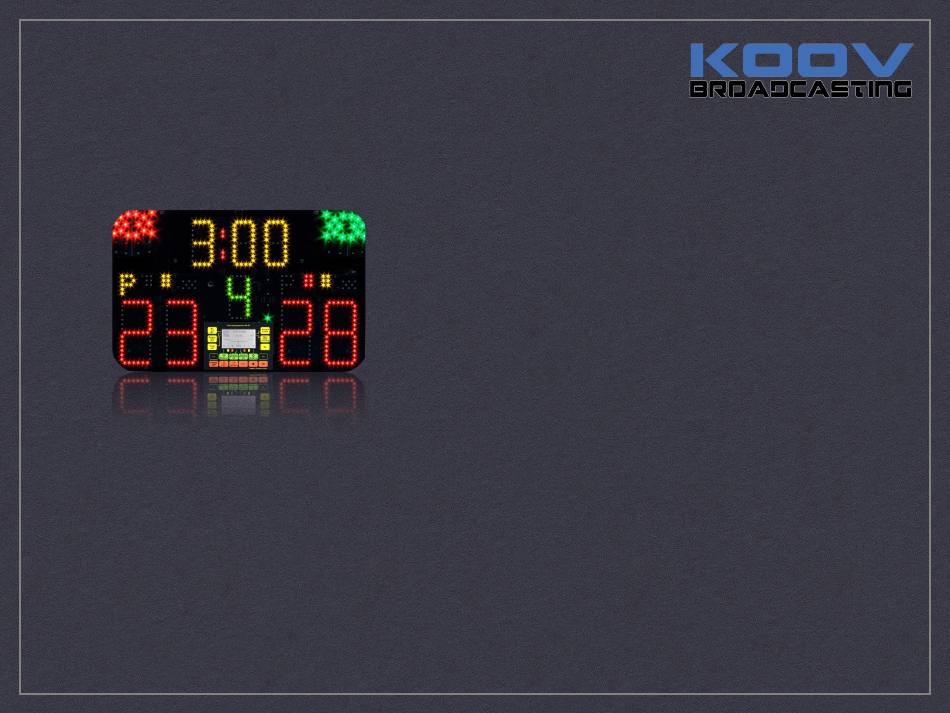

- Page 1 FAVERO FA-07 KOOV FENCING SYSTEM CONNECTION SETTING GUIDE...
-
Page 2: Computer Setting
CONNECTION & VIDEO EQUIPMENT PAGE 3, 4 SCORING MACHINE SETTING PAGE 5, 6 COMPUTER SETTING PAGE 7……14... -
Page 3: Connection Equipment
CONNECTION EQUIPMENT ComPort RS422 DB9 Extend Cable 30M Extend the Signal from your Scoring Machine output to your PC or Notebook Computer. ComPort RS422 to USB Device Receive the data from the Scoring Machine to your PC or Notebook Computer. 1 to 1 Connection. -
Page 4: Video Equipment
VIDEO EQUIPMENT Video Capture Device Video Camera BMD Web Presenter USB Camcorder BMD Ultrastudio SDI WebCam Avermedia ExtermeCap UVC HDMI Cable... - Page 5 RS422 Output Plug your RS422 cable or Bluetooth Device or ComPort to Wifi Communicator Adapter to 1 of the Scoring Machine FA-07 RS422 Port. Turn on your Scoring Machine.
- Page 6 USB cable HDMI or SDI Cable Wifi Signal Bluetooth Signal RS422 Cable Connection diagram Camcorder or Webcam using HDMI or SID cable to connect to Video Capture Device Video Capture Device using USB Cable to connect to PC or Notebook Computer PC or Notebook Computer have 3 ways to connect to Scoring Machine 1.
- Page 7 If you using “RS422 DB9 Cable & ComPort to USB” (wire) or “Bluetooth Adapter” (wireless - bluetooth) to connect between Scoring Machine and PC or Notebook Computer, you need to check your COM Port Setting. Open “Control Panel” -> “All Control Panel Items” -> select “Devices and Printers” and double click.
- Page 8 select your device which you install or paired to your computer. *device named maybe not same as the picture.
- Page 9 Select your device and right click on your mouse, go “Properties”.
- Page 10 Inside “Hardware” page, you will see the COM port number. Click “Properties” and go to check the Port Setting.
- Page 11 Now, if your setting is not same as the Picture, please change your setting. click “OK”.
- Page 12 If you using “ComPort RS422 to Wifi Communicator” (Wireless - Wifi), just connect your wifi to the correct SSID and enter the wifi password. *SSID will show on the ComPort RS422 to Wifi Communicator.
- Page 13 To Test your connection between Scoring Machine and PC or Notebook Computer, you can open KOOV Scoring Board TV.
- Page 14 if you using “RS422 DB9 Cable & ComPort to USB” (wire) or “Bluetooth Adapter” (wireless - bluetooth), Insert your Comport Number, select Band Rate to “38400” and click “Connect”. if you using “ComPort RS422 to Wifi Communicator” (Wireless - Wifi), Insert the Communicator “IP” and “Port” and click “Connect”. * “IP address”...
- Page 15 FAVERO FA-07 KOOV FENCING SYSTEM CONNECTION SETTING GUIDE escrime.koovbroadcasting.com koovbroadcasting@gmail.com...
