ENGLISH
INDEX
1. PARTICULARS...........................................................3
1.1 Included and optional accessories......................................3
1.2 Technical Data....................................................................3
1.3 Warranty.............................................................................3
1.4 Power supply......................................................................3
1.4.1 Safety warning.............................................................3
1.4.2 Battery power supply...................................................3
2. FA-07 VISUAL DISPLAYS.........................................4
2.1 LED display panel...............................................................4
2.2 Graphic display panel.........................................................4
3. FA-07 KEYBOARD.....................................................5
4. REMOTE CONTROL..................................................6
4.1 Remote control tuning.........................................................6
4.2 Remote control operation modes........................................6
4.2.1 Operation via infrared..................................................6
4.2.2 Operation via cable.....................................................6
4.2.3 Operation with safety range function...........................6
4.3 Remote control indications.................................................6
4.4 Functions of remote control keys........................................6
4.5 Battery charging..................................................................8
4.5.1 Low battery indication..................................................8
940-M06-EN FA-07 Manual
User's Manual
Page 1 / 16

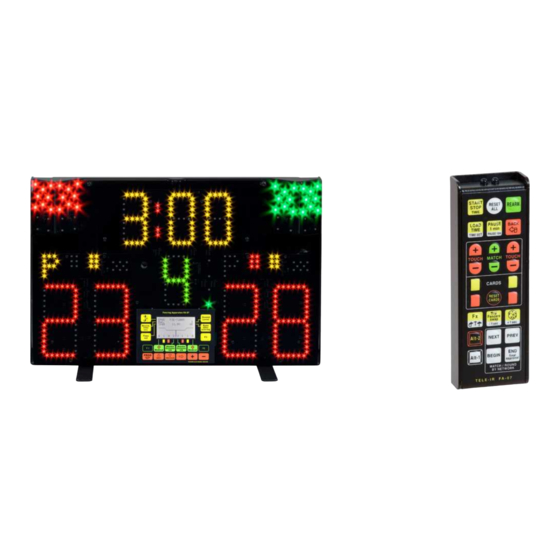

Art. 940 Fencing Apparatus - 07
5. PROGRAMMING & TEST MENUS............................9
5.1 Introduction.........................................................................9
5.2 Description of programming steps......................................9
5.3 Description of tests.............................................................9
6. OPERATION VIA LAN..............................................11
6.1 Preliminary information.....................................................11
.........................................................................................11
6.3 LAN connections...............................................................11
6.4 IP addresses and checking connection status..................12
6.5 Matches managed via LAN...............................................12
6.5.1 Request for a new/subsequent match.......................12
6.5.2 Match start.................................................................12
6.5.3 Match end..................................................................12
6.5.4 Correcting a previously sent match...........................13
7. VARIOUS CONNECTIONS......................................14
7.1 SERIAL DATA ports and REPEATER function..................14
7.2 RS-422 Ports....................................................................14
7.3 Ethernet Port.....................................................................14
7.4 Tower-Lights Connection..................................................14
7.5 "STM-Wireless" connection..............................................14
8. SOFTWARE UPDATES............................................15
FAVERO ELECTRONICS SRL
Advertisement
Table of Contents
Related Manuals for Favero FA-07
Summary of Contents for Favero FA-07
-
Page 1: Table Of Contents
6. OPERATION VIA LAN..........11 1.4.1 Safety warning.............3 1.4.2 Battery power supply...........3 6.1 Preliminary information.............11 6.2 Software for the central system for managing competitions 2. FA-07 VISUAL DISPLAYS.........4 ..................11 2.1 LED display panel...............4 6.3 LAN connections...............11 2.2 Graphic display panel............4 6.4 IP addresses and checking connection status....12 6.5 Matches managed via LAN..........12... - Page 2 Art.828: Rechargeable battery 12Vdc 7Ah Art.856: Power cord with clamps Art.880: Doubler for SERIAL DATA for connecting to a car battery Art.948: Carrying case for Tower-Lights and Table Stand for FA-07 Page 2 / 16 FAVERO ELECTRONICS SRL 940-M06-EN FA-07 Manual...
-
Page 3: Particulars
The battery’s positive pole must be connected to the number 2 contact of the power supply connector, otherwise the FA-07 will not switch on. If the FA-07 does not switch on after connecting it to a car battery, try inverting the connections to the clamps. -
Page 4: Visual Displays
11. Sound volume [0 = off, 1, 2, 3 = max]. 12. Power supply voltage. 13. Piste number: this appears only when the FA-07 receives the information from the central system through the LAN connection. 14. Referee’s name: appears only when the FA-07 receives this information from the central system via LAN connection. -
Page 5: Keyboard
Function key [F3]. See chapter 7.1. Insert the RESERVE fencer on the left side, in team competitions. On the FA-07 display panel the name of the fencer will be replaced by the words “RESERVE”. The key is active when the competitions are managed via a LAN connection, after confirming the match by the [Alt-1] + [BEGIN] keys. -
Page 6: Remote Control
• Recharging light : when the remote control is connected to the FA-07 by way of cable, the battery is also charged. The recharging light switches off when the battery has been completely charged. - Page 7 [-_MATCH]: decreases the number of matches. When you select Match Number = 0, the “-” (hyphen) symbol will appear and the chronometer and score will switch off. This allows you to use the FA-07 as only a simple scoring apparatus and lowers the current consumption.
-
Page 8: Battery Charging
To charge the remote control battery, connect it by using one of the two cables provided (1.3m and 10m) to the “ Infrared Remote Control” connector found at the back of the FA-07. The relative light on the remote control (see Fig. 5) switches on when recharging and switches off when charging is completed. -
Page 9: Programming & Test Menus
When switching on the FA-07, if you are unable to read the display panel (it is entirely dark or entirely light due to a previous error in the contrast setting), use the remote control’s [ +] and [-] keys for modifying the match by keeping pressed the [Alt-1] and [Alt-2] keys at the same time. - Page 10 To short-circuit the 7 sockets use a épée body cord for fencing, cut the cable, connect all 6 wires together and make them come into contact with the piste socket. Page 10 / 16 FAVERO ELECTRONICS SRL 940-M06-EN FA-07 Manual...
-
Page 11: Operation Via Lan
[Fencers_swap] key on the remote control. 2. Announcing the start of the match to the central system by the referee (via the keys [ Alt-1] + [BEGIN]). The FA-07 now begins to uninterruptedly send all of its data so that the central system can gather and transmit it to other visual display screens and on the Web. -
Page 12: Ip Addresses And Checking Connection Status
6.5.1 Request for a new/subsequent match By pressing the [Alt-1] + [NEXT] keys on the remote control, first the FA-07 will completely set all of its current data to zero, then it will send a request to the central system for data regarding the subsequent match. When such information has been received, the names and nationalities of the fencers will appear, flashing several times, on the FA-07’s graphic display panel. -
Page 13: Correcting A Previously Sent Match
[END_final_approval] keys. B) The data received by the central system are not valid. In this case a message will be sent to the FA-07 indicating the type of error. The graphic display panel will flash and show the type of error. -
Page 14: Various Connections
Fig. 16: FA-07 Connections SERIAL DATA ports and REPEATER function The FA-07 is equipped with 3 SERIAL DATA ports: 2 OUTPUT ports and 1 INPUT port. All ports are opto-isolated to protect fencers from dangerous high voltages. By using regular telephone cables, the ports can be easily connected to other FA-07 apparatuses or to other Favero Electronic Design devices, with a distance of up to 100m. -
Page 15: Software Updates
COMPLETED” will appear on the PC screen. Disconnect the PC and reset the IP address to its original setting. Switch off the FA-07 and then switch it on again: the new software version can be viewed in programming step P.09 (see chapter 5.2). - Page 16 ENGLISH Page 16 / 16 FAVERO ELECTRONICS SRL 940-M06-EN FA-07 Manual...
