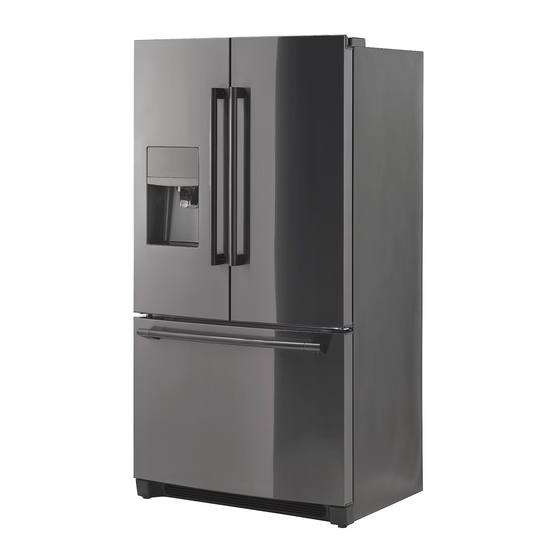

STJÄRNSTATUS
EN
ES
FR

Advertisement

Table of Contents
loading

Related Manuals for IKEA STJARNSTATUS

Summary of Contents for IKEA STJARNSTATUS

  • Page 1 STJÄRNSTATUS...

  • Page 2: Table Of Contents

    Automatic Ice and Water Dispenser Important Safety Information Storage Features Features Storing Food and Saving Energy Installation Normal Operating Sounds Door Removal Filter Replacement Door Handle Installation Care and Cleaning Water Supply Connection Troubleshooting Controls and Settings IKEA Limited Guarantee...
  • Page 3 IMPORTANT SAFETY INFORMATION Thank you for choosing IKEA.  Installation Checklist This User Manual is part of our commit- ment to customer satisfaction and product quality throughout the service life of your Doors new appliance.  Handles are secure and tight We view your purchase as the beginning ...

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING Please read all instructions before using this refrigerator. Definitions • Remove all staples from the carton. Staples can cause severe cuts, and This is the safety alert symbol. It is also destroy finishes if they come used to alert you to potential personal in contact with other appliances or injury hazards.
  • Page 5 IMPORTANT SAFETY INFORMATION • Do not plug the unit into an IMPORTANT electrical outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off CFC/HCFC Disposal accidentally. Your old refrigerator may have a cool- ing system that used CFCs or HCFCs (chlorofluorocarbons or hydrochloro- IMPORTANT...

  • Page 6: Features

    Shelves Glass Shelves Crisper Drawer Deli Drawer Door Bin Adjustable Hinges Freezer Baskets *Freezer Ice Maker *Removable Ice Bin Toe Grille IMPORTANT Features not purchased with your refrigerator can be purchased at www.ikea.com or by calling IKEA US: (833) 337-4006...

  • Page 7: Installation

    INSTALLATION Tools Necessary: (OR) Phillips Head ⅜" and ¼" Quadrex Head Socket Adjustable ⅜" Fixed Screwdriver Allen Wrench Wrench Wrench Wrench Components Provided: CAUTION Top Hinge Top Hinge Cover Front Cover Rear o Not install the refrigerator where Screw Screw the temperature will drop below 55°F (13°C) or rise above 110°F (43°C).
  • Page 8 INSTALLATION To raise: turn adjustment screw clockwise. CAUTION To lower: turn adjustment screw Do Not loosen or remove these 3 hex counterclockwise. screws. Raise Anti-tip DO NOT Loosen Remove Lower These 3 Screws 3 Ensure both doors are bind-free with their seals touching the cabinet on all four sides and that cabinet is stable.
  • Page 9 INSTALLATION To make final door height adjustments: To adjust the flipper mullion: 1 Loosen the screw located on the flipper mullion hinge. Flipper Mullion Door Door Screw Flipper 1. Open freezer drawer to make lower Mullion hinge visible. Hinge 2. Insert 6mm Allen wrench into the shaft of the lower hinge.

  • Page 10: Door Removal

    DOOR REMOVAL Getting through narrow Note spaces If your refrigerator will not fit through DO NOT remove the ground screw an entrance area, you can remove the from hinge. doors. Check first by measuring the entrance. To remove the refrigerator To prepare for removing the doors: doors 1 Make sure the electrical power cord...
  • Page 11 DOOR REMOVAL 3 Detach the water tube from the 4 Open the refrigerator doors to a 90 connector located behind the degree angle and remove the two refrigerator, the connector releases screws from the top hinge. Lift and when you press inward on the remove door from lower hinge.
  • Page 12 DOOR REMOVAL To reinstall the refrigerator doors: Note When reinserting the water tube and IMPORTANT replacing the top hinge cover, use care to be sure you do not kink the tube. When replacing the doors on the lower hinge, they must be installed at a 90 degree angle.
  • Page 13 DOOR REMOVAL Removing Freezer Drawer CAUTION Drawer is heavy. Use caution when Hook lifting. 1 Remove 4 hex head drawer screws. 2 Lift up drawer to remove. DO NOT Remove Other Screws Note To locate the pin, look inside the drawer and the pin is next to the door Remove liner and the slides.

  • Page 14: Door Handle Installation

    DOOR HANDLE INSTALLATION CAUTION Wear gloves and safety goggles. Use extreme CAUTION when installing these handles. Door Handle Mounting Mounting Refrigerator Handles Instructions 1 Remove handles from carton and any other protective packaging. 2 Position fresh food handle end caps over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes...

  • Page 15: Water Supply Connection

    Line, and for homes without an existing maker. If your home has a water valve IKEA recommends its water line softening system, ensure the kit 5305510264 with a 20 ft. softener is maintained and working (6 meters) Copper Water Line with self- properly.
  • Page 16 WATER SUPPLY CONNECTION Tighten another half turn with a Steel Plastic Water wrench; DO NOT over tighten. See Clamp Tubing to Ice Figure 1. Maker Fill Brass Tube Compression If you use braided flexible stainless steel tubing - The nut is already Ferrule assembled on the tubing.
  • Page 17 CONTROLS AND SETTINGS Refrigerator Settings Display Instructions 1. The default setting of the refrigerator display activates upon touch and fades away the temperature settings after 10 seconds. 2. To reawaken the temperature settings, simply select “∧ / ∨” or “+ / -”...

  • Page 18: Controls And Settings

    CONTROLS AND SETTINGS User Interface Options May Vary Options Used to enter and exit Refrige- Allows the temperature (∧ or ∨) the options menu and ration set-points to be adjusted. make selections. Temp Control temperatures range from +33°F / +1°C Exit Toggles the options and to +47°F / +8°C.
  • Page 19 CONTROLS AND SETTINGS Options May Vary (Continued) Setting cooling temperatures (options may vary) Air Filter Displays the current status of the air filter (Good, NOTE Order, or Replace). To reset the filter status to “Good”, press and hold the “set” The recommended settings for a prod- key for three seconds.
  • Page 20 CONTROLS AND SETTINGS Alarms Sabbath Mode Power Failure The Sabbath Mode is a feature that disables portions of the refrigerator In the event of a power failure, the and its controls in accordance with power fail alert will be illuminated. Press observance of the weekly Sabbath and set to acknowledge the alarm.
  • Page 21 AUTOMATIC ICE AND WATER DISPENSER Priming the water supply Ice Maker and Storage Bin system Capacity This ice maker should produce 2.0 to 2.5 CAUTION pounds of ice per 24 hours. In a Standard Depth model, the ice bin will For proper dispenser operation, hold about 6.5 pounds of ice.

  • Page 22: Automatic Ice And Water Dispenser

    AUTOMATIC ICE AND WATER DISPENSER IMPORTANT CAUTION On occasion, unusually small ice cubes may be noticed in the bucket or in If the water supply to your refrigerator dispensed ice. This could occur in nor- is softened, be sure the softener is mal operation of the ice maker.
  • Page 23 AUTOMATIC ICE AND WATER DISPENSER CAUTION NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin and dispenser mechanism. To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

  • Page 24: Storage Features

    STORAGE FEATURES CAUTION To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher. NOTE Flip Shelf Reposition the Air Seal...
  • Page 25 STORAGE FEATURES Drawers Your refrigerator includes a variety of storage drawers. Crispers Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Opening Crisper Drawer Crisper humidity control Crisper drawers include a sliding control for adjusting the humidity inside the crisper.
  • Page 26 STORAGE FEATURES To remove the Crisper Drawer for To change the position of an cleaning: adjustable door bin: 1 Pull the drawer out until it stops. 1 Remove all food from door bin. 2 Lift the front slightly and remove the 2 Grip the bin firmly with both hands drawer.
  • Page 27 STORAGE FEATURES Accessories Freezer Features Dairy compartment Use the dairy compartment, at the top Clip of the fresh food compartment door, for short-term storage of cheese, spreads, or butter. The dairy compartment is designed to be warmer than the open area and includes a lift-up cover and a dairy divider (select models).
  • Page 28 STORAGE FEATURES Removing Freezer Basket Instructions Dividers Removal 1 Locate the basket clips in the rear Lift up on the front of the upper divider corners of the basket and pull them and pull out. out to remove. 2 Open fresh food doors completely. Upper Basket 3 Lift the basket up and remove.

  • Page 29: Storing Food And Saving Energy

    STORING FOOD AND SAVING ENERGY Ideas for storing foods return you can ensure your newly purchased food designated for the Fresh food storage freezer will be preserved as quickly as possible. • Keep the fresh food compartment between 34°F and 40°F with an •...

  • Page 30: Normal Operating Sounds

    NORMAL OPERATING SOUNDS Understanding the sounds L Ice dispensing paddle When dispensing ice, you will hear a you may hear snapping, clicking, or popping sound. Your new, high-efficiency refrigerator may introduce unfamiliar sounds. NOTE These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen Energy efficient foam in your refrigera- cabinets may make these sounds more...

  • Page 31: Filter Replacement

    Filter Cartridge Ordering Replacement Filters Order new filters by calling 833-337-4006. IKEA recommends that you order extra filters when you first install your refrigerator, and that you replace your filters at least once every six months. Ordering replacement filters...
  • Page 32 FILTER REPLACEMENT More about your Advanced 7 Continue dispensing water for 3-4 minutes or until 1.5 gallons of water Water Filter has flowed through the system. You will likely need to empty and refill The ice and water filter your glass several times. system is tested and certified 8 Turn On the ice maker.
  • Page 33 CARE AND CLEANING Protecting your investment Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year. NOTE Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners.

  • Page 34: Care And Cleaning

    CARE AND CLEANING Vacation and Moving Tips Occasion Tips Short • Leave refrigerator operating during vacations of three weeks Vacations or less. • Use all perishable items from refrigerator compartment. • Turn automatic ice maker off and empty ice bucket, even if you will only be gone a few days.
  • Page 35 CARE AND CLEANING Care & Cleaning Tips Part What To Use Tips and Precautions Interior & • Soap and water Use two tablespoons of baking soda in Door Liners one quart of warm water. Be sure to • Baking soda and wring excess water out of sponge water or cloth before cleaning around...

  • Page 36: Troubleshooting

    TROUBLESHOOTING Visit our web site at IKEA US: (833) 337-4006 www.ikea.com Concern Potential Cause Common Solution Automatic Ice Maker Ice maker is • Ice maker is turned off. • Turn on ice maker. For the fresh not making food ice maker, press ice maker on- any ice.
  • Page 37 TROUBLESHOOTING Concern Potential Cause Common Solution Automatic Ice Maker (Cont’d) Ice maker is • Ice maker is producing • The ice maker will produce not making less ice than you approximately 2.0 to 2.5 pounds of enough ice. expect. ice every 24 hours depending on usage conditions.
  • Page 38 TROUBLESHOOTING Concern Potential Cause Common Solution Dispenser (Ice & Water) Dispenser • There is no ice in the • See the “Ice maker is not making will not bin to be dispensed. any ice” section above. dispense • The refrigerator doors •...
  • Page 39 TROUBLESHOOTING Concern Potential Cause Common Solution Opening/Closing Of Doors/Drawers Door(s) will • Door was closed too • Close both doors gently. not close. hard, causing other door to open slightly. • Refrigerator is not level. • Ensure floor is level and solid, It rocks on the floor and can adequately support the when moved slightly.
  • Page 40 TROUBLESHOOTING Concern Potential Cause Common Solution Water/Moisture/Frost Inside Refrigerator Moisture • Weather is hot and • The rate of frost buildup and collects on humid. internal sweating increases. inside of • Flipper mullion • Adjust flipper mullion. (See “To refrigerator adjust the flipper mullion”...
  • Page 41 This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN or TILLREDA in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase.

  • Page 42: Ikea Limited Guarantee

    SAVE THE SALES RECEIPT! It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased. Do you need extra help? For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre.
  • Page 43 23430 AA-2194807-2 © Inter IKEA Systems B.V. 2020 2020-04-06...
