TI01037D/06/EN/04.14
71254125

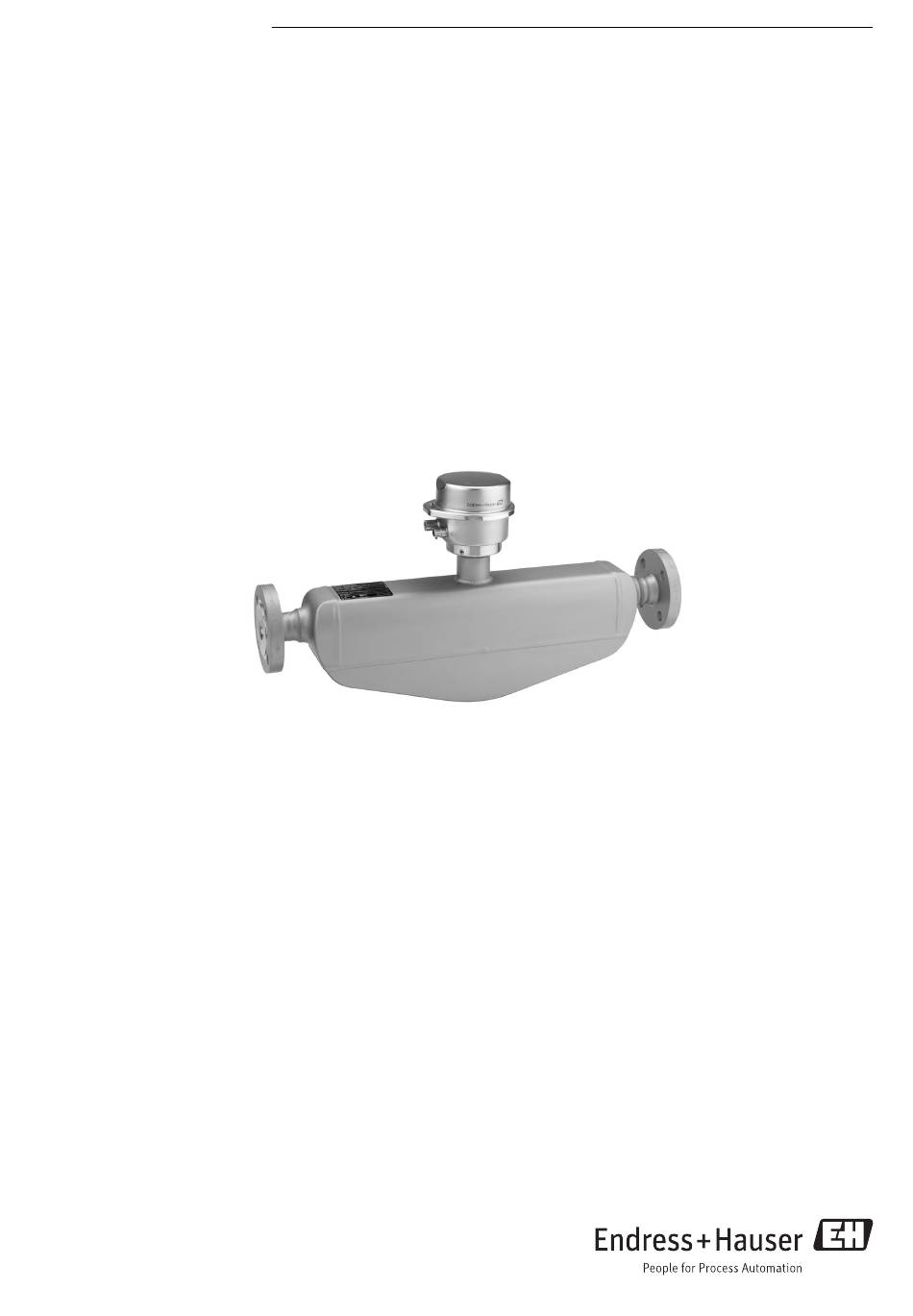

Easy-to-clean flowmeter with self-drainable single-tube system and an ultra-
compact transmitter
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Dedicated for applications requiring optimal cleanability
under hygienic conditions
Device properties
• Large range of hygienic process connections
• 3A and EHEDG conform
• Fast recovery from CIP/SIP
• Robust, ultra-compact transmitter housing
• High ingress protection: IP69K
• Local display available
Products
Technical Information
Proline Promass S 100
Coriolis flowmeter
Solutions
Your benefits
• Low installation costs – compact, horizontal installation
thanks to fully self-draining tube
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Space-saving transmitter – full functionality on smallest
footprint
• Time-saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology™
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline Promass S 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Proline Promass S 100

Summary of Contents for Endress+Hauser Proline Promass S 100

  • Page 1 Products Solutions Services TI01037D/06/EN/04.14 71254125 Technical Information Proline Promass S 100 Coriolis flowmeter Easy-to-clean flowmeter with self-drainable single-tube system and an ultra- compact transmitter Application Your benefits • Measuring principle operates independently of physical fluid • Low installation costs – compact, horizontal installation...

  • Page 2: Table Of Contents

    Proline Promass S 100 Table of contents Document information ..... . . 4 Shock resistance ......42 Vibration resistance .
  • Page 3 Proline Promass S 100 Registered trademarks ..... . 76 Endress+Hauser...

  • Page 4: Document Information

    Proline Promass S 100 Document information Symbols used Electrical symbols Symbol Meaning Direct current A terminal to which DC voltage is applied or through which direct current flows. Alternating current A terminal to which alternating voltage is applied or through which alternating current flows.

  • Page 5: Function And System Design

    Proline Promass S 100 Symbol Meaning Hazardous area Indicates a hazardous area. Safe area (non-hazardous area) Indicates the non-hazardous area. Function and system design Measuring principle The measuring principle is based on the controlled generation of Coriolis forces. These forces are always present in a system when both translational and rotational movements are superimposed.

  • Page 6: Measuring System

    Proline Promass S 100 Measuring system The device consists of a transmitter and a sensor. If a device with Modbus RS485 intrinsically safe is ordered, the Safety Barrier Promass 100 is part of the scope of supply and must be implemented to operate the device.

  • Page 7: Device Architecture

    Proline Promass S 100 Device architecture A0016779  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) EtherNet/IP PROFIBUS DP Modbus RS485 4-20 mA HART, pulse/frequency/switch output Safety Barrier Promass 100 Modbus RS485 intrinsically safe Non-hazardous area Non-hazardous area and Zone 2/Div.

  • Page 8: Measuring Range

    Proline Promass S 100 Measuring range Measuring ranges for liquids Measuring range full scale values  to  min(F) max(F) [mm] [in] [kg/h] [lb/min] ³⁄₈ 0 to 2 000 0 to 73.50 ½ 0 to 6 500 0 to 238.9 0 to 18 000 0 to 661.5...

  • Page 9: Output

    Proline Promass S 100 Output Output signal Current output Current output 4-20 mA HART (active) Maximum output values • DC 24 V (no flow) • 22.5 mA Load 0 to 700 Ω Resolution 0.38 µA Damping Adjustable: 0.07 to 999 s Assignable measured •...

  • Page 10: Signal On Alarm

    Proline Promass S 100 Number of switching Unlimited cycles Assignable functions • Off • On • Diagnostic behavior • Limit value – Mass flow – Volume flow – Corrected volume flow – Density – Reference density – Temperature – Totalizer 1-3 •...
  • Page 11 Proline Promass S 100 Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses Frequency output Failure mode Choose from: • Actual value • Defined value: 0 to 12 500 Hz • 0 Hz Switch output...

  • Page 12: Ex Connection Data

    Proline Promass S 100 Web browser Plain text display With information on cause and remedial measures Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active •...

  • Page 13: Galvanic Isolation

    Proline Promass S 100 Galvanic isolation The following connections are galvanically isolated from each other: • Outputs • Power supply Protocol-specific data HART Manufacturer ID 0x11 Device type ID 0x4A HART protocol revision Device description files Information and files under: (DTM, DD) www.endress.com...
  • Page 14 Proline Promass S 100 PROFIBUS DP Manufacturer ID 0x11 Ident number 0x1561 Profile version 3.02 Device description files (GSD, Information and files under: DTM, DD) • www.endress.com • www.profibus.org Output values Analog input 1 to 8 (from measuring device to •...
  • Page 15 Proline Promass S 100 Supported functions • Identification & Maintenance Simplest device identification on the part of the control system and nameplate • PROFIBUS upload/download Reading and writing parameters is up to ten times faster with PROFIBUS upload/download • Condensed status...
  • Page 16 Proline Promass S 100 I/O connections Max. 6 connections (scanner) Configuration options for • DIP switches on the electronics module for IP addressing measuring device • Manufacturer-specific software (FieldCare) • Add-on Profile Level 3 for Rockwell Automation control systems • Web browser •...
  • Page 17 Proline Promass S 100 O → T configuration: 0x66 T → O configuration: 0x65 Input only Multicast Instance Size [byte] Instance configuration: 0x68 O → T configuration: 0xC7 T → O configuration: 0x65 Input only Multicast Instance Size [byte] Instance configuration: 0x69 O →...

  • Page 18: Power Supply

    Proline Promass S 100 Power supply Terminal assignment Overview: housing version 1.1 1.2 1.3 2.1 2.2 A0016770 Housing version: compact, aluminum coated Housing version: compact, hygienic, stainless Housing version: ultra compact, hygienic, stainless, M12 device plug Connection version: 4-20 mA HART, pulse/frequency/switch output 1.1 Signal transmission: pulse/frequency/switch output...
  • Page 19 Proline Promass S 100 Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code for Possible options for order code Power "Housing" "Electrical connection" Outputs supply Options Terminals Terminals • Option A: coupling M20x1 A, B •...
  • Page 20 Proline Promass S 100 PROFIBUS DP connection version For use in the non-hazardous area and Zone 2/Div. 2. Order code for "Output", option L Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available...
  • Page 21 Proline Promass S 100 Modbus RS485 connection version For use in the non-hazardous area and Zone 2/Div. 2. Order code for "Output", option M Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available...
  • Page 22 Proline Promass S 100 Modbus RS485 connection version For use in the intrinsically safe area. Connection via Safety Barrier Promass 100. Order code for "Output", option M Depending on the housing version, the transmitters can be ordered with terminals or device plugs.
  • Page 23 Proline Promass S 100 EtherNet/IP connection version Order code for "Output", option N Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code for Possible options for order code Power "Housing"...

  • Page 24: Pin Assignment, Device Plug

    Proline Promass S 100 Safety Barrier Promass 100 Power Modbus supply RS485 Safe area Power Lift panel for bus termination Communication Safety Barrier Promass 100 Hazardous area Power Modbus supply RS485 A0016922  7 Safety Barrier Promass 100 with terminals Non-hazardous area and Zone 2/Div.
  • Page 25 Proline Promass S 100 4-20 mA HART with pulse/frequency/switch output Device plug for signal transmission (device side) Assignment Coding Plug/socket 4-20 mA HART (active) Socket 4-20 mA HART (active) Pulse/frequency/switch output (passive) Pulse/frequency/switch output (passive) A0016810 Grounding/shielding • Recommended plug: Binder, series 763, part no. 79 3439 12 05 •...

  • Page 26: Power Consumption

    Proline Promass S 100 Device plug for signal transmission (device side), MODBUS RS485 (not intrinsically safe) For use in the non-hazardous area and Zone 2/Div. 2. Assignment Coding Plug/socket Socket Modbus RS485 Modbus RS485 Grounding/shielding A0016811 • Recommended plug: Binder, series 763, part no. 79 4449 20 05 •...

  • Page 27: Current Consumption

    Proline Promass S 100 Safety Barrier Promass 100 Order code for Maximum "Output" Power consumption Option M: Modbus RS485, for use in intrinsically safe areas 4.8 W Current consumption Transmitter Order code for Maximum Maximum "Output" Current consumption switch-on current Option B: 4-20mA HART, pul./...
  • Page 28 Proline Promass S 100 Connection examples Current output 4-20 mA HART 4...20 mA – A0016800  8 Connection example for 4-20 mA HART current output (active) Automation system with current input (e.g. PLC) Cable shield, observe cable specifications (→  32) Connection for HART operating devices (→...
  • Page 29 Proline Promass S 100 PROFIBUS DP A0021429  11 Connection example for PROFIBUS DP, non-hazardous area and Zone 2/Div. 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications (→...
  • Page 30 Proline Promass S 100 L- L+ A0016804  13 Connection example for Modbus RS485 intrinsically safe Control system (e.g. PLC) Cable shield, observe cable specifications (→  32) Safety Barrier Promass 100 Observe cable specifications (→  32) Non-hazardous area Non-hazardous area and Zone 2/Div.

  • Page 31: Potential Equalization

    Proline Promass S 100 HART input 4...20 mA A0019828  15 Connection example for HART input (burst mode) via current output (active) Cable shield, observe cable specifications (→  32) Resistor for HART communication (≥ 250 Ω): observe maximum load (→  9) Connection for HART operating devices (→...

  • Page 32: Cable Entries

    Proline Promass S 100 Cable entries • Cable gland: M20 × 1.5 with cable 6 to 12 mm (0.24 to 0.47 in) • Thread for cable entry: – NPT ½" – G ½" – M20 Cable specification Permitted temperature range •...

  • Page 33: Performance Characteristics

    Proline Promass S 100 For more information on planning and installing EtherNet/IP networks, please refer to the "Media Planning and Installation Manual. EtherNet/IP" of the ODVA Organization. Connecting cable between Safety Barrier Promass 100 and measuring device Cable type Shielded twisted-pair cable with 2x2 wires. When grounding the cable shield, observe the grounding concept of the plant.

  • Page 34: Repeatability

    Proline Promass S 100 Zero point stability Zero point stability [mm] [in] [kg/h] [lb/min] ³⁄₈ 0.20 0.007 ½ 0.65 0.024 1.80 0.066 1½ 4.50 0.165 0.257 Flow values Flow values as turndown parameter depending on nominal diameter. SI units 1:10...

  • Page 35: Response Time

    Proline Promass S 100 Base repeatability Mass flow and volume flow (liquids) ±0.05 % o.r. Mass flow (gases) ±0.25 % o.r. Design fundamentals (→  36) Density (liquids) ±0.00025 g/cm Temperature ±0.25 °C ± 0.0025 · T °C (±0.45 °F±0.0015 · (T–32) °F) Response time The response time depends on the configuration (damping).

  • Page 36: Design Fundamentals

    Proline Promass S 100 Temperature ±0.005 · T °C (±0.005 · (T – 32) °F) Influence of medium The table below shows the effect on accuracy of mass flow due to a difference between calibration pressure and process pressure. pressure o.r.

  • Page 37: Installation

    Proline Promass S 100 Design fundamentals (→  36) Installation No special measures such as supports are necessary. External forces are absorbed by the construction of the device. Mounting location To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: •...

  • Page 38: Orientation

    Proline Promass S 100 Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 0.55 1½ 0.87 1.10 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping).

  • Page 39: Special Mounting Instructions

    Proline Promass S 100 Special mounting Securing with mounting clamp in the case of hygiene connections instructions It is not necessary to provide additional support for the sensor for operational performance purposes. If, however, additional support is required for installation purposes, the following dimensions must be observed.

  • Page 40: Mounting Safety Barrier Promass 100

    ‣ If operating outdoors: Avoid direct sunlight, particularly in warm climatic regions. Weather protection covers can be ordered from Endress+Hauser: see "Accessories" section Temperature tables In the following tables, the following interdependencies between the maximum medium temperature for T1-T6 and the maximum ambient temperature T apply when operating the device in hazardous areas.
  • Page 41 Proline Promass S 100 Order code for "Housing" [°C] [85 °C] [100 °C] [135 °C] [200 °C] [300 °C] [450 °C] – – – The following applies for specified sensors with a maximum medium temperature T = 200 °C: T = 170 °C...

  • Page 42: Storage Temperature

    Proline Promass S 100 Explosion hazards arising from gas and dust Determining the temperature class and surface temperature with the temperature table • In the case of gas: Determine the temperature class as a function of the ambient temperature T and the medium temperature T •...

  • Page 43: Electromagnetic Compatibility (Emc)

    Proline Promass S 100 Electromagnetic • As per IEC/EN 61326 and NAMUR Recommendation 21 (NE 21) • Complies with emission limits for industry as per EN 55011 (Class A) compatibility (EMC) • Device version with PROFIBUS DP: Complies with emission limits for industry as per EN 50170 Volume 2, IEC 61784 The following applies for PROFIBUS DP: If baud rates >...
  • Page 44 Proline Promass S 100 Flange connection according to ASME B16.5 [psi] [bar] Class 300 Class 150 [°C] [°F] A0020966-EN  22 With flange material 1.4404 (316/316L) Flange connection according to JIS B2220 [psi] [bar] [°C] [°F] A0020971-EN  23 With flange material 1.4404 (316/316L)
  • Page 45 Proline Promass S 100 Aseptic threaded hygienic connection according to DIN 11864-1 Form A; aseptic clamp connection according to DIN 11864-3 Form A [psi] [bar] DN 8...40 DN 50 [°C] [°F] A0020969-EN  25 With connection material 1.4404 (316L) Aseptic flange connection according to DIN 11864-2 Form A...

  • Page 46: Secondary Containment Pressure Rating

    Proline Promass S 100 Threaded hygienic connection to ISO 2853 [psi] [bar] [°C] [°F] A0020919-EN  28 With connection material 1.4404 (316L) Tri-Clamp The clamp connections are suitable up to a maximum pressure of 16 bar (232 psi). Please observe the operating limits of the clamp and seal used as they could be under 16 bar (232 psi).

  • Page 47: Pressure Loss

    Proline Promass S 100 • The minimum recommended full scale value is approx. 1/20 of the maximum full scale value • In most applications, 20 to 50 % of the maximum full scale value can be considered ideal • Select a lower full scale value for abrasive substances (such as liquids with entrained solids): flow velocity <1 m/s (<3 ft/s).

  • Page 48: Heating

    • Via pipes carrying hot water or steam • Via heating jackets Heating jackets for the sensor can be ordered as accessories from Endress+Hauser (→  73). Vibrations The high oscillation frequency of the measuring tubes ensures that the correct operation of the measuring system is not influenced by plant vibrations.

  • Page 49: Mechanical Construction

    Proline Promass S 100 Mechanical construction Design, dimensions Compact version Order code for "Housing", option A "Compact coated alu", coated alu A0019436 Dimensions SI units 1) 2) 1) 2) [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 147.5...
  • Page 50 Proline Promass S 100 1) 2) [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 1½ 5.35 5.81 3.68 2.13 8.46 15.28 1.02 6.81 5.35 5.81 3.68 2.13 18.39 1.59 9.49 6.57 If using an extension neck for the extended temperature range, order code for "Sensor option", option CG: values +2.76 in...
  • Page 51 Proline Promass S 100 1) 2) [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 5.26 5.39 3.07 2.31 7.32 12.09 0.69 4.76 3.62 1½ 5.26 5.39 3.07 2.31 8.27 15.08 1.02 6.81 5.26 5.39 3.07 2.31 18.19 1.59...
  • Page 52 Proline Promass S 100 Dimensions US units 1) 2) [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 4.39 4.87 2.67 7.32 11.57 0.33 4.25 3.62 ½ 4.39 4.87 2.67 7.32 11.57 0.47 4.25 3.62 4.39 4.87 2.67...
  • Page 53 Proline Promass S 100 Flange according to EN 1092-1 (DIN 2501), PN 63: 1.4404 (316/316L) (order code for "Process connection", option D3W) Surface roughness (flange): EN 1092-1 Form B2 (DIN 2526 Form C), Ra 0.8 to 3.2 µm [mm] [mm]...
  • Page 54 Proline Promass S 100 Flange connections JIS 100 (4") 125 (5") ≤ ≥ +1.5 (+0.06) ±3.5 (±0.14) −2.0 (–0.08) A0015621  33 Engineering unit mm (in) Flange JIS B2220, 10K: 1.4404 (316/316L) (order code for "Process connection", option NDW) Surface roughness (flange): Ra 3.2 to 6.3 µm...
  • Page 55 Proline Promass S 100 Tri-Clamp +1,5 (+0.06) -2,0 (-0.08) A0015625  34 Engineering unit mm (in) 1", 1½", 2" - Tri-Clamp for pipe size: 1.4435 (316L) (order code for "Process connection", option FTW) Clamp [mm] [in] [mm] [mm] [mm] ¹⁄₂...
  • Page 56 Proline Promass S 100 DIN 11851 threaded hygienic connection (sanitary connection) +1,5 (+0.06) -2,0 (-0.08) A0015628  35 Engineering unit mm (in) Threaded hygienic connection (sanitary connection) DIN 11851: 1.4435 (316L) (order code for "Process connection", option KCW) [mm] [in]...
  • Page 57 Proline Promass S 100 Threaded hygienic connection DIN 11864-1 Form A: 1.4435 (316L) (order code for "Process connection", option KHW) [mm] [in] [mm] [mm] Rd 28 × ¹⁄₈ 16.00 Rd 34 × ¹⁄₈ 16.00 Rd 52 × ¹⁄₆ 26.00 Rd 65 × ¹⁄₆...
  • Page 58 Proline Promass S 100 DIN 11864-3 Form A (clamp connection) +1,5 (+0.06) -2,0 (-0.08) A0016903  38 Detail X: Asymmetrical process connection; the part shown in gray is provided by the supplier. Engineering unit mm (in). Clamp connection DIN 11864-3 Form A: 1.4435 (316L) (order code for "Process connection", option...
  • Page 59 Proline Promass S 100 Clamp connection DIN 32676: 1.4435 (316L) (order code for "Process connection", option KQW) [mm] [mm] [mm] [mm] 50.5 26.00 50.5 38.00 64.0 50.00 1 097 3A version available (order code for "Additional approval", option LP) ISO 2852 (clamp connection) +1,5 (+0.06)
  • Page 60 Proline Promass S 100 Threaded hygienic connection ISO 2853: 1.4435 (316L) (order code for "Process connection", option JSE) [mm] [mm] [mm] [mm] 37.13 22.6 37.13 22.6 37.13 22.6 50.65 35.6 64.10 48.6 1 107 3A version available (order code for "Additional approval", option LP) SMS 1145 (threaded hygienic connection) +1,5 (+0.06)
  • Page 61 Proline Promass S 100 Process connections in US units Flange connections ASME B16.5 100 (4") 125 (5") ≤ ≥ +1.5 (+0.06) ±3.5 (±0.14) −2.0 (–0.08) A0015621  43 Engineering unit mm (in) Flange according to ASME B16.5, Cl 150: 1.4404 (316/316L) (order code for "Process connection", option AAW) Surface roughness (flange): EN 1092-1 Form B1 (DIN 2526 Form C), Ra 3.2 to 6.3 µm...
  • Page 62 Proline Promass S 100 Tri-Clamp +1,5 (+0.06) -2,0 (-0.08) A0015625  44 Engineering unit mm (in) 1", 1½", 2" - Tri-Clamp for pipe size: 1.4435 (316L) (order code for "Process connection", option FTW) Clamp [in] [in] [in] [in] [in] ³⁄₈...
  • Page 63 Proline Promass S 100 SMS 1145 (threaded hygienic connection) +1,5 (+0.06) -2,0 (-0.08) A0015628  45 Engineering unit mm (in) Threaded hygienic connection SMS 1145: 1.4435 (316L) (order code for "Process connection", option SAW) [in] [in] [in] [in] ³⁄₈ Rd 40 × ¹⁄₆...

  • Page 64: Weight

    Proline Promass S 100 Accessories Purge connections / secondary containment monitoring Order code for "Sensor options", option CH A0003288 [mm] [in] [in] [mm] [in] [mm] [in] [mm] [in] ³⁄₈ ½ NPT 0.98 3.23 4.34 ½ ½ NPT 0.98 3.23 8.04 ½...

  • Page 65: Materials

    Proline Promass S 100 Safety Barrier Promass 100 49 g (1.73 ounce) Materials Transmitter housing • Order code for "Housing", option A "Compact, aluminum coated": Aluminum, AlSi10Mg, coated • Order code for "Housing", option B "Compact, hygienic, stainless": Hygienic version, stainless steel 1.4301 (304) •...

  • Page 66: Process Connections

    Proline Promass S 100 Sensor housing • Acid and alkali-resistant outer surface • Stainless steel 1.4301 (304) Measuring tubes Stainless steel, 1.4539 (904L) Surface quality (wetted parts) = 0.8 µm (32 µin) mechanically polished Process connections • Flanges according to EN 1092-1 (DIN 2501) / according to ASME B16.5 / according to JIS B2220: Stainless steel, 1.4404 (316/316L)

  • Page 67: Local Display

    Proline Promass S 100 Reliable operation • Operation in the following languages: – Via "FieldCare" operating tool: English, German, French, Spanish, Italian, Chinese, Japanese – Via Web browser: English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Bahasa (Indonesian), Vietnamese, Czech •...

  • Page 68: Service Interface

    Proline Promass S 100 A0016961 Ethernet network Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Add-on Profile Level 3 for "RSLogix 5000" (Rockwell Automation) or with Electronic Data Sheet (EDS) Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or with "FieldCare"...
  • Page 69 Proline Promass S 100 HART A0016926  48 Connection for the order code for "Output", option B: 4-20 mA HART, pulse/frequency/switch output Service interface (CDI -RJ45) of the measuring device with access to the integrated Web server Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or with "FieldCare"...

  • Page 70: Certificates And Approvals

    Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 71: Ex Approval

    "Safety Instructions" (XA) document. Reference is made to this document on the nameplate. The separate Ex documentation (XA) containing all the relevant explosion protection data is available from your Endress+Hauser sales center. ATEX/IECEx Currently, the following versions for use in hazardous areas are available:...

  • Page 72: Other Standards And Guidelines

    Proline Promass S 100 • With the PED/G1/x (x = category) marking on the sensor nameplate, Endress+Hauser confirms compliance with the "Essential Safety Requirements" specified in Annex I of the Pressure Equipment Directive 97/23/EC. • Devices bearing this marking (PED) are suitable for the following types of medium: –...

  • Page 73: Application Packages

    The application packages can be ordered from Endress+Hauser either directly with the device or subsequently. Detailed information on the order code in question is available from your local Endress +Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 74: Communication-Specific Accessories

    The application already contains the data of your Endress+Hauser device. Endress +Hauser also takes care of maintaining and updating the data records.

  • Page 75: System Components

    • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Standard documentation...
  • Page 76 Registered trademark of the Microsoft Corporation, Redmond, Washington, USA TRI-CLAMP ® Registered trademark of Ladish & Co., Inc., Kenosha, USA Applicator ® , FieldCare ® , Field Xpert , HistoROM ® , TMB ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...
  • Page 80 www.addresses.endress.com...
