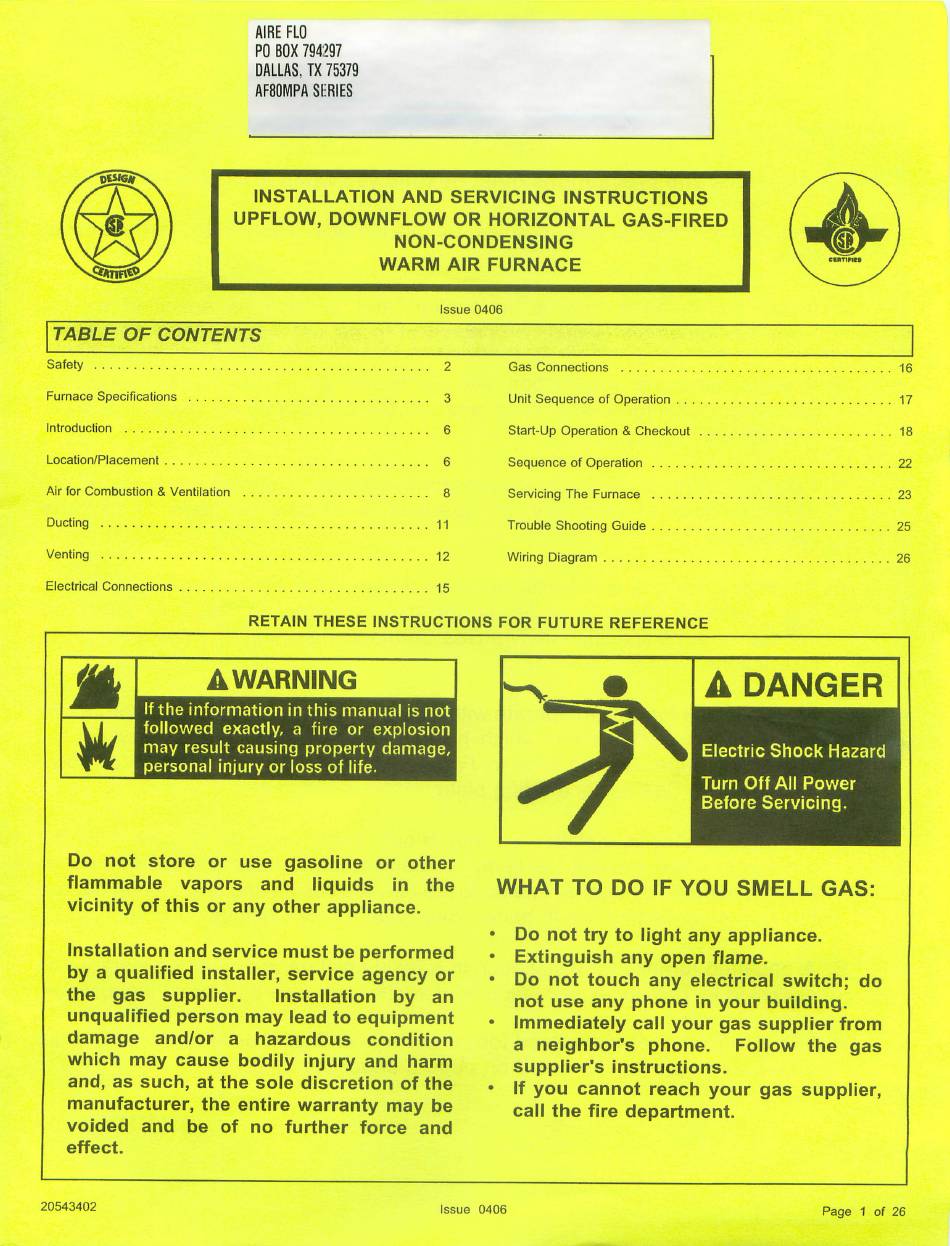

Aire-Flo AF80MPA Series Installation And Servicing Instructions

AIRE FLO
PO BOX 794297
DALLAS, TX 75379
AF80MPA SERIES
INSTALLATION AND SERVICING INSTRUCTIONS
UPFLOW, DOWNFLOW OR HORIZONTAL GAS-FIRED
NON-CONDENSING
WARM AIR FURNACE
Issue 0406
TABLE OF CONTENTS
Safety 2
Furnace Specifications 3
Introduction 6
Location/Placement 6
Air for Combustion & Ventilation 8
Ducting n
Venting 12
Electrical Connections 15
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Gas Connections
Unit Sequence of Operation . . .
Start-Up Operation & Checkout
Sequence of Operation
Servicing The Furnace
Trouble Shooting Guide
Wiring Diagram
16
17
18
22
23
25
26
A WARNING
If the information in this manual is not
followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier. Installation by an
unqualified person may lead to equipment
damage and/or a hazardous condition
which may cause bodily injury and harm
and, as such, at the sole discretion of the
manufacturer, the entire warranty may be
voided and be of no further force and
effect.
A DANGER
Electric Shock Hazard
Turn Off All Power
Before Servicing.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
' Extinguish any open flame.
' Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
20543402
Issue 0406
Page 1 of 26
