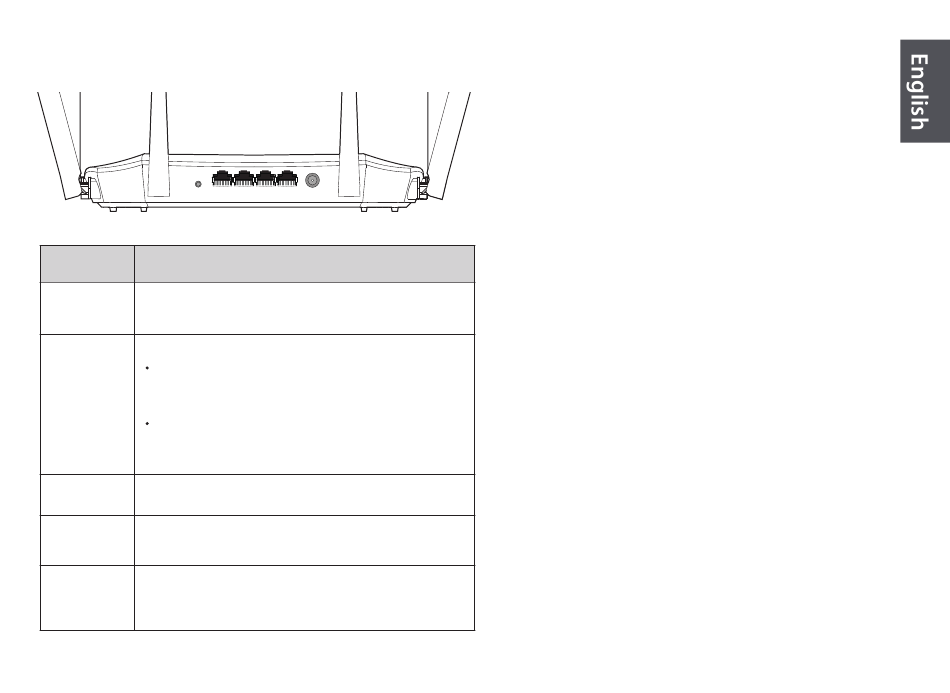

Jack, ports and buttons

WPS/RST IPTV/3
Description
Jack/Port/Button
Power jack.
POWER
Used to connect to the included power adapter.
Used to start the WPS negotiation process, or to reset the router.
WPS: Press the button of the router for 1 to 3 seconds. Within 2
minutes, enable the WPS function of the other WPS-supported
WPS/RST
device to establish a WPS connection.
Reset: When the SYS LED indicator blinks, hold the button down
for about 8 seconds, release it when all the LED indicators blink
once.
WAN Used to connect this router to the internet.
They are LAN ports used to connect to the wired devices such
1/2
as computers or switches.
By default, it is a LAN port.
IPTV/3
If the IPTV function of the router is enabled, it serves only as an
IPTV port used to connect to a set-top box.
2 WAN POWER
1
