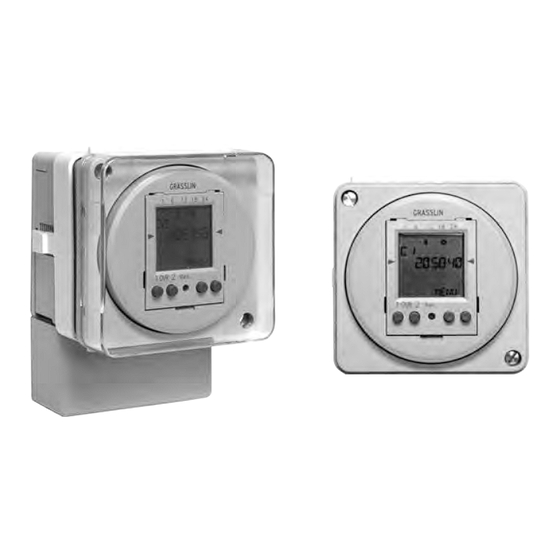

Intermatic FM2D50 Series Installation Instructions

FM2D50 Series
Two Circuit Electronic
24 Hour or 7 Day
Time Switches
APPLICATION
Time based control of lighting, ventilating, heating, cooling or other
electrical loads in commercial and industrial applications. The FM2D50
time switches are programmable for 24-hour or 7-day schedules as well
as a "8th day" or holiday schedule.
The FM2D50 series is intended for either surface or Flush panel
mounting. Din rail mounting is also available by ordering the accessory
model #MB-DIN. The control is completely enclosed in a plastic housing
and includes a terminal cover and sub-base for installation and hard wiring.
It is also supplied with a clear plastic snap-on dust cover.
TECHNICAL DATA
Output – SPDT relay with dry contacts
Switch Rating: -1/2 hp, 120V ac
-1hp, 240V ac
-16A, 277V ac resistive
-12A Ballast, 120V ac
-8A Ballast, 240V ac
-720 VA 240V ac Pilot Duty
-360 VA 120V ac Pilot duty
-1000W Tungsten, 240V ac
-600W Tungsten, 120V ac
3 year battery back-up
Supply voltages: Separate Models – 12VDC, 24VAC/DC, 120VAC,
208/240VAC, all 60Hz (refer to product label)
Shortest switch time: 1 minute
Ambient Temperature Range –20°F to 140°F (–28°C to 60°C)
AM/PM LCD display
Input Draw: 4VA
Screw terminal connections
1/4" quick connects
Accuracy ± 4 minutes per year
Agency Approvals: UL Recognized
Installation
To the installer:
1. Read operating instructions carefully.
2. Check the input and output ratings marked on the unit to make
sure this product is suitable for your power supply and applica-
tion.
3. Disconnect power supply prior to installation to prevent electri-
cal shock.
4. Wire in accordance with National and Local electrical code
requirements.
SURFACE MOUNTING
Remove cover, loosen two screws on opposite corners. Remove the
housing that surrounds the time switch and the terminal cover away from
the base. Remove timer module by pulling straight out.
Place screw through 3 mounting holes in base and screw to back
panel or wall.
Wire in accordance with instructions. Replace terminal cover and
push timer firmly onto base. Now replace housing and secure with
screws.
PANEL MOUNTING
Cut a square hole 2-5/8" x 2-5/8" (66mm x 66mm) in the front of the
panel. Insert the time switch through the opening. With a screwdriver,
press down and turn outer screws (A) until flanges are in position to fas-
ten the unit in front panel, then release.
A
A
Use 1/4" quick connects and make connections in accordance with the
wiring diagram shown and applicable code requirements.
