FM1D14 Series 24-Hour/7-Day Time Switch Operation and User Instructions
WARNING
Risk of Fire or Electric Shock
• Disconnect power prior to installation.
• Connect FM1D14 wiring in accordance with all applicable national and local
electrical code requirements.
Specifications
Input
12 VDC (FM1D14-12)
24 VAC and VDC, 50/60 Hz (FM1D14-24)
120-277 VAC, 50/60 Hz (FM1D14-AV)
Output
NO Contact
General Purpose: 15 A, 277 VAC
Tungsten: 1000 W, 120 VAC
Ballast : 8 A, 277 VAC
Pilot Duty: B300
Electronic Ballast: 4.9 A, 120 VAC
Motor: 10 FLA, 60 LRA @ 250 VAC; ½ HP,
120 VAC; 1 HP, 250 VAC
Operating Temperature: -40˚ F to 135˚ F (-40˚ C to 55˚ C)
Carry-over: 2500 hours fully charged
Description
This manual provides installation and
programming instructions for the FM1D14
series timer.
Mounting the FM1D14 Series Timer
The standard FM1D14 timer can be surface mounted inside a panel or flush
mounted. Mount the timer as required. Refer to the dimension drawing in
Figure 2.
2.36 in.
[60 mm]
2.13 in.
[54 mm]
2.36 in.
[60 mm]
.14 in
[3.56 mm]
Connecting the FM1D14 Series Timer Wiring
Follow this procedure to connect the FM1D14 timer wiring.
1. Make sure supply power is disconnected.
2. Check input and output ratings marked on timer to verify the product is
suitable for your supply voltage, load, and application.
3. Connect the FM1D14 wiring. See Figure 3 for reference.
NC Contact
General Purpose: 15 A, 277 VAC
Resistive: 12 A, 24 VDC
Ballast : 8 A, 120 VAC
Motor: 10 FLA, 60 LRA @ 250 VAC; ½ HP,
120/240 VAC
Timer Day h+
+1h OVR
Reset

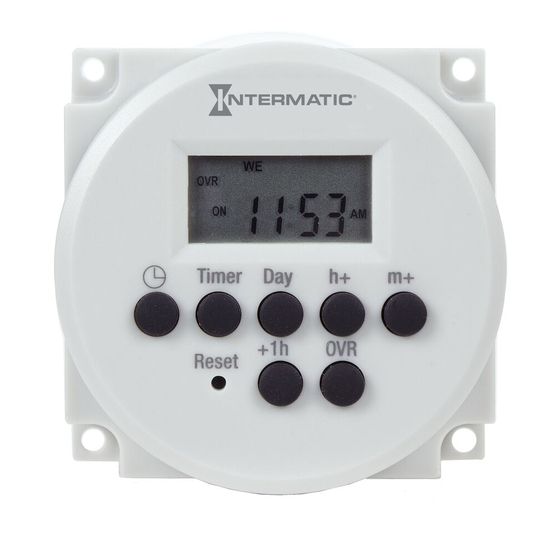

Figure 1. FM1D14 Timer
1.26 in.
1 2 3 4 5
[32 mm]
.14 in
[3.56 mm]
Figure 2. FM1D14 Timer Dimensions
M
1
L1 L2/N
Typical Wiring (12 VDC Application)
+
M
1
12 VDC
(+)
Figure 3. Connect FM1D14 Wiring (Front View Shown).
Setting the Time of Day
Follow this procedure to set the time of day and day of the week.
1. Press and release the Reset button with a blunt object to reset the unit.
The timer screen flashes.
2. Press and hold
screen.
3. Take one of these actions.
m+
If...
Your time zone currently is in
Daylight Saving Time,
Your time zone is not in
Daylight Saving Time,
4. Press and hold
current hour.
5. Press and hold
current minute.
6. Press and hold
current day.
Programming Events
To set ON/OFF event pair, set ON event and
then repeat procedure to set OFF event.
The timer enables up to 7 ON/OFF event
pairs.
1. Press the Timer button. Dashed lines
appear to indicate no event is set for
event 1.
2. Press Day to select the days of the week for the ON event.
NOTE: To set the ON event:
ON a Specific Day
Every Day of Week
Every Weekday:
Every Weekend:
Monday through Saturday
Monday, Wednesday, Friday Select: MO, WE, FR
M
COM NO NC
2
3 4 5 1
NO
(Dry Contact)
24-277
VAC
NC
L1 L2/N
(Dry Contact)
Typical Wiring (24 VDC Application)
-
+
M
COM NO NC
2 3 4
5 1
LOAD
24 VDC
(-) (+)
and h+ simultaneously to access the 12:00 AM
Then...
Press the +1h button.
Go to step 4.
Go to step 4 to set the
current time.
and press h+ repeatedly until you advance to the
and press m+ repeatedly until you advance to the
and press Day repeatedly until you advance to the
Select: The desired day
Select: MO, TU, WE, TH, FR,
SA, SU
Select: MO, TU, WE, TH, FR
Select: SA, SU
Select: MO through SAT
Typical Wiring (24-277 VAC Application)
COM NO NC
2
3 4 5
LOAD
-
COM NO NC
2 3 4
5
LOAD
(-)
MO TU WE TH FR SA SU
ON
