Material removed (P/N
& material type)
Painted metal enclosure
22Ga. EG w/powder coat
(Interpon 700 -
epoxy/polyester)
EMI Shielding
Mylar

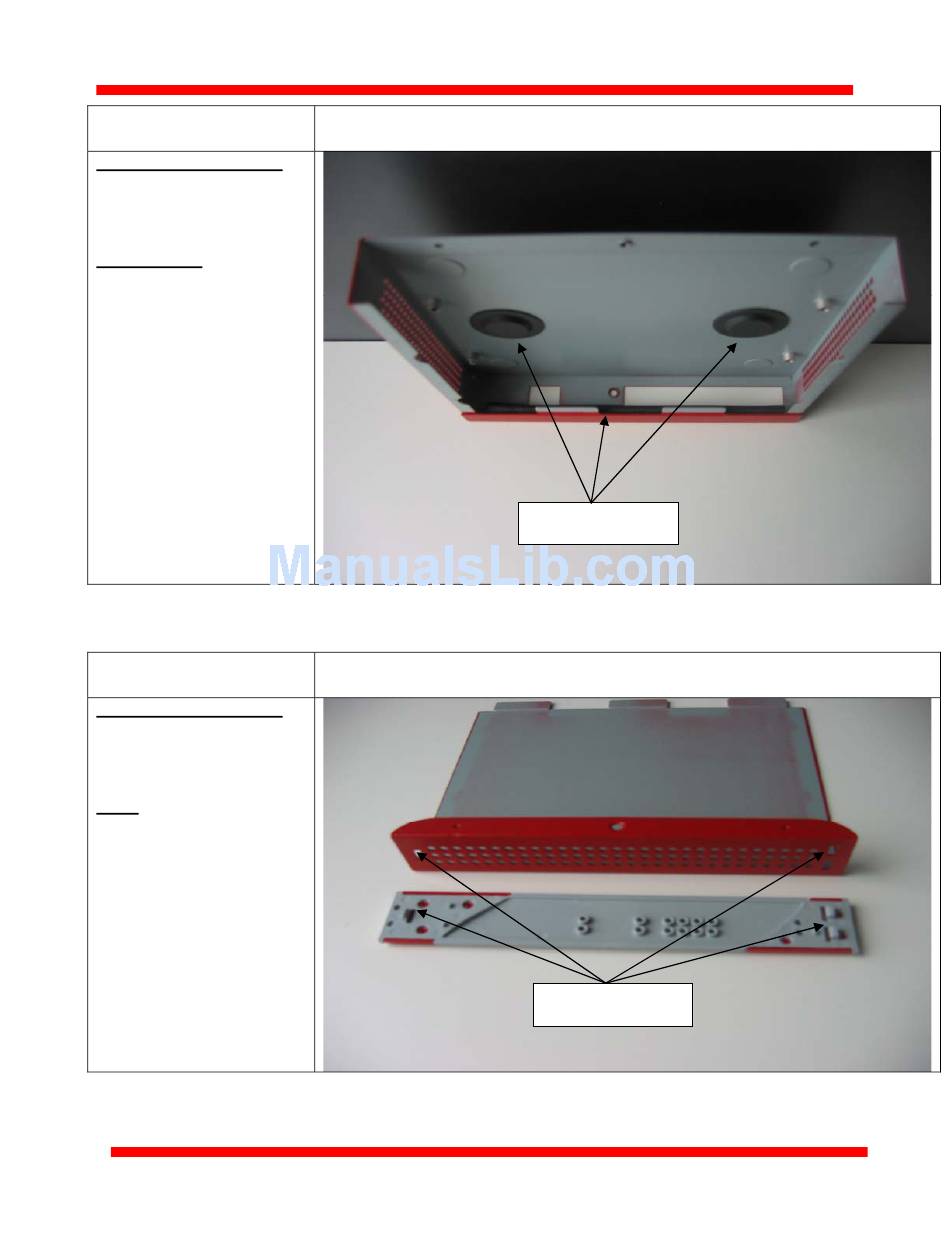

3.5 – Remove bezel from unit top - depress tabs to disengage
Material removed (P/N
& material type)
Painted metal enclosure
22Ga. EG w/powder coat
(Interpon 700 -
epoxy/polyester)
Bezel
PC/ABS
3.6 – Remove RF module (mini-PCI) clip and disconnect module from main
PCBA
WatchGuard Technologies.
Authorization and Revision History for this document is available in the WatchGuard ECO system
Design for Manufacturing and Environment Document
Instruction visual
Instruction visual
Doc #480-2523-001 Rev. A
Remove EMI shielding.
3 places
Depress tabs to
disengage
Page 6 of 8
