3.0 Instruction

3.1 -Remove wireless antenna and antenna hardware
Material removed (P/N
& material type)
Antenna
1305-002 - TPE, PC,
reverse SMA connector, RG-
178 coaxial cable; 2.4Ghz; 2
ea.
Washer
No p/n - Gold plated
brass; 2 ea.
Nut
No p/n - Gold plated brass
WatchGuard Technologies.
Authorization and Revision History for this document is available in the WatchGuard ECO system
Design for Manufacturing and Environment Document

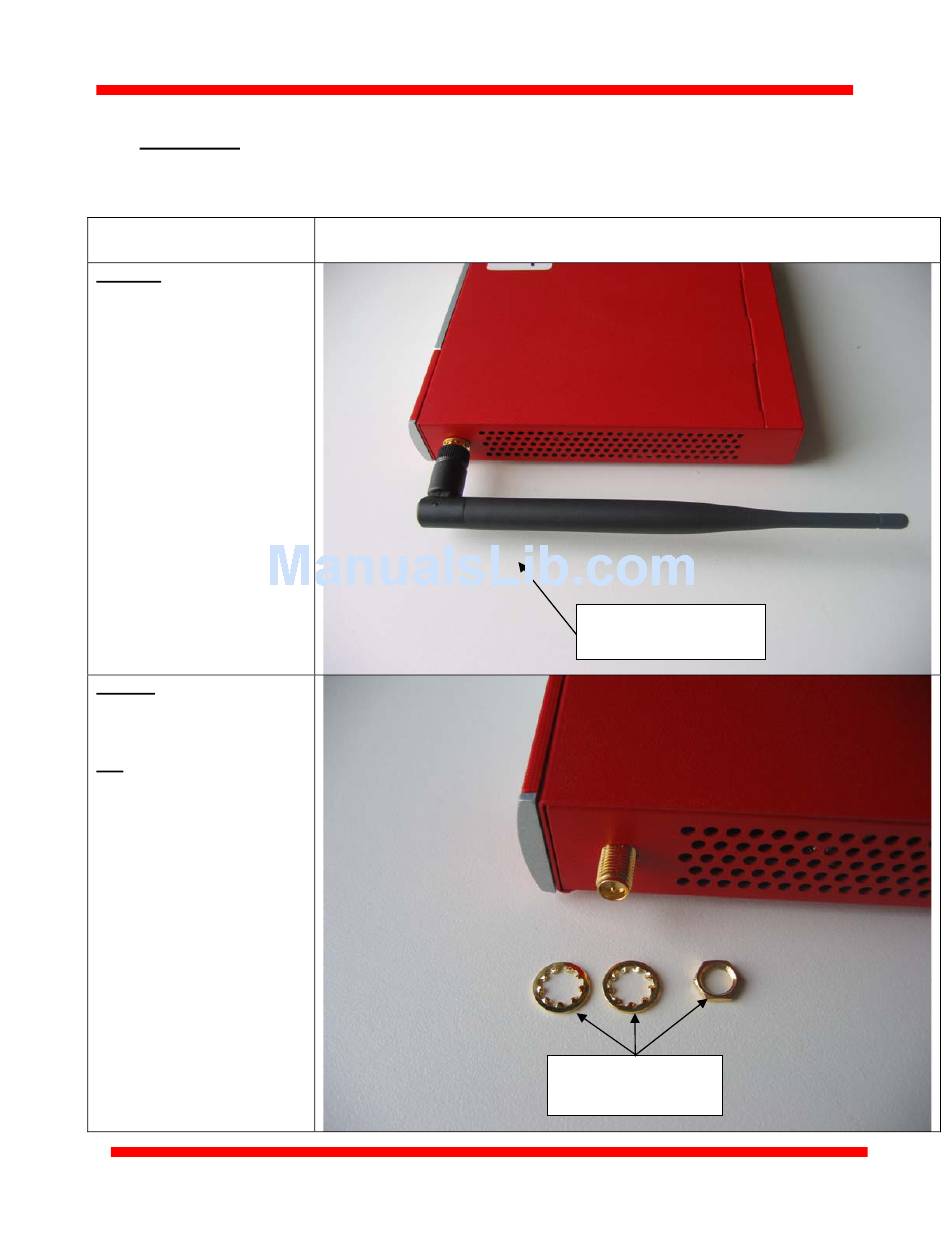

Instruction visual
Doc #480-2523-001 Rev. A
Remove antenna by
unscrewing from chassis
post, 2 sides
Remove hardware; 2
sides
Page 3 of 8
