Elmo Cast Instruction Manual

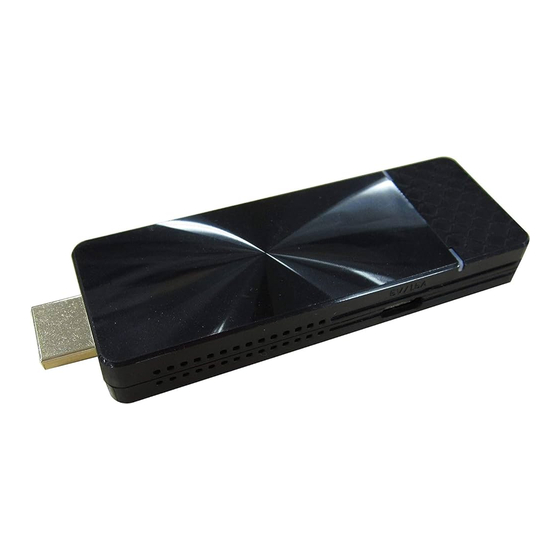

Multi-cast receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Multi-cast receiver
ELMO Cast
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cast and is the answer not in the manual?

Questions and answers

Related Manuals for Elmo Cast

Summary of Contents for Elmo Cast

  • Page 1 Multi-cast receiver ELMO Cast Instruction Manual...

  • Page 2: Table Of Contents

    ■ Contents ■ Contents ............................ 2 ■ Important safeguards ....................... 3 Usage precautions .......................... 7 ➊ Before use ..........................8 ◆Package contents ......................8 ◆Part names........................9 ■Receiver (dongle)......................9 ■Home screen ......................... 10 ➋ Basic operations........................11 ◆Connecting to a projector or display monitor ..............11 ◆Miracast streaming from the document camera ..............

  • Page 3: Important Safeguards

    ■ Important safeguards ■ Read Instructions All the safety and operating instructions should be read before the appliance is operated. ■ Retain Instructions The safety and operating instructions should be retained for future reference. ■ Heed Warnings All warnings on the product and in the operating instructions should be adhered to. ■...
  • Page 4 ■ Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
  • Page 5 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of SA 1965 sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature...
  • Page 6 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limi ts established by the FCC for this equipment.

  • Page 7: Usage Precautions

    Usage precautions ■ About electric waves used by this product This product uses electric waves in the 5.0GHz band (default setting) and 2.4 GHz band. When using this product, a radio station license is not necessary. However, please note the following precautions. Do not use this product near the followings: ・In-factory radio stations for mobile unit identification systems (radio stations that require a license) used in production lines of factories...

  • Page 8: ➊ Before Use

    ➊ Before use ◆Package contents The items below are included in the package. If any item is missing, contact the dealer from whom you purchased this product. HDMI cable USB cable for power supply HDMI receiver (dongle) ） （Type-C to A Power plug AC adapter Quick Start Guide...

  • Page 9: Part Names

    ◆Part names ■Dongle Number Name Description ① HDMI port To connect to the HDMI port of a device such as TV. ② Status LED Lights up blue when the power is turned on. ③ USB port for power To connect to the AC adapter with the supplied USB supply cable (Type-C to TypeA）.

  • Page 10: Home Screen

    ■Home screen Description Number ① The connection destination of ELMO Cast. ② Password of the access point of ELMO Cast. ③ Status of ELMO Cast. No connection.（2.4GHz） No connection.（5.0GHz） Direct connection（WiFi）only. Connection via router only. （Additional network configuration required.⇒P.20） Direct connection and connection via router.

  • Page 11: ➋ Basic Operations

    Then connect the adapter to a wall outlet. 3. In about 3 seconds after the adapter is connected to the outlet, the power of the receiver turns on (Status LED: blue) and the "ELMO Cast" Home screen appears on the screen. Monitor or projector...

  • Page 12: Miracast Streaming From The Document Camera

    ◆Miracast streaming from the document camera 1. Select “Miracast” from the menu of the document camera. 2. Select “ELMOCast” from a list of connectable devices. 3. When the connection is established, the image of the document camera appears on the screen. ※For details of how to do Miracasting, refer to the instruction manual of the respective document cameras.

  • Page 13: Switching Between Connected Devices

    5. Tap the Other icon [ ] on the top right and tap [Cast]. 6. Select “ELMO Cast” from a list of connectable devices. Perform Chromecast (mirroring) from your device. ※No matter which OS is used, you need to connect to the network when Miracasting from the Chrome browser.

  • Page 14: ➌ Advanced Operations

    ➌ Advanced operations ◆Configuring settings of the receiver Connect your device to the receiver via WiFi. Start the browser on your device and enter the IP address (default value: http://192.168.168.1) of the receiver in the address field to access the Settings screen. When you access for the first time, the selection screen for the country in which this receiver is used will be displayed.
  • Page 15 ■Login to the Administrator account You can change detailed settings by logging in to the Administrator account. When you log in for the first time, you will be asked to change your password. Follow the steps below to change your password. You can skip changing your password, but unless you change your password, you will be prompted to change your password every time you log in.
  • Page 16 ■ Home menu Menu item Description Connected Devices To display the device name and IP address of the connected device. Conference Control To manage casting of each device. Device Management To set the display language and resolution. Network Management To configure the network settings. Admin settings To configure the advanced settings.
  • Page 17 To set the maximum number of devices than can be connected to the Immediately Connections receiver wirelessly. 4 ／ 8 ✔ ／ 16 ／ 32 Android audio Not used. Immediately streaming Google Cast To set ON✔/OFF the Google Cast function. Immediately Support Miracast Support To set ON✔/OFF the Miracast function. After reboot...
  • Page 18 To set ON/OFF✔ the PIN code setting. Legacy To enable WiFi 2.4GHz by setting this mode to ON. After reboot ※Note that turning this setting ON will degrade the performance. WiFi mode With this receiver, 5GHz band and 2.4GHz band cannot be used at the same time.
  • Page 19 ●Administrator settings (✔:Default setting) When the Menu item Description changes take effect Immediately Admin Password To change admin password. After reboot Enterprise WiFi To change the wireless certificate from WPA2-PSK to WPA2-EAP. A digital certificate is required for WPA2-EAP. Host’s Authority Not used.

  • Page 20: Connecting The Receiver To The Network

    ◆Connecting the receiver to the network 1. Establish a WiFi connection between your device and the dongle. 2. Access the Settings screen (Home menu) and select the "Network Management" menu. (⇒P.19) 3. Select "Connect via 5G router" to display the "Add network" screen. Click the Refresh button on the top right to display a list of available access points.

  • Page 21: ❹ Faq（Frequently Asked Questions

    Ａ. The dongle does not have a power switch, so disconnect the USB cable from the dongle or disconnect the AC adapter from the outlet. Ｑ. How do I change the settings such as SSID and password of ELMO Cast? Ａ. Refer to P.14-P.20.

  • Page 22: ❺ Troubleshooting

    ❺ Troubleshooting ◆Symptom, possible cause, and remedy Check the following items. If any abnormality is found, consult the dealer from whom you purchased this product or our nearest branch/office. Symptom Possible cause/ remedy ・The dongle is not connected to the HDMI input port of a display monitor or projector. No image is ・The AC adapter is disconnected from the wall outlet.
  • Page 23 ・Miracast projection is in progress. During miracast projection other device cannot be The receiver does not appear in the list of connected and is not displayed in the list of connection destination. The device will be connection displayed in the list after the current miracast projection is disconnected. destination.

  • Page 24: ➏ Specifications

    ➏ Specifications ◆Hardware Model name ELMO Cast Network standards IEEE802.11a/b/g/n/ac By default, only 5GHz band can be used. The 2.4GHz band and 5GHz band cannot be used simultaneously. Protocol TCP / IP, SNMP IP address setting DHCP（Auto）/ Manual IP address configuration HDMI output resolution 4,096×2,160（24P）※1...

  • Page 25: System Requirements

    ◆System requirements Recommended Recommended conditions of hardware conditions iOS device iOS10 or later Recommended model： iPhone 5 or later iPad 4th generation or later iPad mini 2 or later Android device Android4.4 or later Windows PC Windows 8.1 or later CPU：Intel Core i5 (2GHz or higher processor) ※Windows Starter RAM：2GB or higher (8GB or higher recommended)

  • Page 26: Trademarks And Licenses

    ■ Trademarks and licenses is the registered trademark of ELMO Co., Ltd. Apple TV, Airplay, iPhone, iPad, Mac OS, and Macintosh are registered trademarks of Apple Inc. in the U.S. and other countries. iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
  • Page 27 株式会社エルモ社 OVERSEAS SUBSIDIARY COMPANIES 〒457-0078 ELMO USA CORP. 名古屋市南区塩屋町一丁目３番地４ □Headquarters Web：https://www.elmo.co.jp 6851 Jericho Turnpike Suite 145 製品のお問い合わせは、下記オフィスへ Syosset, NY 11791 Tel. (516) 501-1400 □ 札幌オフィス Fax.(516) 501-0429 〒060-0908 札幌市東区北 8 条東 3 丁目 1-1 E-mail： elmo@elmousa.com 宮村ビル 3Ｆ Web：https://www.elmousa.com/ TEL.011-594-8450 ELMO Europe SAS □...
