EN
PRESSURE WASHER
LAVEUSE À PRESSION
FR
ES
LAVADORA A PRESIÓN
PWA201
GPW2000
OPERATOR MANUAL
MANUEL DE L'UTILISATEUR
MANUAL DEL OPERADOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPW2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GreenWorks GPW2000

Summary of Contents for GreenWorks GPW2000

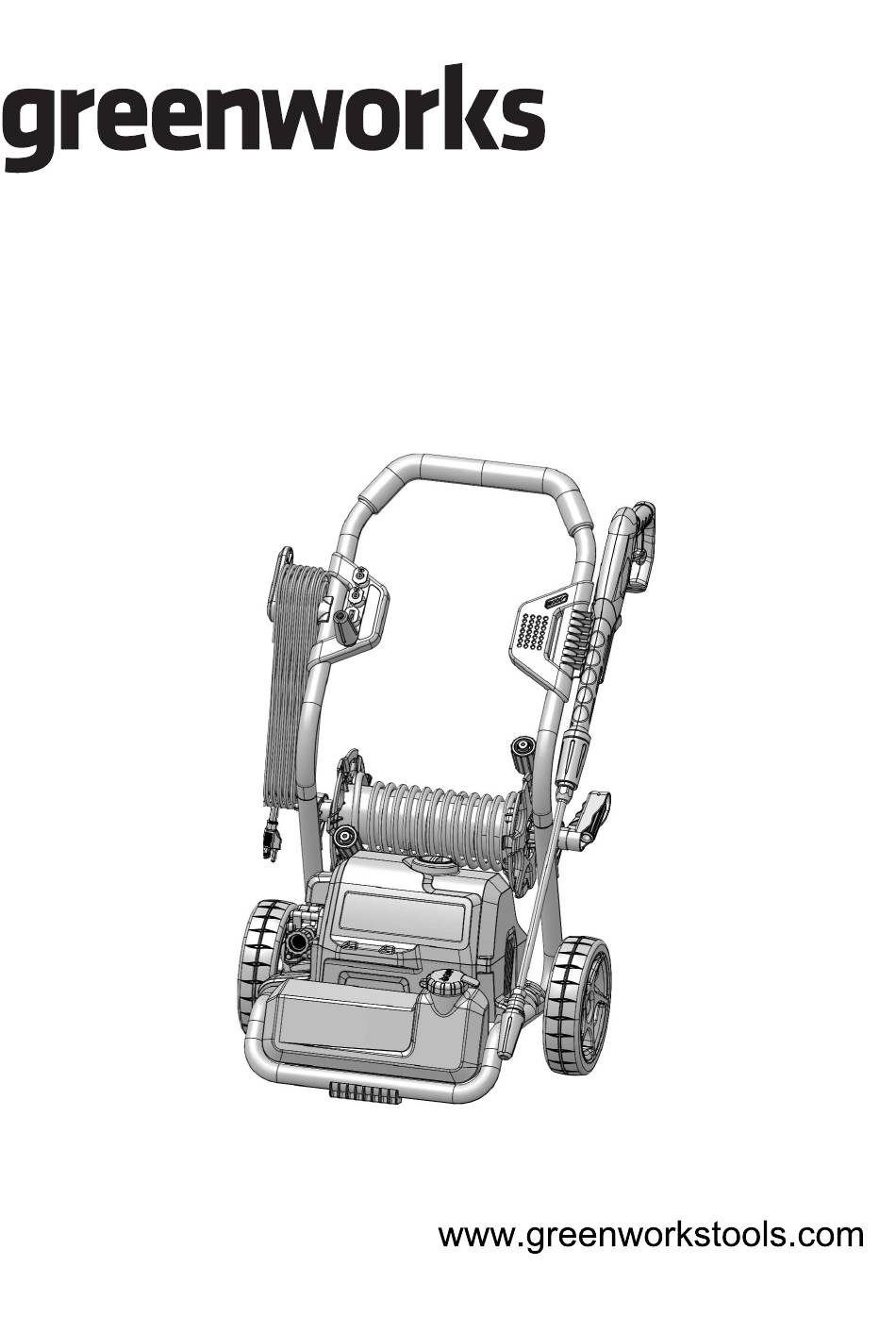

  • Page 1 GPW2000 PRESSURE WASHER OPERATOR MANUAL MANUEL DE L’UTILISATEUR LAVEUSE À PRESSION LAVADORA A PRESIÓN MANUAL DEL OPERADOR PWA201...

  • Page 2: Table Of Contents

    English Install the spray wand........7 Description......... 4 Install the high pressure hose......7 Purpose.............. 4 Operation........... 7 Overview............4 General power tool safety Connect the water supply to the machine..7 Use the gun............8 warnings..........4 Change the nozzle..........8 General power tool safety warnings....

  • Page 3: Description

    English DESCRIPTION GENERAL POWER TOOL SAFETY WARNINGS PURPOSE • The machine is not intended for use by persons (including The machine is used to used to clean vehicles, boats, children) with reduced physical, sensory or mental buildings, porches, decks, patios, and driveways. capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction For domestic use only, not for professional use, and for...

  • Page 4: Pressure Washer Safety Warnings

    English CHILD SAFETY • Do not abuse the cord. Never use the cord to carry the product or to disconnect the plug from an outlet. Keep Tragic accidents can occur if the operator is not aware of the cord away from heat, oil, sharp edges, or moving parts. presence of children.

  • Page 5: Risk Levels

    English PROPOSITION 65 Symbol Explanation Warning! Never point the gun to hu- WARNING man, animals, the machine body, This product contains a chemical known to the state of power supply or any electric applian- California to cause cancer, birth defects or other ces.

  • Page 6: Install The Gun Holder

    English INSTALL THE GUN HOLDER INSTALL THE SPRAY WAND 1. Aligh the screw sleeves of the gun holder (11) with the screw holes on the upper handle. 2. Push the screws through the screw sleeves and tighten 1. Push the end of the spray wand (2) into the gun (3). them.

  • Page 7: Use The Gun

    English USE THE GUN WARNING When you operate the self-coiling hose, make sure that the hose has no blockage. WARNING • The water supply must come from the water main • Do not use hot water • Do not use water from ponds or lakes WARNING Do the local regulations when you connect the garden hose to the water supply.

  • Page 8: Add Detergent

    English ADD DETERGENT 4.3.1 NOZZLE TYPE SPRAY TIP APPLICATION Green - Narrow fan tip (25° ) • The green pressure washer tip pro- vides high versatility with its 25 de- gree angle tip. Referred to as the washing tip, because it provides ade- quate pressure to remove dirt from surfaces, but is designed to not dam- age many surfaces.

  • Page 9: Start The Machine

    English START THE MACHINE WARNING Do not use strong solvents or detergents on the plastic housing or components. WARNING Do not let brake fluids, gasoline, petroleum-based materials touch the plastic parts. Chemicals can cause damage to the plastic, and make the plastic unserviceable. WARNING Replace the power cord by an approved service center.

  • Page 10: Store The Machine

    English STORE THE MACHINE PROBLEM POSSIBLE SOLUTION CAUSE WARNING The machine does The diameter of Replace with a 1” Make sure that the spray gun, the high pressure hose and the not reach high garden hose is too (25 mm) or 5/8” pump are dry.

  • Page 11: Technical Data

    (3) release pres- years against defects in materials, parts or workmanship. sure. Greenworks, at its own discretion will repair or replace any 3. Turn the ma- and all parts found to be defective, through normal use, free chine "ON".

  • Page 12: Exploded View

    English EXPLODED VIEW ITEM NO. PART NO. DESCRIPTION 349011635 Foam grip 331011635 Upper handle 311201635 Gun holder assy 322011628 Screw ST5.5*22-F 311211635 Spray tip panel assy 34139319 25 degree nozzle 31225363 40 degree nozzle 31240363 Soap nozzle 31208363 Turbo Nozzle 341111635 Cord arm basement 341101635...
  • Page 13 English ITEM NO. PART NO. DESCRIPTION 322031635 Screw ST4.2*16-F 341011635AB Upper housing 341171635 Heat isolation board 33306847 Spring button 332021635 Water outlet connector 34202368 O-ring 32202368 Screw ST4.2*16-F 341201635AB Water outlet connecotr press plate 31101363A Motor pump assy 33302365 U pin 311221635 Water inlet connector assy 322011635...
  • Page 14 English ITEM NO. PART NO. DESCRIPTION 341141635 Switch box 34226316A Motor seal 34201301A Wire seal 341151635 Switch lever 34216301A O-ring 363021628 Power switch 341131635 Switch box cover 311301635 Hose reel assy 31160363 High pressure hose assy 31140363-1 GW gun handle assy 31145363 GW gun wand assy 33201671...
