Bagless upright vacuum cleaner

Advertisement

Quick Links

Bagless Upright
Vacuum Cleaner
Instruction Manual
L18VUR10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L18VUR10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logik L18VUR10

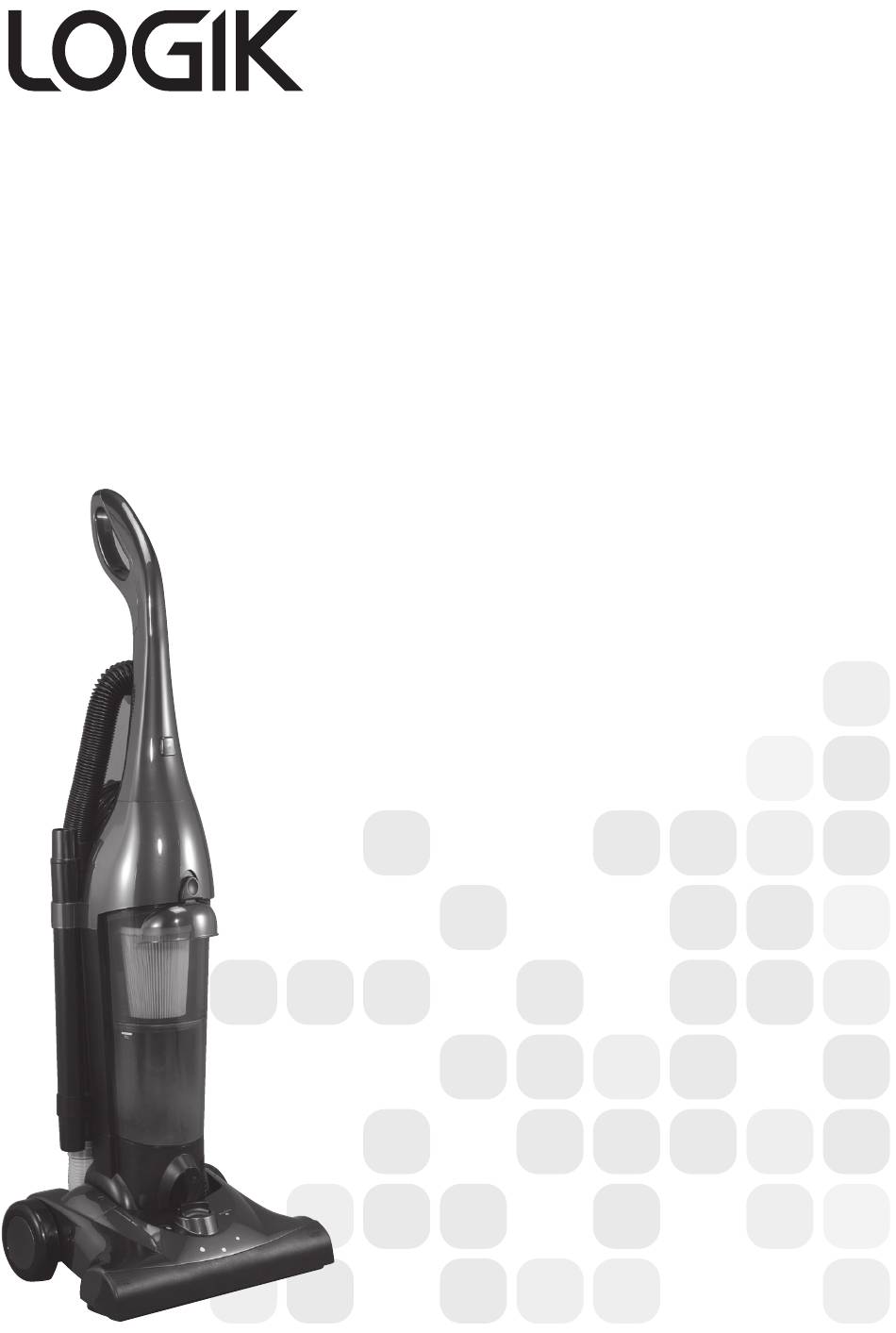

  • Page 1 Bagless Upright Vacuum Cleaner Instruction Manual L18VUR10...
  • Page 2: Table Of Contents

    Contents Unpacking ........................3 Product Overview ......................4 Getting Started ......................5 Assembling the Vacuum Cleaner ....................5 Using the Mains Cable Holders ......................8 Basic Operation ......................9 Operating the Vacuum Cleaner .....................9 Adjusting the Carpet Pile Height Setting ................10 Using the Hose with Accessories ....................11 Cleaning and Maintenance ..................
  • Page 3: Unpacking

    Congratulations on the purchase of your new Logik Vacuum Cleaner. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.
  • Page 4: Product Overview

    Product Overview Handle Dust Tank Upper Hose Hose Clip Handle Fastener Mains Cable Hook Crevice Tool (Inside extension tube) Mains Cable Holders Dust Tank Release Button Mains Cable Dust Tank Handle Small Brush HEPA Filter Power On/Off Pedal Extension Tube Lower Hose Carpet Height Adjustment Control Handle Release Pedal...
  • Page 5: Getting Started

    Getting Started Assembling the Vacuum Cleaner Remove the two screws from the Secure it by using the two screws base. Insert the back panel onto the from the base. base. Screws x 2 (P.N. 716000340101) Screws x 2 (P.N. 716000340101) Base Remove the screw on the handle, Insert the handle onto the top of the...
  • Page 6 Insert the handle fastener into the Screw the screw into the back of front of vacuum cleaner. the handle. Make sure the handle fastener is secured. Handle Fastener (P.N. 515440200201) Screw x 1 (P.N. 716000340101) Handle Fastener Relocate the dust tank into the vacuum cleaner by putting the bottom of the dust tank on the rim on the motor unit then push the...
  • Page 7 Hang the upper hose to the hose Hose Clip clip and connect it to the lower Upper Hose hose. Crevice Tool Attaching the accessories (extension Extension tube / crevice tool / small brush) Tube Upper Hose to the back of the vacuum cleaner. Small Brush The extension tube slots into two brackets on the side of the vacuum...
  • Page 8: Using The Mains Cable Holders

    Using the Mains Cable Holders To release the mains cable, simply rotate the upper mains cable holder 180˚ to unwrap the mains cable. Hang the unwrapped mains cable to the mains cable hook before using the vacuum cleaner. Mains Cable Hook Mains Cable Holders...
  • Page 9: Basic Operation

    Basic Operation Operating the Vacuum Cleaner Turn the upper mains cable holder down 180˚ to release the mains cable. Plug the mains cable into the mains socket. Carefully step on the handle release pedal to release the handle. Handle Release Pedal Carefully step on the power on/off pedal Upper...
  • Page 10: Adjusting The Carpet Pile Height Setting

    Adjusting the Carpet Pile Height Setting This vacuum cleaner can be used on multiple types of carpeting. To select a pile height setting: Turn the vacuum cleaner off. Make sure the vacuum cleaner is in its upright position. Select a pile height setting by turning the carpet height adjustment control to the desired setting.
  • Page 11: Using The Hose With Accessories

    Using the Hose with Accessories Turn the vacuum cleaner off. Make sure the vacuum cleaner is in its upright position. Turn the carpet height adjustment control to the highest setting (Long Pile). Take out the upper hose from the lower hose. If additional length is required, attach the extension tube to the end of the upper hose and then attach the crevice tool or the small brush to the end of the extension tube.
  • Page 12: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning the Dust Tank and HEPA Filter • To reduce the risk of electric shock, the mains cable must be disconnected before removing the dust tank, HEPA filter, changing the filters or performing maintenance/ trouble shooting checks. The dust tank must always be emptied when the dirt level reaches the “FULL”...
  • Page 13 If you find the washable HEPA filter Vigorously tap the HEPA filter on a is blocked or dirty, pull the HEPA hard surface until no more dust can filter out from the upper half of the be seen falling out. dust tank.
  • Page 14: Changing And Cleaning The Exhaust Filter

    Changing and Cleaning the Exhaust Filter Turn the vacuum cleaner off and unplug it from the mains socket. Press the dust tank release button and take out the dust tank from the vacuum cleaner using the dust tank handle. Dust Tank Handle Remove the exhaust filter.
  • Page 15: Motor Thermostat

    Motor Thermostat This vacuum cleaner is equipped with a motor protective thermostat. If for some reason the vacuum cleaner should overheat, the thermostat will automatically turn the vacuum cleaner off. If this occurs: Turn the vacuum cleaner off at once and unplug it from the mains socket. Find the source of the overheating problem (i.e.
  • Page 16 Take off the cover of the power head starting from the back of the power head. Remove the roller brush lifting it firmly upwards to release it. Slide out the belt from the rolling rod. Replace the worn out drive belt with a new one (not included). Place the new belt drive onto the rolling rod.
  • Page 17: Hints And Tips

    Agitator does not • Broken belt. Replace the belt. turn • Belt installed incorrectly. Check the belt is clean and does not need changing. Specifications Model L18VUR10 Voltage 230-240V ~50Hz Power Consumption 1400-1600W (1800W Max) Dust Capacity 3.5L GB-17...
  • Page 18: Safety Warnings

    Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all the instructions carefully before using the appliance and keep them for future reference. •...
  • Page 20 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Handle Fastener 515440200201 Screws x 3 716000340101 Dust Tank 515440220301 Small Brush 313130650101 Extension Tube 515440280101 Crevice Tool 515440290101 Drive Belt 615670070101...
