Summary of Contents for Logik L14VUR12

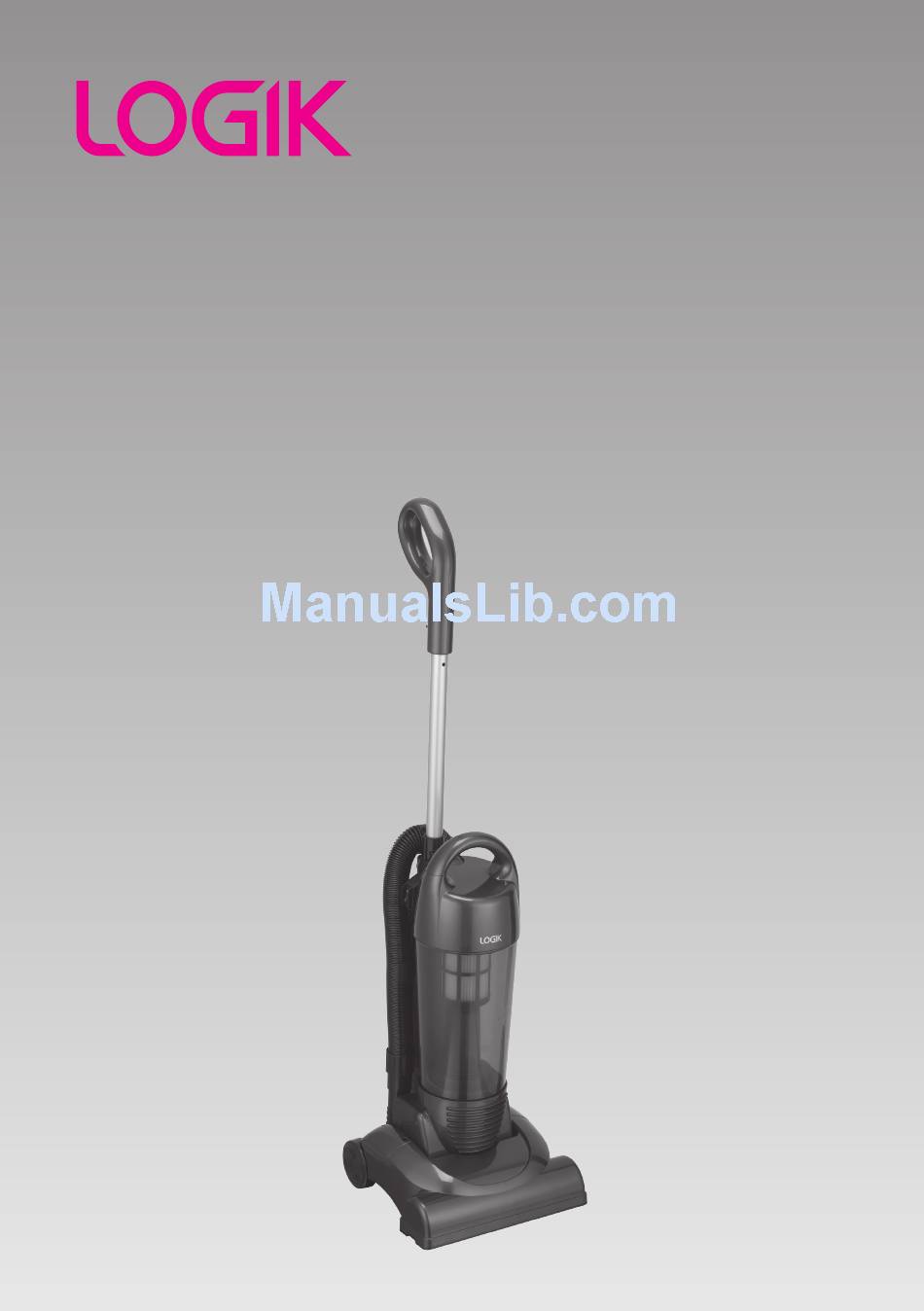

- Page 1 Upright Bagless Vacuum Cleaner Instruction Manual L14VUR12...
-
Page 3: Table Of Contents
Contents Safety Warnings .........................4 Unpacking ..........................7 Product Overview ........................8 Front View ................................8 Back View................................8 Getting Started ..........................9 Handle Release ..............................9 Using the Mains Cable Holders ........................9 Using the Vacuum Cleaner ......................10 Removing and Emptying the Dust Tank ................11 Cleaning the HEPA Dust Tank Filter ..................12 Cleaning the HEPA Filter Frame ....................13 Changing and Cleaning the Motor Protection Filter ............14... -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all the instructions carefully before using the appliance and keep them for future reference. • Retain the manual. - Page 5 • Do not run over the mains cable with the appliance. • Close supervision is necessary when any appliance is used by or near children. • This appliance is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the appliance by a person...
- Page 6 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN • The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
-
Page 7: Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Dust Tank Cover Motor Protection Filter (P.N.: L14VUR12 - 003) (P.N.: L14VUR12 - 026) Dust Tank Screws (P.N.: L14VUR12 - 008) (P.N.: L14VUR12 - 031) -
Page 8: Product Overview
Product Overview Front View Back View Dust Tank Cover HEPA Filter HEPA Filter Frame Dust Tank Extendable Handle Mains Cable Hook Handle Release Button Carrying Handle Dust Tank Assembly Release Button 10. Mains Cable Main Body 11. Lower Hose Blockage Clean Out Power Head 12. -
Page 9: Getting Started
Getting Started Handle Release Before getting started, you may need to insert the handle into the main unit. Push down firmly until handle locks into place. Press the handle release button until you hear a click. Then lift the handle to an upright position, the handle will lock automatically. -
Page 10: Using The Vacuum Cleaner
Using the Vacuum Cleaner Turn the mains cable holder to release the mains cable. Plug the mains cable into the mains socket. Push down on the handle release pedal to release the unit. Handle Release Pedal Switch the On/Off Switch to the “I” position to turn the vacuum cleaner on. On/Off Switch... -
Page 11: Removing And Emptying The Dust Tank
Removing and Emptying the Dust Tank To reduce the risk of electric shock, the power cord must be disconnected before removing the dust tank or dust tank filter; changing the filters; or performing maintenance/trouble shooting checks. The “Dust Tank” must always be emptied when the dirt level reaches the “MAX”... -
Page 12: Cleaning The Hepa Dust Tank Filter
Cleaning the HEPA Dust Tank Filter The washable HEPA dust tank filter will stop 99.97% of all particles as small as 0.3 microns-many times smaller than a human hair. The filter stops most of these tiny particles and airborne allergens from re-entering the air you breathe. Because of this incredible filtration performance, the HEPA dust tank filter will quickly accumulate many fine dust particles inside the white filter folds that are difficult to see but which will eventually block or reduce your suction power, if not cleaned... -
Page 13: Cleaning The Hepa Filter Frame
Cleaning the HEPA Filter Frame Unlock and remove the dust tank cover by turning the cover anti-clockwise. Unlock and remove the filter frame from the dust tank by turning the dust tank cover anti-clockwise. HEPA Filter Frame Rinse the frame in lukewarm water by running it under the tap to remove any dust that is adhering to the frame. -
Page 14: Changing And Cleaning The Motor Protection Filter
Changing and Cleaning the Motor Protection Filter • Never use the vacuum cleaner without the motor filter protection and exhaust filter installed, otherwise damage to the vacuum cleaner may occur. • Failure to keep the filters clean, will result in a loss of performance. Unplug the vacuum cleaner from the mains socket. -
Page 15: Cleaning The Dust Tank
Cleaning the Dust Tank Never use the vacuum cleaner without the dust tank installed, otherwise damage to the vacuum cleaner may occur. Unplug the vacuum cleaner from the mains socket. Pull the dust tank assembly out of the vacuum cleaner. Unlock and remove the dust tank cover by turning the cover forward the . -
Page 16: Cleaning And Changing The Belt
Cleaning and Changing the Belt Should the drive belt become worn or it slips, you can replace the drive belt. Switch Off the vacuum cleaner and unplug from the mains socket. Make sure the vacuum cleaner is locked in its upright position. Carefully lie the vacuum cleaner down and remove the 6 fixing screws. -
Page 17: Hints And Tips
• Broken belt. Replace the belt. turn. • Belt installed incorrectly. Reinstall the belt and check that it is clean and does not need changing. Specifications Model L14VUR12 Voltage 220 ~ 240V ~ 50Hz Power Consumption 1200 (Nominal), 1400W (Max.) Dust Tank Capacity... - Page 18 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Dust Tank Cover L14VUR12 - 003 Dust Tank L14VUR12 - 008 HEPA Filter L14VUR12 - 005 HEPA Filter Frame...
