Summary of Contents for Safety Vision SAFEDRIVE 2020

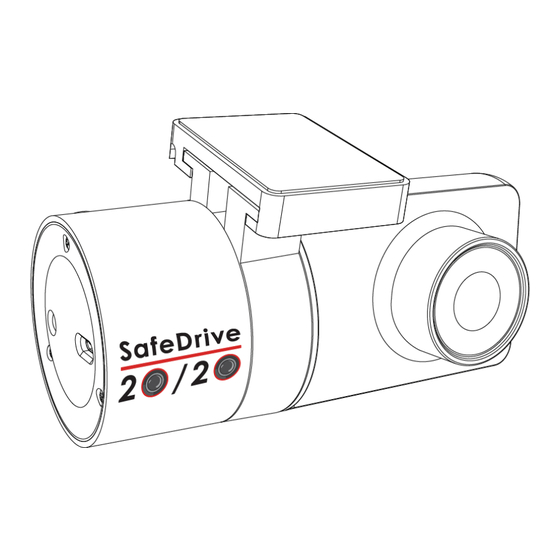

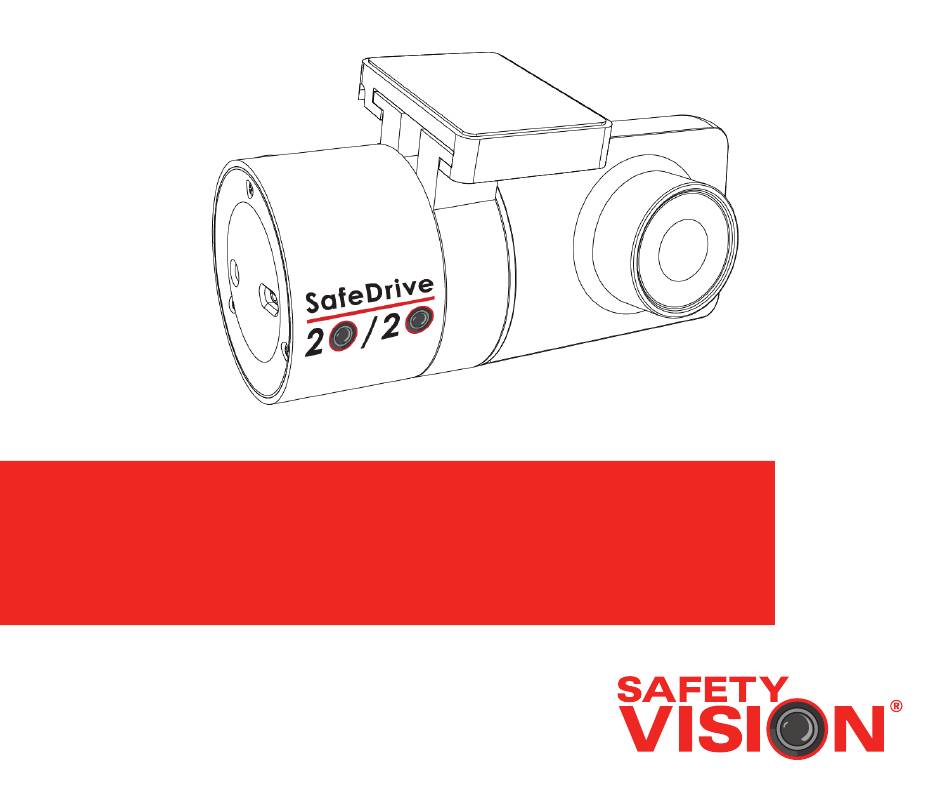

  • Page 1 SAFEDRIVE 2020 USER GUIDE...
  • Page 2 This material is confidential and the property of No part of this document may be photocopied, Safety Vision. It is shared with your company for the reproduced, or translated to another language sole purpose of helping you with the operation of without the prior written consent of Safety Vision.

  • Page 3: Table Of Contents

    SAFEDRIVE 2020 uSER guIDE CoNTeNTS Explore Surfsight Components Installation Camera Mounting Adjusting the Viewing Angle Connecting to a Power Source Settings Menu Calibrating the Sensors Settings View Live Video...
  • Page 4 SAFEDRIVE 2020 uSER guIDE Driving Alerts Create a SafeDrive cloud account Appendix A: Specifications Appendix B: Dimensions...

  • Page 5: Explore Surfsight

    SAFEDRIVE 2020 uSER guIDE Explore Surfsight • CAPTURE THE DRIVE - Simultaneously capture the road and cabin to detect distracted driving and dangerous driving events. • LIVE VIDEO - View live video Live from vehicle, from any device. • AI DRIVER ASSISTANCE - Provide visual and audio alerts of distracted and dangerous driving events.

  • Page 6: Components

    SAFEDRIVE 2020 uSER guIDE Components Road-facing Camera Mounting bracket Auxiliary (USB-C) input 1080P HD adjustable 140° angle Power input camera...
  • Page 7 SAFEDRIVE 2020 uSER guIDE Cabin-facing camera Rotating and locking rings SoS button 720P HD adjustable wide angle Tamper resistant cover for SIM camera and SD card slots IR for clear night vision Touch screen...

  • Page 8: Installation

    SAFEDRIVE 2020 uSER guIDE Installation SIM and SD Card Removal / Insertion The card access door is secured by a safety screw and can only be opened when the screw is loosened with the included specialty screwdriver. Do not force either card into the slot upside down or backwards.
  • Page 9 SAFEDRIVE 2020 uSER guIDE 2. Insert a SIM card into the SIM card slot until it clicks in place. 3. Insert an SD card into the SD card slot label-side up, with the notch down, until it clicks in place.

  • Page 10: Camera Mounting

    SAFEDRIVE 2020 uSER guIDE Camera Mounting Before you start, make sure that the vehicle is parked on a level surface and that the windshield is clean and dry. Attach the mounting bracket onto the camera until it clicks in place.
  • Page 11 SAFEDRIVE 2020 uSER guIDE 2. Remove the 3M adhesive tape cover, and mount the camera to the windshield. 3. Place the camera as high as possible on the driver side of the vehicle. DO NOT INSTALL THE SAFEDRIVE 20/20 IN A LOCATION WHERE IT CAN...

  • Page 12: Adjusting The Viewing Angle

    SAFEDRIVE 2020 uSER guIDE Adjusting the Viewing Angle Shut down the SafeDrive 20/20 completely and unplug power cable. 2. Dismount the SafeDrive 20/20 from the mounting bracket on the windshield. To dismount the camera, press clips inward and slide camera off of the bracket.
  • Page 13 SAFEDRIVE 2020 uSER guIDE 3. Use the included screwdriver to loosen the three security screws on the round side of the camera. Do not remove the screws completely. 4. Adjust the viewing angle by rotating the body of the SafeDrive 20/20 and fasten the three side screws when finished.
  • Page 14 SAFEDRIVE 2020 uSER guIDE 6. Re-connect the power cable to the SafeDrive20/20 (See Connecting to a Power Source). The SafeDrive20/20 will turn on automatically. The default PIN number 3333...
  • Page 15 SAFEDRIVE 2020 uSER guIDE 8. on the main screen enter the Live View mode. Use the ‘Live View’ to direct the road facing camera and the cabin facing camera to the proper direction. You can use the arrow keys to switch between the views.

  • Page 16: Connecting To A Power Source

    SAFEDRIVE 2020 uSER guIDE Connecting to a Power Source • The SafeDrive 20/20 may only be connected to a power source using the supplied cables. • The camera’s cylinder side is where the input power connector is located. • If using the USB cable as the power source, it must provide 5V DC and at least 2A.

  • Page 17: Settings Menu

    SAFEDRIVE 2020 uSER guIDE Settings Menu Press the camera touchscreen. 2. enter the PIN number. The default PIN number 3333 3. The camera is now unlocked and the Settings menu is now accessible.

  • Page 18: Calibrating The Sensors

    SAFEDRIVE 2020 uSER guIDE Calibrating the Sensors The SafeDrive 20/20 contains an internal accelerometer that detects unsafe driving events. The accelerometer is not calibrated in advance as the installation in every vehicle is different. Please follow the following steps to calibrate the accelerometer.

  • Page 19: Settings

    SAFEDRIVE 2020 uSER guIDE Settings enter the Settings mode in the main menu to set the following on the camera: • • WiFi Hotspot Speed in MPH • • Video Preset Audio Alarms • • Select APN Notify Live Streaming •...

  • Page 20: View Live Video

    SAFEDRIVE 2020 uSER guIDE View Live Video enter the Live View mode in the main menu. 2. The live video will be displayed on the screen. 3. Use the arrow keys below the screen to switch between the road and cabin facing cameras.
  • Page 21 SAFEDRIVE 2020 uSER guIDE 5. enter the Recordings mode in the main menu. 6. All the recorded videos on the SD card will be displayed in a list, sorted by date and time. Use the arrow buttons to scroll through the list.
  • Page 22 SAFEDRIVE 2020 uSER guIDE Driving Alerts • A white vehicle icon will be displayed on the screen while driving. • In case of a dangerous driving events such as violent turn or unsafe driver behavior, the car icon will turn red, indicating a visual alert for the driver.
  • Page 23 SAFEDRIVE 2020 uSER guIDE Create a SafeDrive cloud account open your internet browser and browse to https://safedrive.safetyvision.com 2. Click on the Login button at the bottom of the page. 3. If you have an exisiting SafeDrive account, then simply login to your account.
  • Page 24 SAFEDRIVE 2020 uSER guIDE 6. Turn on your car vehicle’s ignition switch. After about a minute you should see the Surfsight’s IMeI* number in the list of devices with a green icon next to it, indicating the camera is online.
  • Page 25 SAFEDRIVE 2020 uSER guIDE Appendix A: Specifications Network data additioNal CameraS Global Bands Ability to connect up to 4 additional cameras wiFi driver FaCiNG Camera Ability to act as hotspot or connect to WiFi Access Point 720P HD with integrated IR and...
  • Page 26 SAFEDRIVE 2020 uSER guIDE StoraGe StoraGe temPeratUre Up to 512 GB – SD Card Class 10 -14° F ~ 185° F (-10° C ~ 85° C) needed for high speed video recording oPeratiNG temPeratUre* ParkiNG mode 32° F ~ 158° F (0° C ~ 70° C)
  • Page 27 SAFEDRIVE 2020 uSER guIDE Appendix B: Dimensions...
  • Page 28 SAFEDRIVE 2020 uSER guIDE FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 29 Corporate Headquarters 6100 W. Sam Houston Pkwy. N. Toll Free: 800.880.8855 Houston, TX 77041-5113 Fax: 713.896.6640 Main: 713.896.6600 www.safetyvision.com...
