Hozelock Cyprio Cascade 700 Installation And Operating Instructions

3352
Cascade 700
INSTALLATION AND OPERATING INSTRUCTIONS. READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION.
GB
ATTENTION
AUTOMATIC CUT-OUT. To help ensure
your pump's long life and to prevent
damage, it is fitted with automatic
thermal overload protection. This
switches off the pump if it overheats. If
this occurs, switch off the power at the
mains supply to the pump. Check for the
cause. Usually it will be debris blocking
the inlets of the pump or obstructing
the impeller. Remove the obstruction
and wait 15 minutes for the pump to
cool down and automatically reset. Then
switch on the pump again.
NOTE: YOU MUST SWITCH OFF THE
MAINS SUPPLY BEFORE THE PUMP WILL
RESET.
From 1st January 2005 installing this
product in the garden is classed as
'notifiable' in the revised Building
Regulations for England and Wales. The
Regulations now require you to tell
your local authority building control
department that you intend to install
this product before installation. Your
local authority will let you know how
you can get your installation approved.
The Hozelock Cyprio Cascade 700 pump is
designed for submersible use only. The pump
does not use oil or grease for lubrication and
can be used safely in ponds containing fish or
plants. The motor consists of a sealed stator
and water-cooled permanent magnet rotor.
All electrical components are isolated from
the water.
IMPORTANT
1. WARNING:
ALWAYS UNPLUG OR
DISCONNECT ALL APPLIANCES IN THE
POND FROM THE ELECTRICITY SUPPLY
BEFORE PUTTING YOUR HANDS IN THE
WATER WHILST EQUIPMENT IS BEING
INSTALLED, REPAIRED, MAINTAINED OR
HANDLED.
2. Do not use the supply cable to lift the
pump, as this may cause damage. We
recommend fitting a lifting cord to the
handle eye on the top of the strainer cage
when the pump is installed in deep water.
See fig 1.
3. Do not operate or leave the pump in
freezing conditions.
4. Do not allow the pump to run dry.
5. Check that the voltage marked on the
pump corresponds to the mains supply.
6. A 10MA OR 30 MA RESIDUAL CURRENT
DEVICE MUST BE FITTED TO THE MAINS
SUPPLY.
7. DO NOT OPERATE THIS PUMP WITHOUT
THE STRAINER CAGE ATTACHED. USING
THE PUMP WITHOUT A STRAINER MAY
INVALIDATE YOUR WARRANTY.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING: SAFETY AND
ELECTRICAL CONNECTIONS
1. The pump is supplied with 10m of 3 core
electric cable which is permanently
connected and sealed to the motor.
The supply cable cannot be replaced. If the
cable is damaged, the pump should be
discarded.
This product is designed to be
permanently wired to the mains supply in
a dry weatherproof enclosure through a
Double-Pole Switched Fused Spur -
(Disconnector) to BS 3676, with a
minimum contact separation of 3mm in
each Pole - Fitted with a 3 or 5 Amp fuse.
The installation must conform to the
national and local wiring regulations
which could include the use of plastic or
metal conduit to protect the cable.
2. A 10MA OR 30MA RESIDUAL CURRENT
DEVICE (RCD) MUST BE FITTED TO THE
MAINS SUPPLY.
3. WARNING: THIS APPLIANCE MUST BE
EARTHED AND IT IS ESSENTIAL THAT THE
CONNECTIONS ARE MADE USING THE
FOLLOWING CODE;

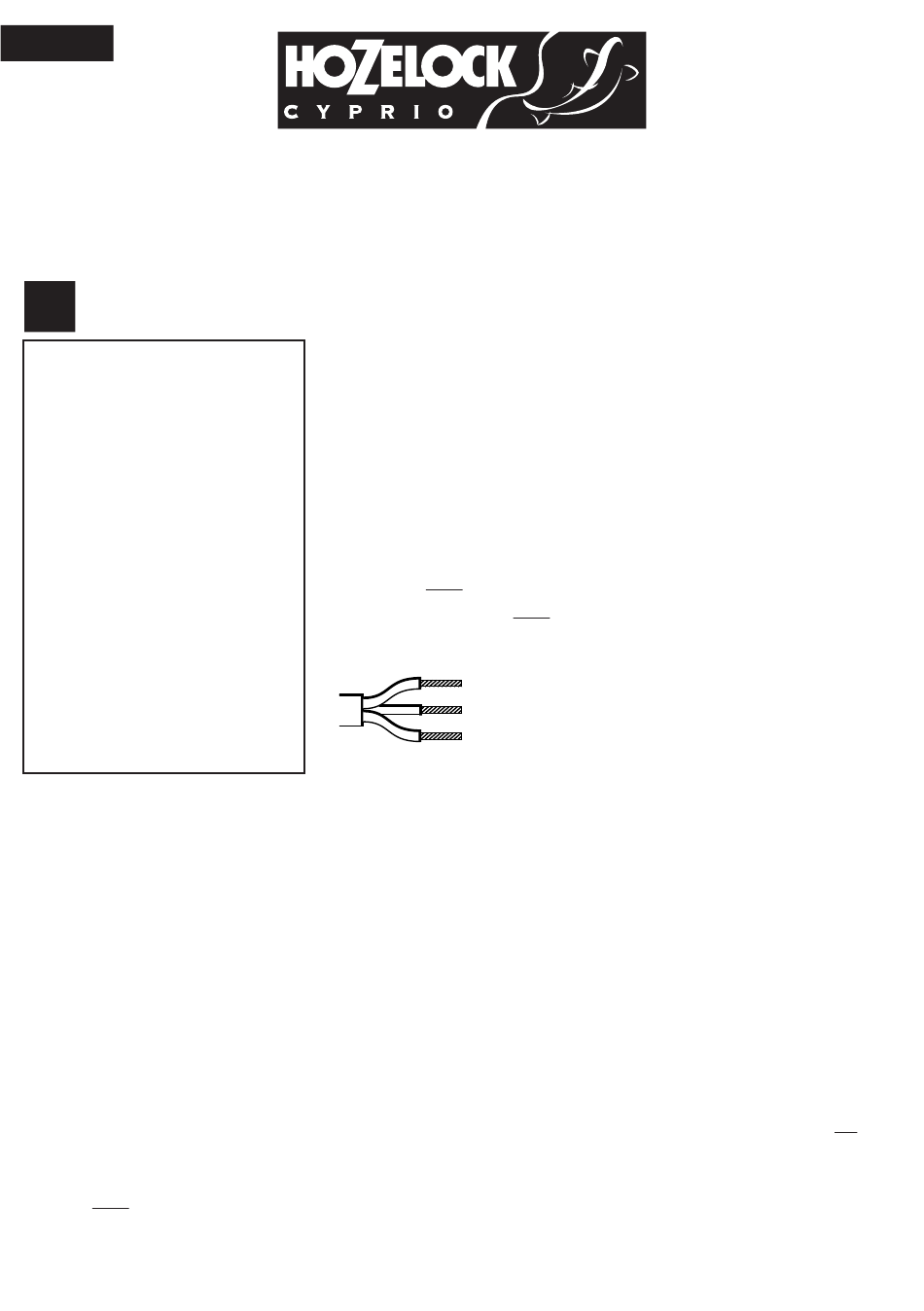

The BROWN lead should be connected to
the LIVE terminal which may be marked
with an 'L' or coloured brown or red.
The BLUE lead should be connected to the
NEUTRAL terminal which may be marked
with an 'N' or coloured blue or black.
The GREEN/YELLOW lead should be
connected to the EARTH terminal which
may be marked with an 'E' or coloured
green or green/yellow.
4. If an extension cable is required, this
should be connected to the end of the
pump cable using a weatherproof cable
connector. The joint must be positioned in
a suitable weatherproof housing. The
extension cable should be of 3 core
0.75mm 2 Polychloroprene rubber insulated
cable (ref: HO5 RN-F) and permanently
wired to the mains supply with a 3 or 5
Amp fuse.
5. The pump cable (and extension cable)
should be positioned and adequately
protected against damage especially
where contact with gardening equipment
(lawn mowers, forks etc..) children and
domestic animals may occur.
6. CONSULT A QUALIFIED ELECTRICIAN OR
LOCAL AUTHORITY IF IN ANY DOUBT
ABOUT WIRING TO THE MAINS SUPPLY.
ACCESSORY ASSEMBLY
Telescopic Stem Assembly.
Take the outer telescopic stem 'A' and slide
the inner stem 'B' into it, as shown. See Fig 2.
Bell Fountain
1. Locate the Bell Support (D) to the Bell
Main Body (E) and push fully home.
2. Position the Bell (F) to the Body Assembly
and press into the central location.
See fig 3.
PUMP INSTALLATION
Position
Construct a solid and level platform on which
to place the pump. Which using spray
fountains, the top of the platform should be
240-330mm (10-13") below the water surface.
When using the bell fountain, the top of the
platform should be 100mm (4") below the
water level.
A typical installation is shown for guidance in
fig 4.
Flow Control
The flow from the pump can be regulated to
meet your needs by rotating the flow
controller wheel (G) near the outlet of the
pump. See Fig 5.
Fountain Only
1. Place the pump next to the pond and route
the cable back to the mains supply.
2. Select the desired fountain accessory. The
2 and 3 tier fountainheads simply snap
onto the fountain stem (See Fig 6). The
fountain stem pushes onto the narrower
tube section of the telescopic fountain
Brown - Live
stem (See Fig 6). Then place the pump in
the desired position. Note: Check that the
Blue - Neutral
inner stem of the telescopic tube has not
Green/Yellow - Earth
been pushed inside the outer tube.
3. a). 3 tier fountain – Creates a wide and
attractive fountain spray.
b). 2 tier fountain – Creates a higher and
narrower display.
c). Bell fountain – Creates a decorative
water bell. Adjust the telescopic stem to
the required height and regulate the bell
by rotating the flow controller by the
outlet of pump.and by sliding the inner
bell in and out of the bell assembly.
4. The ball joint - See Fig 5 (H), fits onto the
pump outlet and the telescopic stem
pushes onto the top. This can then be used
to adjust the fountain angle so that it is
vertical.
Waterfall Only
1. Fit a suitable length of hose 12.5mm bore
hose on to the hose adaptor. See Fig 5 (I).
2. Route the hose back to the waterfall.
MAINTENANCE
The Hozelock Cyprio range of Cascade pumps
has been designed to allow fast and easy
maintenance. As with all pumps of its kind,
occasionally it will become necessary to clean
the Strainer Cage and Fountain Spray head
ring.
ALWAYS UNPLUG OR DISCONNECT ALL
APPLIANCES IN THE POND FROM THE
ELECTRICITY SUPPLY BEFORE PUTTING YOUR
HANDS IN THE WATER OR STARTING
MAINTENANCE.
Fountain Head
1. Place a coin or similar in the slot and
gently lever off the fountain head.
2. Rinse in clean water and reassemble.
Strainer.
