- Page 1 1T-VS-658 Video/PC/HD/HDMI Scaler with stereo audio User Guide V 4.00 Firmware version 2.20 MNL-1T-VS-658-V4.00 Jan 2020...
-
Page 2: Table Of Contents
In the box .............................. 2 Supported input formats and resolutions ..................2 Supported output formats and resolutions..................4 Hardware recommendations ........................5 About your 1T-VS-658 ..........................6 Front panel ............................6 Rear panel ..........................7 Remote control ........................8 Getting started.......................... 8 Using your 1T-VS-658 ....................... -
Page 3: Welcome
Welcome Thanks for purchasing this 1T-VS-658 HDMI Scaler with stereo audio from tvONE. The 1T-VS-658 Video Scaler is a professional Up and Cross Converter with an HDMI output. Fully scaleable video inputs include HDMI, DVI (via DVI- to-HDMI adapter), analog RGB via an HD-15, Analog YPbPr or 480i/576i YUV Component via three RCA, YC (S-Video) and Composite Video. - Page 4 Supported input formats and resolutions The 1T-VS-658 accepts HDMI, DVI, Analog PC, Analog Component, Composite, and YC (S-Video) inputs with separate connectors. Analog YPbPr input is only available via the 3-RCA Connectors and not via the HD-15 Connector. Resolution V. Rate/Hz...
-
Page 5: Supported Output Formats And Resolutions
RGBHV HD15, HDMI WSXGA 1680x1050 Progressive RGBHV HD15, HDMI WUXGA 1920x1200 Progressive RGBHV HD15, HDMI Supported output formats and resolutions The 1T-VS-658 supports these output resolutions. Resolution V. Rate/Hz Scan Format Connector 480p 720x480 Progressive RGBHV HDMI 576p 720x576 Progressive... -
Page 6: Hardware Recommendations
Hardware recommendations At tvONE, we design our products to the highest quality standards. To get the best results from our products, we recommend that you use the best quality connectors, cables, and adapters. Consider the points below when you choose accessories and position equipment. -
Page 7: About Your 1T-Vs-658

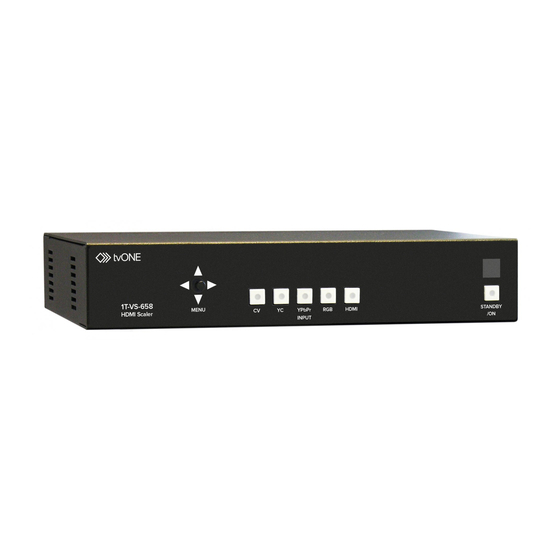

About your 1T-VS-658 Front panel Joystick and control pad. Press the top of the joystick to MENU open the On-Screen Display (OSD). Use the joystick to move to, select, and adjust functions. YPbPr Select an input. HDMI STANDBY/ON Turn the unit on and off. -
Page 8: Rear Panel
+5 VDC Input. (Connects to AC Adapter) S-Video Input (4-Pin Mini-Din) Stereo Analog Audio Input for S-Video Input (2x RCA Connectors) Component Video Inputs (3x RCA Connectors) PC Video Input (HD-15 Connector from PC’s Monitor Output) HDMI Video Input HDMI Video Output MNL-1T-VS-658-V4.00... -
Page 9: Remote Control
Remote control Getting started ▪ Connect your input and output cables. ▪ Connect the AC power adaptor. ▪ Turn on the source and destination devices. ▪ Plug the AC Adapter into a wall outlet and press STANDBY/ON. tvONE... -
Page 10: Using Your 1T-Vs-658
Using your 1T-VS-658 Using the on-screen display menus With the front panel ▪ To open the on-screen display, press the top of the joystick. ▪ To navigate in the on-screen display, use the joystick or arrow buttons. ▪ To select an item, press the top of the joystick. - Page 11 V - Position 0-100 Relative U-D Position Timer 5-100 Relative OSD Show Time (Sec) Background 0-100 Relative OSD Background Transparency Display Select INFO / ON / OFF Exit Return to High Level Menu Factory Reset Restores original factory settings tvONE...
-
Page 12: Rs-232 Protocol
2. The Resolution sub-menu allows you to specify the resolution you want the 1T-VS-658 to produce. Keep in mind that setting the resolution can cause an apparent malfunction if you select a resolution that your display device cannot reproduce. Make certain your display device can reproduce the resolution you select BEFORE you select it. -
Page 13: (S) Set Commands
1T-VS-658 Remote Control Assignment Assignment (S) Set commands Items in bold and brackets [X]are default values. Command Code Response Description S POWER 0 > POWER OFF POWER OFF S POWER 1 > POWER ON POWER ON S SOURCE 0 > SOURCE CV... - Page 14 SCALER FULL OUTPUT S SIZE 1 > SIZE OVERSCAN SCALER OVERSCAN OUTPUT S SIZE 2 > SIZE UNDERSCAN SCALER UNDERSCAN OUTPUT S SIZE 3 > SIZE LETTERBOX SCALER LETTERBOX OUTPUT S SIZE 4 > SIZE PANSCAN SCALER PANSCAN OUTPUT MNL-1T-VS-658-V4.00...
- Page 15 > PCPHASE [VALUE] PC MODE PHASE 0-100 ADJUST S RED 0-100 > RED [VALUE] COLOR TEMP "RED" ADJUST [50] S GREEN 0-100 > GREEN [VALUE] COLOR TEMP "GREEN" ADJUST [50] S BLUE 0-100 > BLUE [VALUE] COLOR TEMP "BLUE" ADJUST [50] tvONE...
-
Page 16: (R) Status Commands
> HUE [VALUE] SHOW HUE STATUS R SATURATION > SATURATION [VALUE] SHOW SATURATION STATUS R SHARPNESS > SHARPNESS [VALUE] SHOW SHARPNESS STATUS SHOW NOISE REDUCTION R NR > NR [OFF/LOW/MIDDLE/HIGH] STATUS R PCHPOSITION > PCHPOSITION [VALUE] SHOW PC H-POSITION STATUS MNL-1T-VS-658-V4.00... -
Page 17: (K) Key Commands
STATUS R OSDTIMEOUT > OSDTIMEOUT [VALUE] SHOW OSD TIMEOUT STATUS > OSDBACKGROUND [VALUE] SHOW OSD BACKGROUND OSDBACKGROUN STATUS R OSDNOTICE > OSDNOTICE [INFO/OFF/ON] SHOW OSD STATUS (K) Key commands Command Code Response Description S RESET > RESET RESET SYSTEM tvONE... -
Page 18: Troubleshooting
Try updating your firmware. Note: during a firmware update your custom settings are deleted. Returning a product for repair You can request to return your product to tvONE™ for repair. When you contact tvONE support, have the following information ready. Product type ▪... -
Page 19: Regulatory Compliance
EMEA and Asia Customers in EMEA and Asia receive an RMA Request form from tvONE support. Complete the form and return it to tvONE support for your area. All customers tvONE support decides if your product needs to return for repair, and, if needed, provide a return authorization number. -
Page 20: Contact Us
Copyright © 2020 tvONE™. All rights reserved.
