STOCKTON COLLECTION

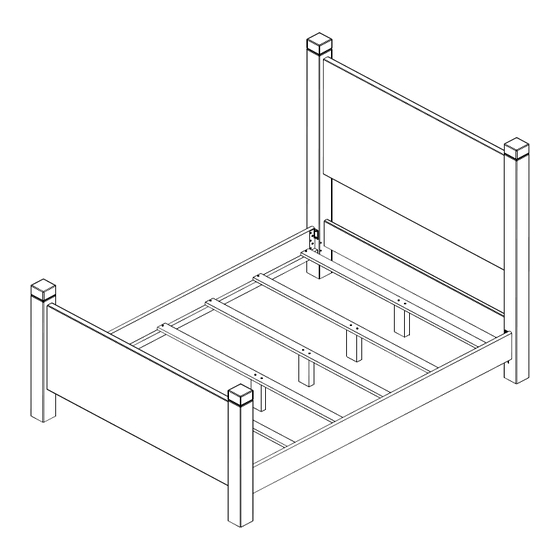

PANEL BED

Advertisement

loading
Need help?

Need help?

Do you have a question about the STOCKTON PANEL BED and is the answer not in the manual?

Questions and answers

Related Manuals for DeFehr STOCKTON PANEL BED

Summary of Contents for DeFehr STOCKTON PANEL BED

  • Page 1 STOCKTON COLLECTION PANEL BED...

  • Page 2: Bed Assembly

    BED ASSEMBLY ASSEMBLAGE DU LIT IMPORTANT! Two people are required for safe Depending on model purchased, unit may not assembly of the unit. be exactly as shown. IMPORTANT! Deux personnes sont nécessaires Selon le modèle que vous avez acheté, le meuble pour assembler ce meuble en toute sécurité.
  • Page 3 TOOLS REQUIRED / OUTILS NÉCESSAIRES The use of a power screwdriver is optional where indicated. L'utilisation d'un tournevis électrique est facultative là où elle est indiquée. HARDWARE / QUINCAILLERIE #10054 #10888 3/4” 1½” COMPONENTS / COMPOSANTES Footboard/ Headboard/ Bed Rails/ Tête de Lit Pied de Lit Rails pour Lit...
  • Page 4 STEP 1 Insert hooks on bed rail ends (CC) into slots in bed legs ensuring that hooks are seated on pins in legs. Secure both bed rails to headboard and footboard using one screw (A) per hook. 3/4” Insérez les crochets sur le bout des rails (CC) dans les rainures qui se trouvent dans les jambes des têtes de lit.
  • Page 5 STEP 2 1½” Optional/ En option STEP 3 Place outer slats 12” (30cm) and 3” (8cm) from bed rail ends as shown. Centre remaining slats between headboard and footboard. Fasten slats to mattress supports with one screw (B) per end. Placez les planchettes extérieures a environ 12”...

  • Page 6: Storage Bed

    STOCKTON COLLECTION STORAGE BED...
  • Page 7 PLATFORM BED ASSEMBLY L’ASSEMBLAGE DU LIT PLATE-FORME IMPORTANT! Two people are required for safe Depending on model purchased, unit may not assembly of the unit. be exactly as shown. IMPORTANT! Deux personnes sont nécessaires Selon le modèle que vous avez acheté, le meuble pour assembler ce meuble en toute sécurité.
  • Page 8 TOOLS REQUIRED / OUTILS NÉCESSAIRES The use of a power screwdriver is optional where indicated. L'utilisation d'un tournevis électrique est facultative là où elle est indiquée. HARDWARE / QUINCAILLERIE #17755 #P0417 #10264 #10057 1-1/4” COMPONENTS / COMPOSANTES Base-Left/ Headboard/ Base Right/ Base à...
  • Page 9 STEP 1 Wall/Mur 2-3” (5-7.5cm) Page 3 of 8 • Comp #P2031 • Revision #3 • 11/2019...
  • Page 10 STEP 2 IMPORTANT! ATTENTION! Page 4 of 8 • Comp #P2031 • Revision #3 • 11/2019...
  • Page 11 STEP 3 IMPORTANT! ATTENTION! Page 5 of 8 • Comp #P2031 • Revision #3 • 11/2019...
  • Page 12 STEP 4 QUEEN/DOUBLE KING Page 6 of 8 • Comp #P2031 • Revision #3 • 11/2019...
  • Page 13 STEP 5 1-1/4” Centre footboard on base before attaching. Centrez le pied de lit sur la base avant de le fixer. Page 7 of 8 • Comp #P2031 • Revision #3 • 11/2019...
  • Page 14 STEP 6 QUEEN / DOUBLE Platform Deck/ Surface de la plate-forme X4 - Queen/Double X5 - King KING Page 8 of 8 • Comp #P2031 • Revision #3 • 11/2019 Printed in Canada...
  • Page 15 STOCKTON COLLECTION COMMON ADJUSTMENTS...

  • Page 16: Common Adjustments

    COMMON ADJUSTMENTS AJUSTEMENTS LES PLUS COURANTS 1. This unit may require one or more the of the following adjustments/installations. 2. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. 1. Vous aurez à faire un ou plusieurs des ajustements/installations suivants à l'unité. 2. GARDER CES DIRECTIVES POUR CONSULTATION FUTURE. SHELVES / ÉTAGÈRES CAUTION: DO NOT place object(s) on adjustable shelves where the total combined weight exceeds 75 lbs.
  • Page 17 SHIMS / CALES Uneven floors can affect how drawers and doors function, causing them to not open or close properly. Shims may have been provided with your furniture to compensate for uneven floors. If the units are standing unevenly, insert the shim as far as required to make the unit level.
  • Page 18 STOCKTON COLLECTION FELT PAD ATTACHMENT...
  • Page 19 FELT PAD ATTACHMENT COUSSINS EN FEUTRE Depending on model purchased, unit 1. Read all instructions before proceeding. Not following instructions may result in personal harm or damage to your furniture. may not be exactly as shown. 2. Two people are required for safe assembly. Selon le modèle que vous avez acheté, 3.
  • Page 20 CABINETS / MEUBLES Depending on model purchased, unit may not be exactly as shown. Selon le modèle que vous avez acheté, le meuble peut ne pas ressembler à l’illustration. EXAMPLE 1 EXAMPLE 2 EXEMPLE 1 EXEMPLE 2 Page 2 of 2 • Comp #P2070 • Revision #1 • 03/2018...
  • Page 21 STOCKTON COLLECTION UPHOLSTERED PANELS...
  • Page 22 UPHOLSTERED PANELS TÊTE DE LIT TAPISÉE Cleaning and Maintenance Instructions Instructions de Nettoyage et D’Entretien Regular Maintenance Lightly brush or vacuum to remove dust and light dirt. Avoid exposure to direct sunlight. Never use harsh chemicals or solvents to clean stains. Stain Treatment Should a spill occur, immediately blot gently with a clean, white cloth.
