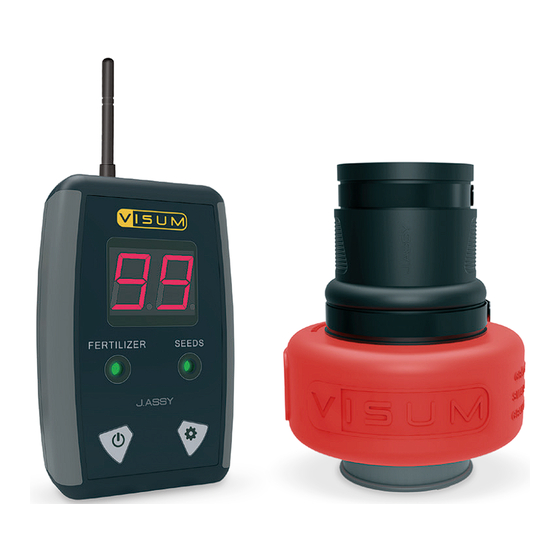

J.ASSY VISUM MONITOR Operator's Manual
Hide thumbs
Also See for VISUM MONITOR:
- Operator's manual (42 pages) ,
- Technical manual (13 pages) ,
- Operator's manual (9 pages)
Related Manuals for J.ASSY VISUM MONITOR
Summary of Contents for J.ASSY VISUM MONITOR

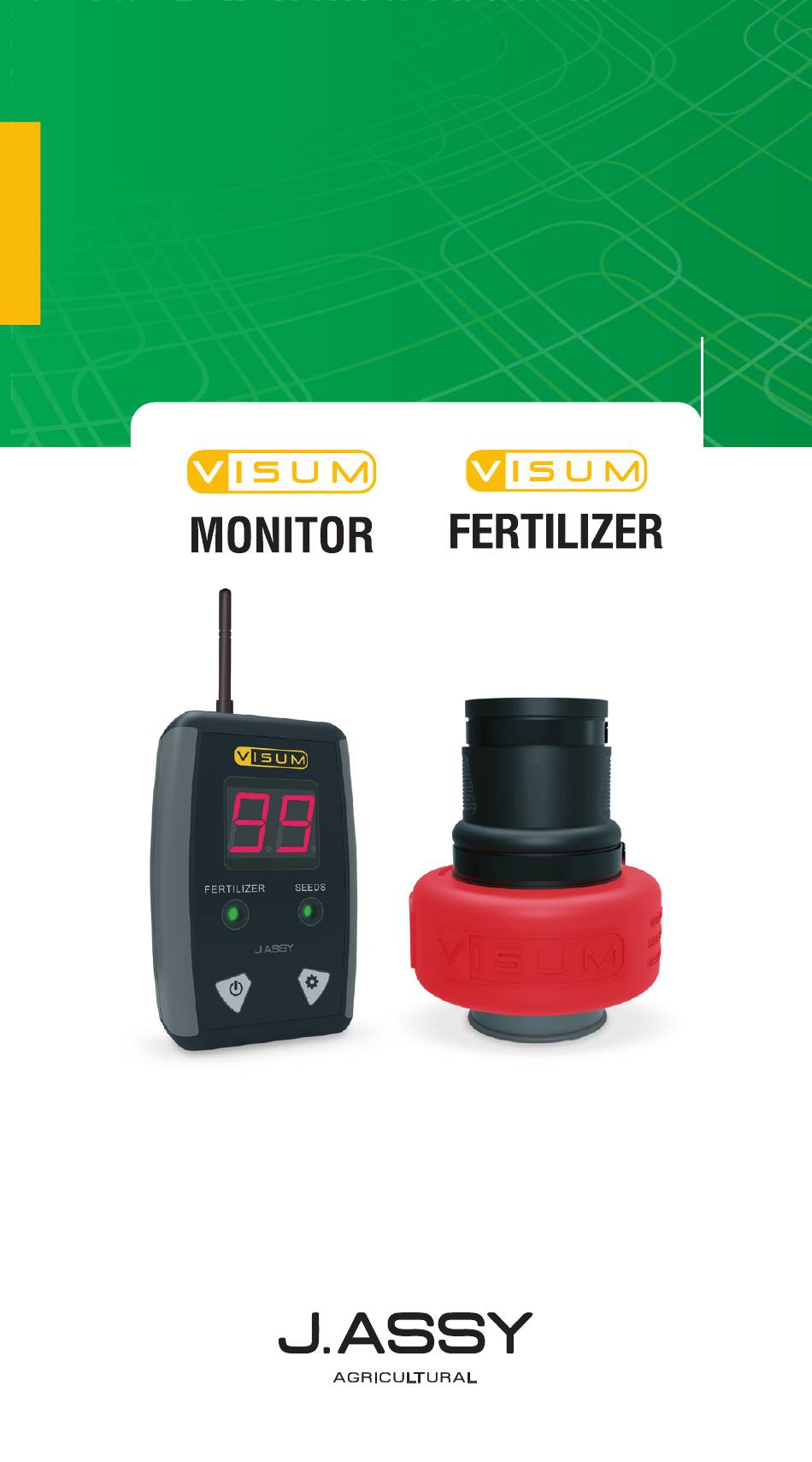

- Page 1 OPERATOR’S OPERATOR’S MANUAL MANUAL version 4.2 100 Yellow | 25 Magenta 100 Black 100 Yellow | 25 Magenta 100 Black...
- Page 2 Visum Fertilizer v. 4.2 v. 4.0 ----- VISUM MONITOR | VISUM FERTILIZER This device contains FCC ID 2AD66-RF2401F20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Table of Contents Specifications ............04 100 Yellow | 25 Magenta 100 Black ow | 25 Magenta 100 Black Visum Monitor ............04 Visum Fertilizer ............04 Installation ..............05 Visum Monitor ............05 Visum Fertilizer ............06 Recommendations ..........07 Power Connection ........... -
Page 4: Ow | 25 Magenta 100 Black
100 Black Radiofrequency communication at 2.4GHz. GFSK Modulation. Internal antenna. Dimension: 71mm (A) x 89mm (L). Weight: 245g. Internal diameter of the sensor: 45mm. Wearing protection: Stainless Steel. Outer diameter of the hose: from 1 1⁄4 to 2 1⁄16”. | J.Assy... -
Page 5: Installation
• Avoid installing the monitor close to the cab ROPS column. Keep a minimum distance of 12 in. between monitor and column. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |... -
Page 6: Visum Fertilizer
2. Place the sensor with the internal antena facing “up” or “skyward”. The internal antenna is located to the left of the square patch with “P” and “L” between the “J” and “A” of the word J. Assy. See illustration below. | J.Assy... -
Page 7: Recommendations
• Do not install the sensor upside down. Installation must match the orientation in the pictures below. Flow Direction Flow Direction 1, 75 em - 2, 75 em x 0312 em x 0021 in. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |... -
Page 8: Power Connection
(not included) will be needed. 1b. Cut the power cable excess and mend the wires with manufacturer harness. CONNECTING TO THE TRACTOR BATTERY • Use the included installation kit is detailed below. | J.Assy... -
Page 9: Attach The Antenna
Monitors box. • Attach it to the back of the Monitor by threading on the connection. Do not “over-tighten”. • Position the antenna so that it is in a vertical orientation. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |... -
Page 10: Network Id
Monitor or can be extract by software operation. The sensor configuration can be done with a Visum Monitor. Check how it can be done on this manual. The following steps must be done: 1. - Page 11 This is the area where you “ADDRESS” the sensor with the magnet that is included with the sensor. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |...
-
Page 12: Operation
Operation • The Visum Monitor communicates with the flow sensors, indicating the presence or absence / blockage of flow. • When you turn on the monitor the monitor should display a “00“on display and both LED should be OFF, indicating that no sensor has communicated with the monitor. - Page 13 MANEUVER state is typically when you are maneuvering on the headlands making turns or similar maneuvering situations when the fertilizer is not expected to be flowing. It can be detect as MANEUVER state if you turn off one section. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |...
-
Page 14: Functions Description
Possible statuses are: • Green Flow Ok • Red Flow Failure • Orange (blinking for version Missing Sensor 4.7 or superior) Missing sensor is when the monitor does not receive a signal from that sensor for more than 5 minutes. | J.Assy... -
Page 15: F2 | Beep Volume
(just shake it) and put the magnet on the row indicator on the rubber cover. 3. Monitor will display the row number and the 8 digits of the sensor ID. The operation can be cancelled by pressing OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |... -
Page 16: F5 | Add Sensors
• After 10 seconds the added sensors should be listed by the function F1. ATTENTION: • All the sensors must be added to network when installing a new monitoring system. F6 | Show Monitor ID Show the 8 digits of the Monitor ID. | J.Assy... -
Page 17: F7 | Maneuver Beep Delay
3. When the desired value is defined press to confirm. TIP: • A more frequent beep is recommended when you are going to turn off a whole section for some task and should turn on this section after some time. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |... -
Page 18: Troubleshooting Table
No antenna is attached to (no show on F1 list and/or the Monitor. alarm with orange LED). Maneuver state occurs Several sensors informed no during normal operation. flow status. If you need more assistance please contact our technical team to help you. | J.Assy... - Page 19 Turn off any high-power radio source near to the implement. Check if there is enough flow running on the pipes. Check if there is a section turned off. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |...
-
Page 20: Cleaning And Storage
The sensors can be stored as installed on the machine or kept inside during the “off season”. Warranty This product is warranted by J.Assy Agricultural to be free from defects in material and workmanship for two (2) years from date of purchase of the original purchaser. -
Page 21: Discarding
For repair or replacement, return defective product to the original place of purchase. Discarding Dispose of properly. Recycling electronics conserves natural resources and minimizes the environmental impact of improper disposal. OPERATOR´S MANUAL | Visum Monitor | Visum Fertilizer |... - Page 22 www.assyag.com info@assyag.com...
