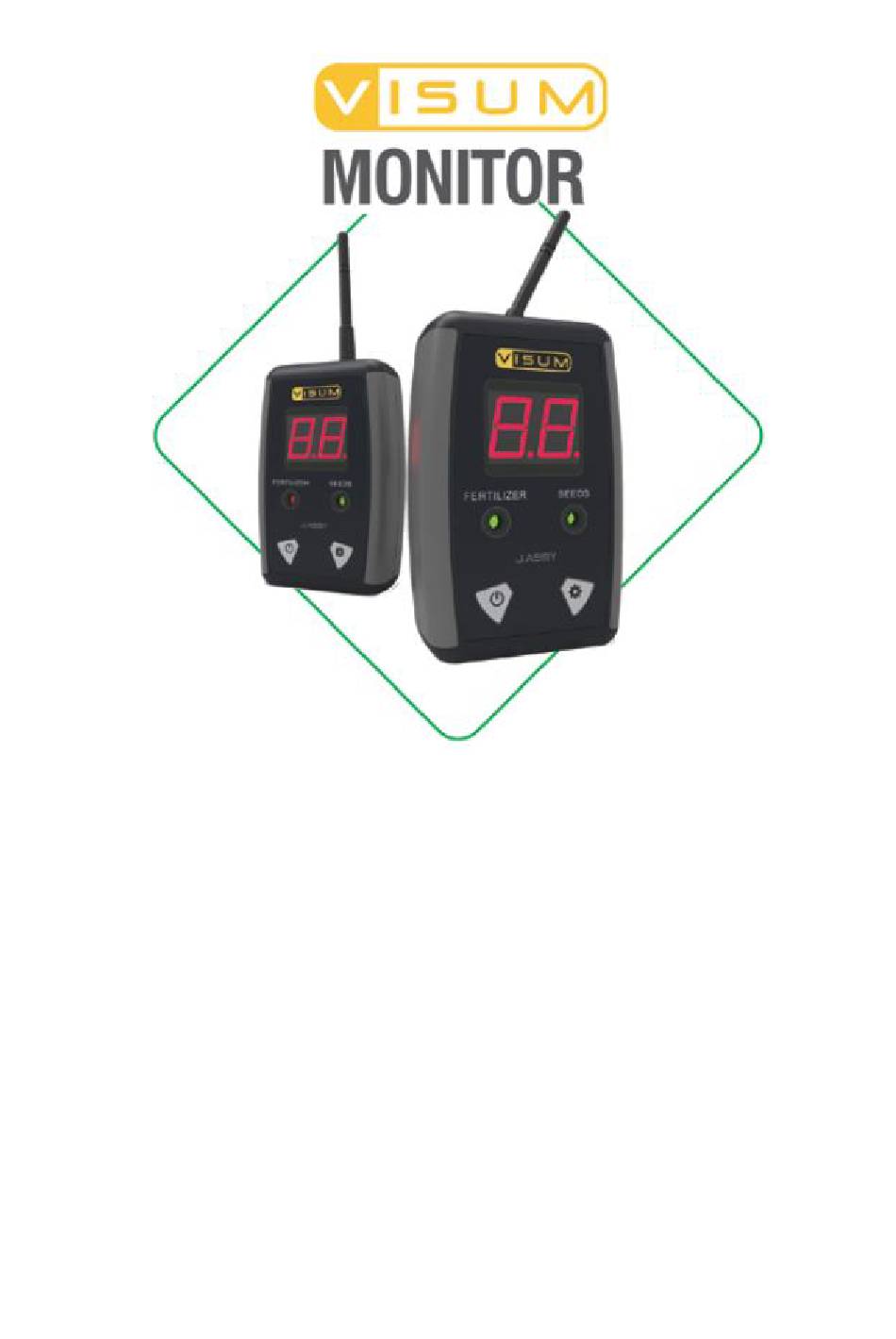

J.ASSY VISUM Monitor Operator's Manual
Hide thumbs
Also See for VISUM Monitor:
- Operator's manual (42 pages) ,
- Technical manual (13 pages) ,
- Operator's manual (22 pages)
Related Manuals for J.ASSY VISUM Monitor
Summary of Contents for J.ASSY VISUM Monitor
- Page 1 OPERATOR’S MANUAL Manual version: v3.1i Product version: v1.1i Software version: v3.3 Contact us: J.ASSY Agricultural www.assyag.com | info@assyag.com...
- Page 2 OPERATOR’S MANUAL Manual version: v3.1i Product version: v1.1i Software version: v3.3 This device contains FCC ID 2AD66-RF2401F20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Installation ............................. 4 Power connection ......................... 4 Operation ............................4 Functions description ........................5 Function 01 ..........................5 Function 02 ..........................5 Function 03 ..........................6 Function 04 ..........................6 Function 05 ..........................6 Function 06 .......................... -
Page 4: Specifications
It may affect the functionality of other electronics in the tractor. Operation - The Visum Monitor communicates with the flow sensors, indicating the presence or absence / blockage of flow. - The Monitor communicates only with sensors assigned to its ID, which is on a label on the back of the Monitor. -
Page 5: Functions Description
- The flow sensor has 3 basic parameters. - The TYPE of the flow: Seed of fertilizer flow. - The TIME, which is related to the period of time without flow that the sensor will wait before sending a no flow signal to the monitor. The higher the TIME, the higher will be this period. -
Page 6: Function 03
Function 03 Adjust the brightness of the leds and display. 1. Select Function 03. 2. Select the desired brightness by pressing button - b0: Low - b1: Medium - b2: High 3. Confirm by pressing button Function 04 Configuration of the parameters of only one sensor. 1. -
Page 7: Function 06
6. Then the display will show “SE” (meaning SENSIBILITY) for 2 seconds. 7. Select the desired SENSIBILITY by pressing and confirm by pressing 8. Then the display will blink “--” while the configuration is ongoing. The operation can be cancelled by pressing 9. -
Page 8: Usage Tips
Usage Tips - Turn off the monitor when the machine is not in use. Thus, the sensors will always be sleeping, which increases battery life. - Wash the flow sensors only with water and with hands or soft sponge. Do not use metal, hard or sharp objects, which may damage the sensor surface.
