MAKS PRO Manual

WIRELESS SECURITY CENTER
• smartphone control
• smartphone or tablet setup
• two Ethernet and GSM/GPRS communication channels
• secure two-way radio communication
with wireless devices
• two transceivers 868.0 ... 868.6MHz. Range - up to 2000 m
• radio channel tampering detection
• 2500 mAh battery - up to 24 hours of operation
• connection to security companies via ContactID
• easy and fast installation

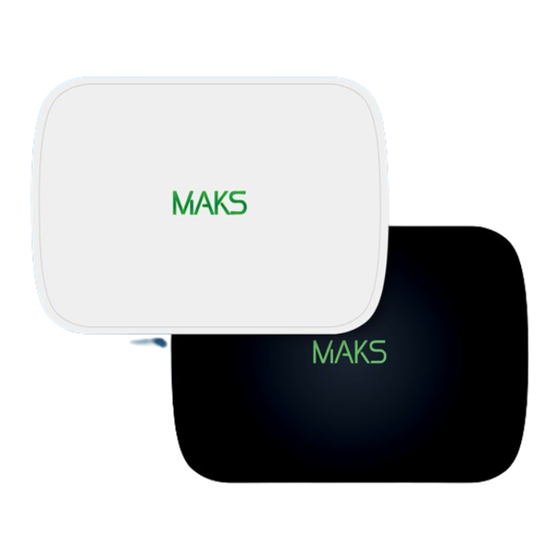

The MAKS PRO wireless security system center is designed to control the home
security system. MAKS PRO supports connection of up to 200 devices (sensors,
keyboards, key fobs, etc.) via radio channel at a distance of up to 2000 m.
The device interacts with the user and the security company, using the Internet
and GSM/GPRS communication for reliability.
Radio communication
Two transceivers - 868.0 ... 868.6 MHz, with several channels for redundancy.
Secure two-way radio communication with radio channel tamper detection.
Distance - up to 2000 m in the open space.
Three grades of power, maximum - up to 25 mW.
User communication
The device needs Internet access to connect to the MAKS Cloud service. With
the help of the cloud service and the smartphone application, a user can
connect to MAKS PRO to manage and configure the device.
Communication with the security company
Round-the-clock Internet and GSM/GPRS communication, regardless of
whether the device was connected to a cloud service or not. Data exchange is
encrypted and protected against intelligent tampering.
Power redundancy
The device is equipped with a 2500 mAh battery and can work for up to 24
hours in the absence of the main power supply.
Features
In the absence of the main power supply and during the operation from the
built-in battery, the device switches to the power saving mode. In this mode,
the Ethernet communicator is switched off and only GSM/GPRS is working.
The permanent display of the device status will be switched off and
the status will be displayed once every 30 seconds by flashing.
If the SIM card is missing for 5 minutes, the device will turn off the GSM/GPRS
modem. In this case, after inserting the SIM card, the device should be
restarted.
User personal data
MAKS PRO is designed to ensure that only the minimum required amount of
personal data is stored in a cloud service under multi-level protection with all
the data exchange going through an encrypted channel.
For more information on setting up and operating the device, please visit
www.maks.systems
Characteristics
Security groups
Wireless devices in the system
sensors
keyboards
keyfobs
Users
ISM wireless interface, up to 2000 m
sabotage detection
secure two-way communication
Connection
network, Ethernet
GSM/GPRS modem
GSM/GPRS
Power supply and consumption
power supply unit included
Power redundancy
battery runtime
Operating temperature range
Overall dimensions
Weight
Case color
Please note: when installing and operating the device, observe the general
rules and regulations for electrical safety for electrical devices.
30
200
99
16
60
60
868.0... 868.6 MHz
+
key - 256 bits
100 Mbit
for redundancy
850/900/1800/1900 MHz
Class 4 (2 W @ 850/900MHz)
Class 1 (1 W @ 1800/1900MHz)
12 VDC, max. 0.35 A
battery, 2500 mAh
up to 24 hours
from -10°C to +55°C
167 x 120 x 25.4 mm
245 grams
white, black
