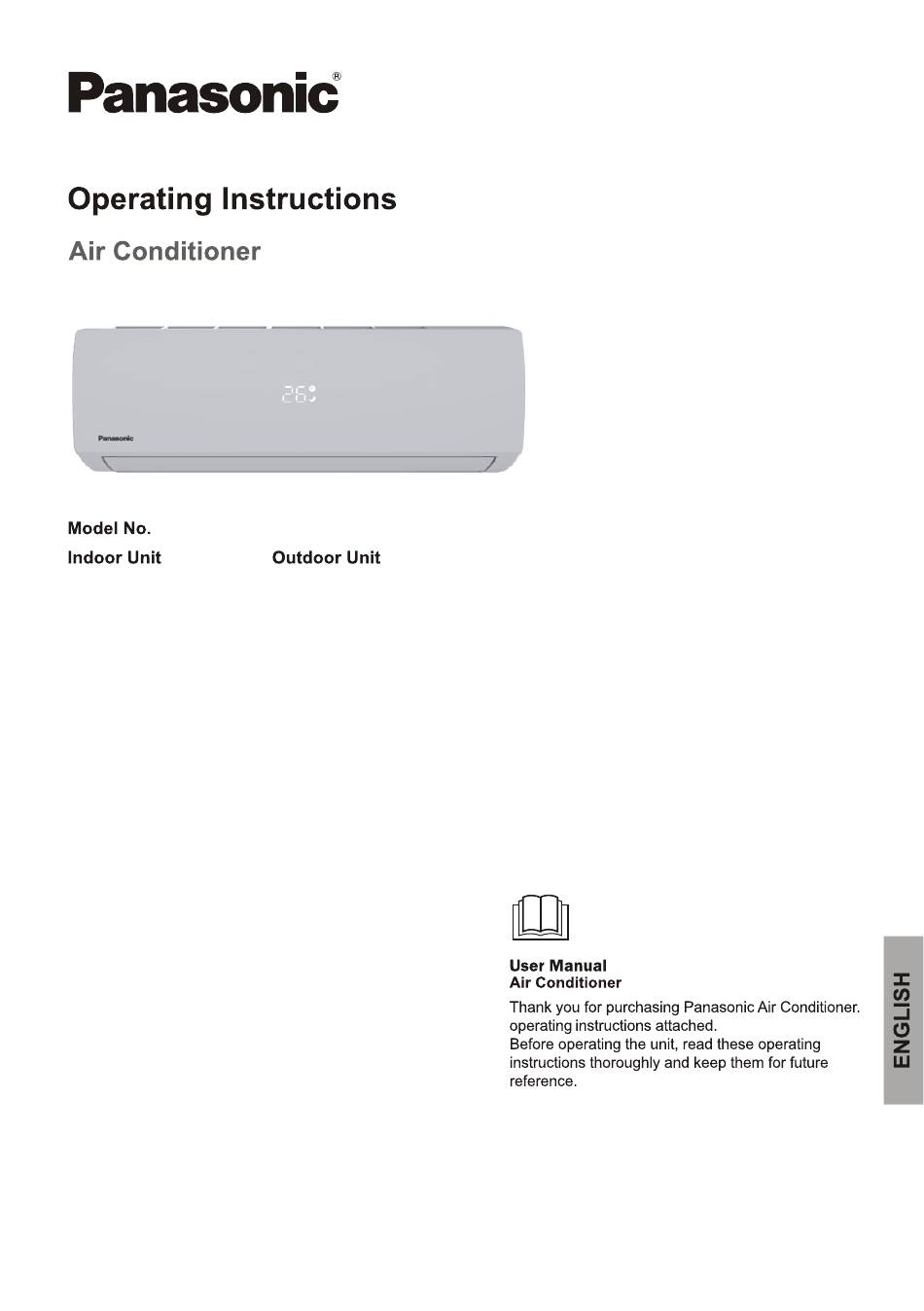

- Page 1 CS-YE9WKU1 CU-YE9WKU1 CS-YE12WKU1 CU-YE12WKU1...
-
Page 3: Table Of Contents
CONTENTS SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER ......1 ......................5 NAMES OF THE PARTS INDOOR UNIT DISPLAY ......................6 EMERGENCY FUNCTION & AUTO-RESTART FUNCTION ..........7 REMOTE CONTROL .......................8 OPERATING INSTRUCTIONS ....................12 PROTECTION .........................19 INSTALLATION ........................20 MAINTENANCE ........................29 ......................30 TROUBLESHOOTING... -
Page 4: Safety Rules And Recommendations For The Installer
Safety precautions To prevent personal injury, injury to others SAFETY RULES AND RECOMMENDATIONS or property damage, please comply with the following: FOR THE INSTALLER Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: This sign warns of death or serious injury. - Page 5 SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER The appliance must be fitted with means for This appliance can be used by children aged disconnection from the supply mains having from 8 years and above and persons with a contact separation in all poles that provide reduced physical, sensory or mental full disconnection under overvoltage capabilities or lack of experience and...
- Page 6 SAFETY RULES AND RECOMMENDATIONS FOR THE USER The user is responsible for having the Always use the appliance with the air filter appliance installed by a qualified technician, mounted. The use of the conditioner without who must check that it is earthed in air filter could cause an excessive accordance with current legislation and accumulation of dust or waste on the inner...
- Page 7 SAFETY RULES AND PROHIBITIONS Do not bend, tug or compress the power Do not climb onto or place any heavy or hot cord since this could damage it. Electrical objects on top of the appliance. shocks or f ire is caused by a damaged power cord.
-
Page 8: Names Of The Parts

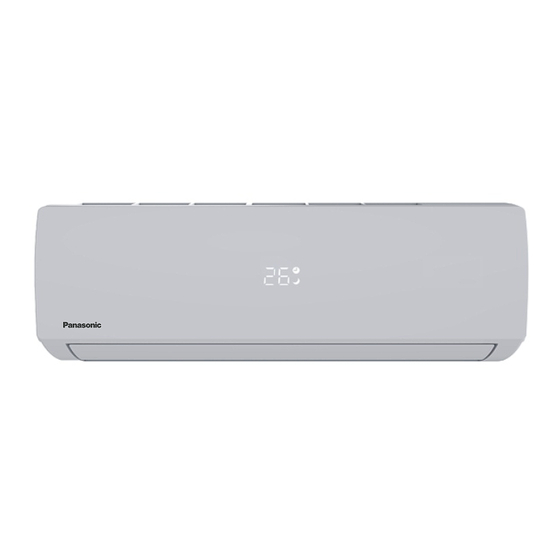

NAMES OF THE PARTS INDOOR UNIT INDOOR UNIT Description Front panel Air filter Optional filter (if installed) LED Display Signal receiver Terminal block cover Ionizer generator (if installed) Deflectors Emergency button Indoor unit rating label ( Stick position optional Airflow direction flaps Remote control OUTDOOR UNIT No. -
Page 9: Indoor Unit Display
INDOOR UNIT DISPLAY Function This symbol appears when the unit is power on POWER SLEEP mode SLEEP (1) Lights up during Timer operation when the air conditioner is operational Temperature display (if present) (2)Displays the malfunction code when fault /Error code occurs. -
Page 10: Emergency Function & Auto-Restart Function
EMERGENCY FUNCTION & AUTO-RESTART FUNCTION If the remote controller fails to work or maintenance necessary, proceed as following: front panel front panel Open and lift the front panel up to an angle to reach the emergency button. Press the emergency button, the unit will operate COOL mode at first. -
Page 11: Remote Control
REMOTE CONTROL ( NOTE: SEE ILLUSTRATION ON PAGE 89 ) Button Function To turn on or off the air conditioner . To decrease temperature, time setting or choose the function. To increase temperature, time setting or choose the function. To select the mode of operation(AUTO COOL DRY FAN HEAT). Mode Press this button to activate/deactivate the ECO function . - Page 12 REMOTE CONTROL The display and some functions of the remote control may vary according to the model. The shape and position of buttons and indicators may vary according to the model, but their function is the same. The unit confirms the correct reception of each button with a beep.
- Page 13 REMOTE CONTROL Remote control DISPLAY Meaning of symbols on the liquid crystal display Symbols Meaning Battery indicator Mode Auto function indicator Mode Cooling indicator Mode Dry indicator Mode Fan indicator Mode Heating indicator ECO indicator Timer indicator Temperature indicator Fan speed indicator: Auto/low/mid/high Mute indicator SUPER indicator Up-down auto swing indicator...
- Page 14 REMOTE CONTROL Replacement of Batteries Remove the battery cover plate from the rear of the remote control, by sliding it in the direction of the arrow. nstall the batteries according the direction (+and -)shown on the Remote Control. Reinstall the battery cover by sliding it into place. Use 2 LRO 3 AAA (1.5V) batteries.
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS The air sucked by the fan enters from the grill and passes through the filter, then it is cooled/dehumidified Filter or heated through the heat exchanger. Heat The direction of the air outlet is motorized up and down by flaps, and manually moved right and left by the vertical deflectors, for some models, the vertical deflectors could be controlled by motor as well. - Page 16 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS COOLING MODE The cooling function allows the air condit- COOL ioner to cool the room and at the same time reduces Air humidity. To activate the cooling function ( COOL ) , press the MODE button until the symbol appears on the display.
- Page 17 OPERATING INSTRUCTIONS DRY MODE This function reduces the humidity of the air to make the room more comfortable. To set the DRY mode , Press MODE until appears in the display. An automatic function of pre-setting is activated. FAN MODE(Not FAN button) Fan mode, air ventilation only.
- Page 18 OPERATING INSTRUCTIONS DISPLAY function (Indoor display) Switch ON/OFF the LED display on DISPLAY panel. Press DISPLAY button to switch off the LED display on the panel. Press again to switch on the LED display. SLEEP function Pre-setting automatic operating program. SLEEP Press SLEEP button to activate the SLEEP function, appears on the display.
- Page 19 OPERATING INSTRUCTIONS ECO function In this mode the appliance automatically sets the operation to save energy. Press the ECO button, the appears on the display, and the appliance will run in ECO mode. Press again to cancel it.. NOTE: The ECO function is available in both COOLING and HEATING modes.
- Page 20 OPERATING INSTRUCTIONS TIMER function ---- TIMER ON To automatic switch on the appliance. TIMER When the unit is switch-off, you can set the TIMER ON. To set the time of automatic switch-on, as below: 1. Confirm the appliance is OFF. And press the TIMER button at first time to set the needed mode and fan speed, the will appear on the display.
- Page 21 OPERATING INSTRUCTIONS I FEEL function (Optional) I FEEL Press I FEEL button to active the function, the will appear on the remote display. Do it again to deactivate this function. This function enables the remote control to measure the temperature at its current location, and send this signal to the air conditioner to optimize the temperature around you and ensure the comfort.
-
Page 22: Protection
PROTECTION The protective device may trip and stop the appliance in the cases listed below. MODEL Cooling operating Heatling operating Drying operating Temperature 17 ~32 0 ~30 17 ~32 Room Temperature 63 ~89 32 ~86 63 ~89 15 ~53 59 ~127 -25 ~30 15 ~53 -15 ~53... -
Page 23: Installation
INSTALLATION---Selecting the Installation Place WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. - Page 24 INSTALLATION MANUAL---Installation of the Indoor unit Before starting installation, decide on the position of the indoor and outdoor units, taking into account the minim- um space required around the units. Install the indoor unit in the room to be air conditioned avoiding in corridors or communal areas.
- Page 25 INSTALLATION MANUAL---Installation of the Indoor unit Refrigerant piping connection The piping can be ran in 3 directions (indicated by numbers in the pictures). When the piping is ran in direction 1 or 3, cut a notch along the groove on the side of the indoor unit with a cutter.
- Page 26 INSTALLATION MANUAL---Installation of the Indoor unit INSTALLATION OF THE INDOOR UNIT After having connected the pipe according to the instruc- Covered by vinyl tape tions, install the connection cables. Now install the drain refrigerant insulation pipe. After connection,lag the pipe, cables and drain pipe pipe sleeve with the insulating material.
- Page 27 INSTALLATION MANUAL---Installation of the outdoor unit ELECTRICAL CONNECTIONS wiring diagram on the back of the cover 1. Remove the handle on the right side plate of outdoor unit. 2. Connect the power connection cord to the terminal board. Wiring should fit that of indoor unit. 3.
- Page 28 INSTALLATION MANUAL---Installation of the outdoor unit BLEEDING INSTALLATION MANUAL---operation test Wrap applying correctly? correctly? correctly? correctly?
- Page 29 INSTALLATION MANUAL---Information for the installer INVERTER TYPE MODEL capacity (Btu/h) Liquid pipe diameter ( 6) ( 6) Gas pipe diameter ( 9.52) ( 9.52) Length of pipe with standard charge 24.61 ft 24.61 ft 49.21 ft 49.21 ft Maximum distance between indoor and outdoor unit Additional refrigerant charge 6.17g/ft 6.17g/ft...
- Page 30 INSTALLATION MANUAL---Information for the installer WIRING DIAGRAM For different models, the wiring diagram may be different. Please refer to the wiring diagrams affixed to the indoor unit and outdoor unit respectively. On the indoor unit, the wiring diagram is l ocated under the front panel;...
- Page 31 INSTALLATION MANUAL---Information for the installer CABLE WIRES SPECIFICATION 9K-115V 12K-115V INVERTER TYPE MODEL capacity (Btu/h) sectional area 3.0mm 3.0mm N(L2) AWG12 AWG12 3.0mm 3.0mm Power supply cable L(L1) AWG12 AWG12 3.0mm 3.0mm AWG12 AWG12 3(L) 2(N) Connection supply cable 1(S) 110V 9K 12K air conditioner indoor unit fuse parameter is 50T, 3.15A, 125V 9K , 12K air conditioner outdoor unit fuse parameter is 61T, 15A,...
-
Page 32: Maintenance
MAINTENANCE Periodic maintenance is essential for keeping your air conditioner efficient. Before carrying out any maintenance, t urn the power supply off . INDOOR UNIT ANTIDUST FILTERS 1. Open the front panel (following the direction of the arrow). 2. Keeping the front panel raised with one hand, take out the air filter with the other hand. -
Page 33: Troubleshooting
TROUBLESHOOTING MALFUNCTION POSSIBLE CAUSES Power failure/plug pulled out. Damaged indoor/outdoor unit fan motor. Faulty compressor thermomagnetic circuit breaker. Faulty protective device or fuses. The appliance does not Loose connections or plug pulled out. operate It sometimes stops operating to protect the appliance. Voltage higher or lower than the voltage range. - Page 34 Federal Communications Commission Interference Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to company with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 36 Panasonic Corporation of North America Panasonic Appliances Air-Conditioning North America 1690 Roberts Blvd., NW, Suite 110, Kennesaw, GA 30144 U.S.A. us.panasonic.com/hvac Customer Service: 800-851-1235 Panasonic Canada Inc. Enterprise Product Sales 5770 Ambler Dr., Mississauga, ON, L4W 2T3 CANADA na.panasonic.com/ca/hvac...
