Compaq StorageWorks AIT 35GB AutoLoader Overview And Installation page 4

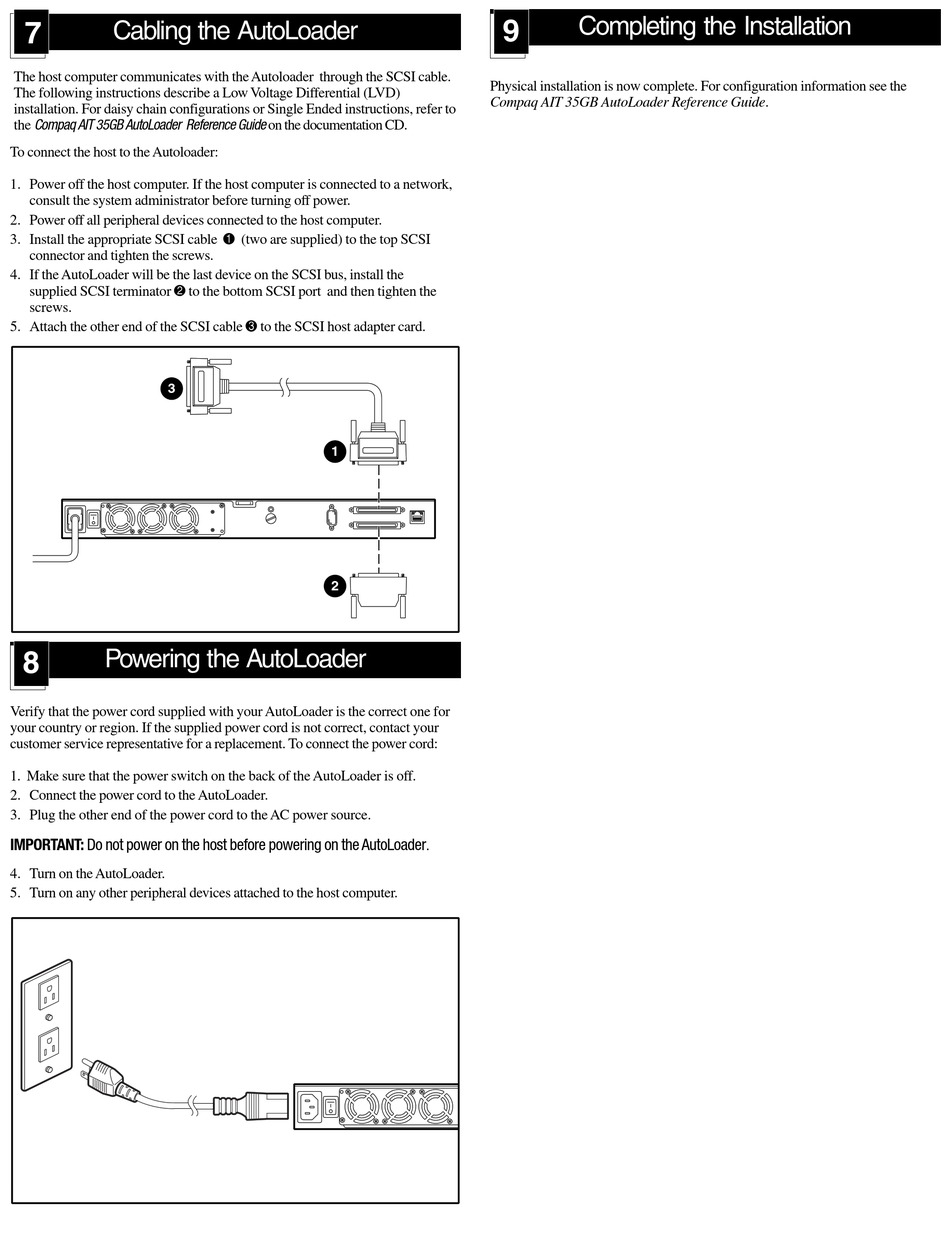

Cabling the AutoLoader
7
The host computer communicates with the Autoloader through the SCSI cable.
The following instructions describe a Low Voltage Differential (LVD)
installation. For daisy chain configurations or Single Ended instructions, refer to
the Compaq AIT 35GB AutoLoader Reference Guide on the documentation CD.
To connect the host to the Autoloader:
1. Power off the host computer. If the host computer is connected to a network,
consult the system administrator before turning off power.
2. Power off all peripheral devices connected to the host computer.
3. Install the appropriate SCSI cable 1 (two are supplied) to the top SCSI
connector and tighten the screws.
4. If the AutoLoader will be the last device on the SCSI bus, install the
supplied SCSI terminator 2 to the bottom SCSI port and then tighten the
screws.
5. Attach the other end of the SCSI cable 3 to the SCSI host adapter card.
3
Powering the AutoLoader
8
Verify that the power cord supplied with your AutoLoader is the correct one for
your country or region. If the supplied power cord is not correct, contact your
customer service representative for a replacement. To connect the power cord:
1. Make sure that the power switch on the back of the AutoLoader is off.
2. Connect the power cord to the AutoLoader.
3. Plug the other end of the power cord to the AC power source.
IMPORTANT: Do not power on the host before powering on the AutoLoader
4. Turn on the AutoLoader.
5. Turn on any other peripheral devices attached to the host computer.
9
Physical installation is now complete. For configuration information see the
Compaq AIT 35GB AutoLoader Reference Guide.
1
2
.
Completing the Installation
