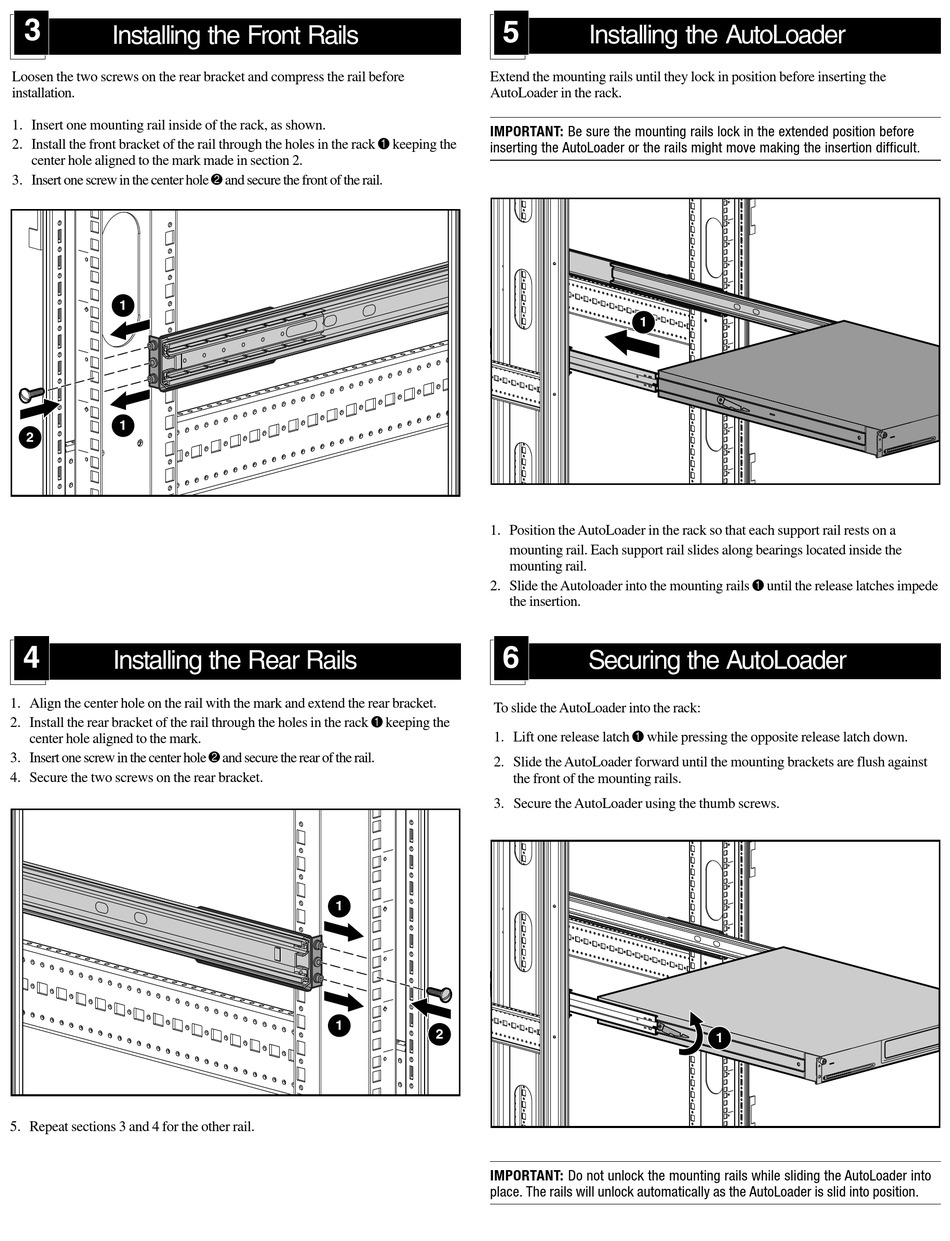

Compaq StorageWorks AIT 35GB AutoLoader Overview And Installation page 3

3
Installing the Front Rails
Loosen the two screws on the rear bracket and compress the rail before
installation.
1. Insert one mounting rail inside of the rack, as shown.
2. Install the front bracket of the rail through the holes in the rack 1 keeping the
center hole aligned to the mark made in section 2.
3. Insert one screw in the center hole 2 and secure the front of the rail.
1
1
2
4
Installing the Rear Rails
1. Align the center hole on the rail with the mark and extend the rear bracket.
2. Install the rear bracket of the rail through the holes in the rack 1 keeping the
center hole aligned to the mark.
3. Insert one screw in the center hole 2 and secure the rear of the rail.
4. Secure the two screws on the rear bracket.
5. Repeat sections 3 and 4 for the other rail.
5
Extend the mounting rails until they lock in position before inserting the
AutoLoader in the rack.
IMPORTANT: Be sure the mounting rails lock in the extended position before
inserting the AutoLoader or the rails might move making the insertion difficult.
1. Position the AutoLoader in the rack so that each support rail rests on a
mounting rail. Each support rail slides along bearings located inside the
mounting rail.
2. Slide the Autoloader into the mounting rails 1 until the release latches impede
the insertion.
6
To slide the AutoLoader into the rack:
1. Lift one release latch 1 while pressing the opposite release latch down.
2. Slide the AutoLoader forward until the mounting brackets are flush against
the front of the mounting rails.
3. Secure the AutoLoader using the thumb screws.
1
1
2
IMPORTANT: Do not unlock the mounting rails while sliding the AutoLoader into
place. The rails will unlock automatically as the AutoLoader is slid into position.
Installing the AutoLoader
1
Securing the AutoLoader
1
