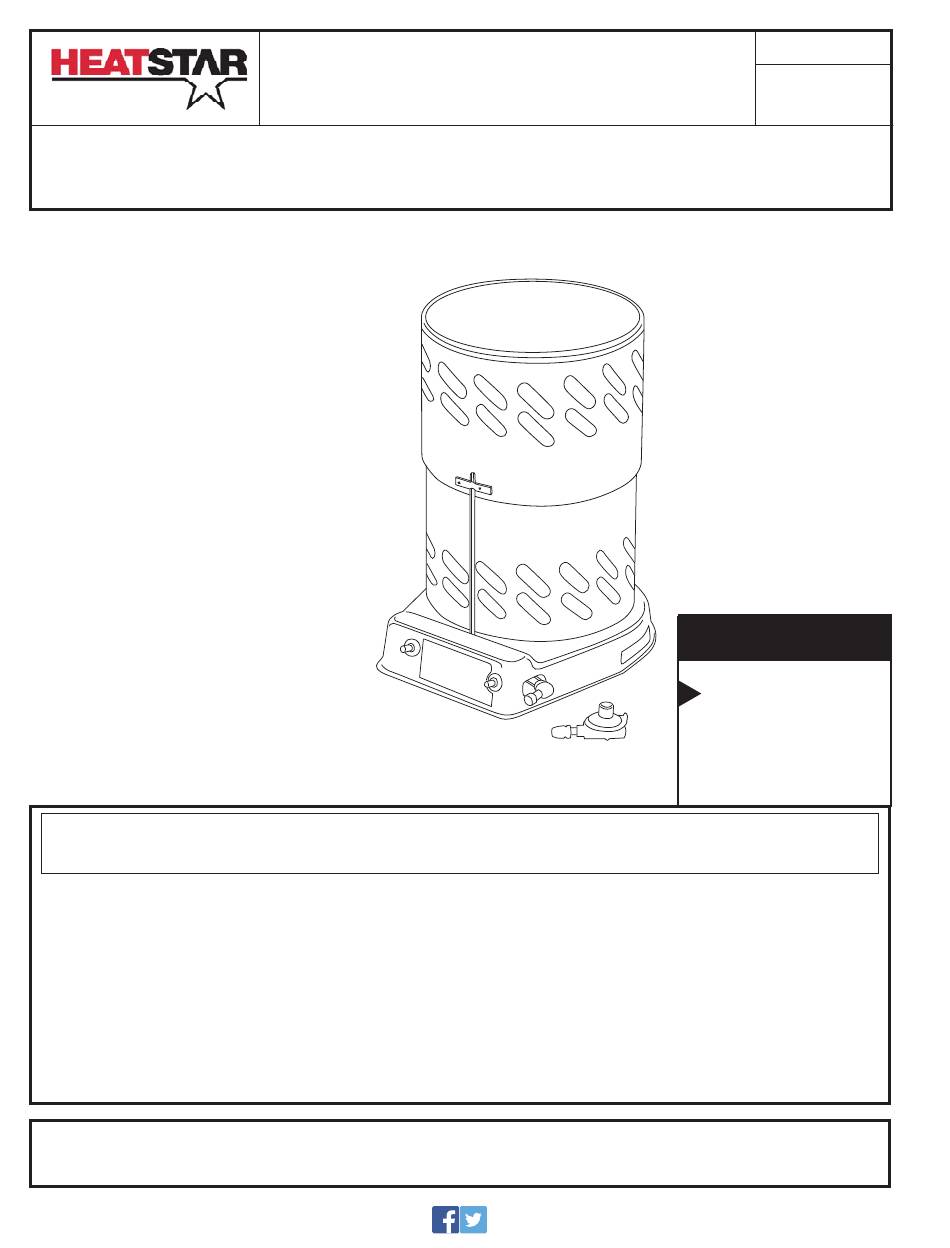

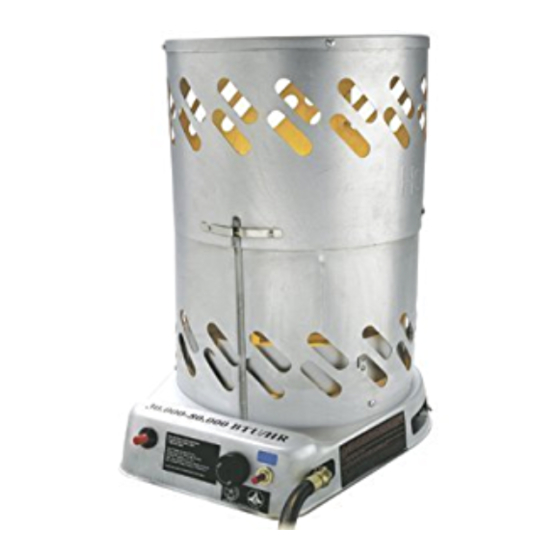

Convection construction heater
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe
place for future reference. Do not allow anyone who has not read these instructions to assemble,
light, adjust or operate the heater.
CONVECTION
CONSTRUCTION HEATER
If the information in this manual is not followed exactly, a fire or explosion
WARNING:
may result causing property damage, personal injury or loss of life.
· Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
· WHAT TO DO IF YOU SMELL GAS
Do not try to light appliance.
Extinguish any open flame.
Shut off gas to appliance.
· Service must be performed by a qualified service agency.
This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used.
Adequate combustion and ventilation air must be provided. Refer to page 3.
OPERATING INSTRUCTIONS
AND OWNER'S MANUAL
Heat Star, 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 866-447-2194
Model #
HS80CVNG
LANGUAGES
ENGLISH
Pages E1 · E8
FRENCH
Pages F1 · F8
28131 -09/15
