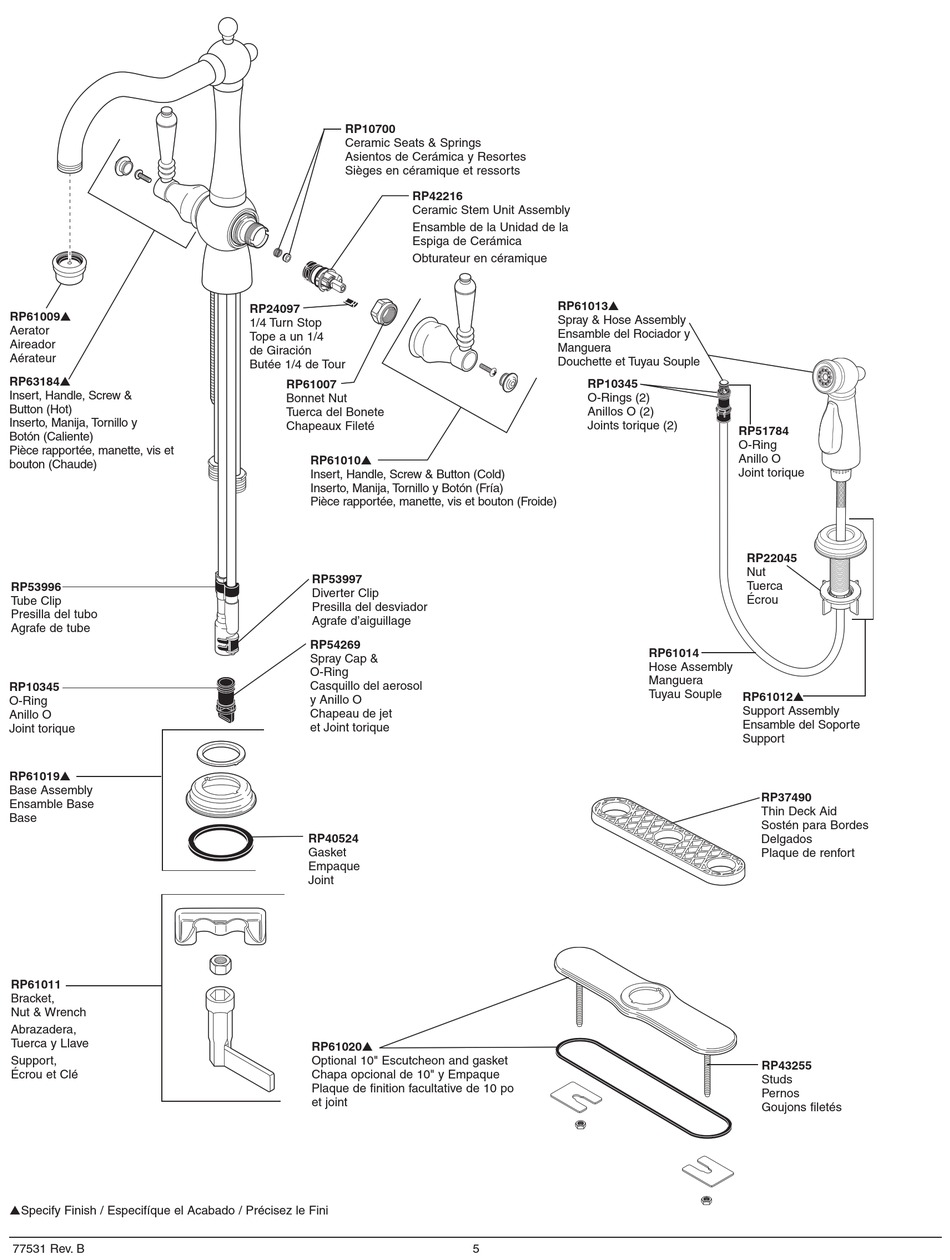

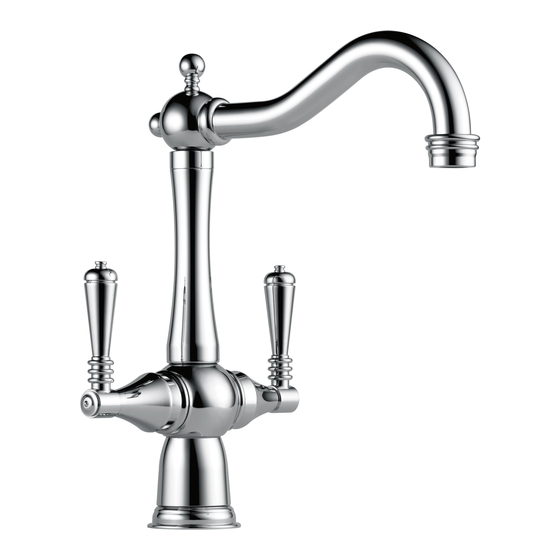

RP61009s
Aerator
Aireador
Aérateur
RP63184s
Insert, Handle, Screw &
Button (Hot)
Inserto, Manija, Tornillo y
Botón (Caliente)
Pièce rapportée, manette, vis et
bouton (Chaude)
RP53996
Tube Clip
Presilla del tubo
Agrafe de tube
RP10345
O-Ring
Anillo O
Joint torique
RP61019s
Base Assembly
Ensamble Base
Base
RP61011
Bracket,
Nut & Wrench
Abrazadera,
Tuerca y Llave
Support,
Écrou et Clé
sSpecify Finish / Especifíque el Acabado / Précisez le Fini
77531 Rev. B
RP10700
Ceramic Seats & Springs
Asientos de Cerámica y Resortes
Sièges en céramique et ressorts
RP42216
Ceramic Stem Unit Assembly
Ensamble de la Unidad de la
Espiga de Cerámica
Obturateur en céramique
RP24097
1/4 Turn Stop
Tope a un 1/4
de Giración
Butée 1/4 de Tour
RP61007
Bonnet Nut
Tuerca del Bonete
Chapeaux Fileté
RP61010s
Insert, Handle, Screw & Button (Cold)
Inserto, Manija, Tornillo y Botón (Fría)
Pièce rapportée, manette, vis et bouton (Froide)
RP53997
Diverter Clip
Presilla del desviador
Agrafe d'aiguillage
RP54269
Spray Cap &
O-Ring
Casquillo del aerosol
y Anillo O
Chapeau de jet
et Joint torique
RP40524
Gasket
Empaque
Joint
RP61020s
Optional 10" Escutcheon and gasket
Chapa opcional de 10" y Empaque
Plaque de finition facultative de 10 po
et joint
RP61013s
Spray & Hose Assembly
Ensamble del Rociador y
Manguera
Douchette et Tuyau Souple
RP10345
O-Rings (2)
Anillos O (2)
Joints torique (2)
RP61014
Hose Assembly
Manguera
Tuyau Souple
5
RP51784
O-Ring
Anillo O
Joint torique
RP22045
Nut
Tuerca
Écrou
RP61012s
Support Assembly
Ensamble del Soporte
Support
RP37490
Thin Deck Aid
Sostén para Bordes
Delgados
Plaque de renfort
RP43255
Studs
Pernos
Goujons filetés
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Brizo Tresa 62036LF
Summary of Contents for Brizo Tresa 62036LF
- Page 1 RP10700 Ceramic Seats & Springs Asientos de Cerámica y Resortes Sièges en céramique et ressorts RP42216 Ceramic Stem Unit Assembly Ensamble de la Unidad de la Espiga de Cerámica Obturateur en céramique RP61013s RP24097 RP61009s Spray & Hose Assembly 1/4 Turn Stop Aerator Ensamble del Rociador y Tope a un 1/4...
-
Page 2: Cleaning And Care
Company para todos los reclamos a menos que el comprador haya registrado el producto con Delta Faucet Company reemplazará, SIN CARGO, durante el período de garantía aplicable, cual- Delta Faucet Company. Esta garantía le aplica sólo a las llaves de agua de Brizo fabricadas ®... - Page 3 Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. You may need/Usted puede necesitar/ Articles dont vous pouvez avoir besoin: For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
- Page 4 OPTIONAL Mount Faucet to Deck Optional Escutcheon Installation Your faucet is designed for a hole diameter of Install the mounting bracket (1) and nut (2) onto the For optional installations using the 10" escutcheon, 1 3/8" +/- 1/4" (35 mm +/- 6 mm) and a deck mounting stud (3) using wrench (4).
- Page 5 For Models With Side Spray Spread the tubes (1) to desired position by grabbing Mount spray support assembly (1) in far right hole in sink. HAND TIGHTEN ONLY. Insert spray hose near the top of the tubes. WARNING: Kinked tubes (2) down through spray support.
-
Page 6: Maintenance
MAINTENANCE If faucet exhibits very low flow: Remove and clean Aerator (1). If faucet leaks from spout outlet: Shut off water supplies– Replace Seats and Springs (2). * Turn on hot and cold water supplies (1). Remove aerator (2) and If leak persists: Shut off water supplies–...
Need help?
Do you have a question about the Tresa 62036LF and is the answer not in the manual?
Questions and answers
