Model/Modelo/Modèle
62710LF, 62720LF,
62810LF, 62820LF,
62725LF & 62825LF
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your Delta faucet
you will need:
・To READ ALL the instructions completely before
beginning.
・To READ ALL warnings, care and maintenance
information.
・To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
・LEER TODAS las instrucciones completamente
antes de empezar.
・LEER TODAS los avisos, cuidados, e información
de mantenimiento.
・Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
・LIRE TOUTES les instructions avant de débuter.
・LIRE TOUE LES les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
・Acheter le bon nécessaire de raccordement.
www.brizo.com
WALL MOUNTED AND DECK MOUNTED POT FILLER FAUCETS
86523
LLAVES DE AGUA EXTENDIBLES PARA INSTALAR EN LA
PARED, O EN LOS ESTANTES DE COCINA, PARA LLENAR
OLLAS Y SIMILARES.
ROBINETS POUR REMPLISSAGE DE GROSSES MARMITES
MONTÉS AU MUR OU SUR UN PLAN DE TRAVAIL
62710LF
62810LF
Deck mounted

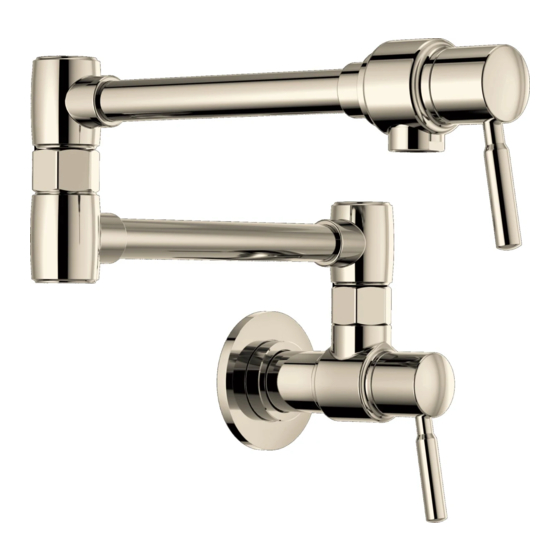

Wall mounted
86523
1
62720LF
62820LF
62725LF
62825LF
12/20/2016
Rev. C
Advertisement
Table of Contents
Related Manuals for Brizo Artesso 62820LF
Summary of Contents for Brizo Artesso 62820LF
- Page 1 Pour installer votre robinet Delta facilement, vous devez: ・LIRE TOUTES les instructions avant de débuter. ・LIRE TOUE LES les avertissements ainsi que toutes les instructions de nettoyage et d’entretien. ・Acheter le bon nécessaire de raccordement. 86523 www.brizo.com 12/20/2016 Rev. C...
- Page 2 Hole size - 7/8" (22 mm) - 1 1/8” (29 mm) diameter. Tamaño del agujero - 7/8” (22 mm) - 1 1/8” (29 mm) de diámetro. Diamètre du trou – 7/8 po (22 mm) - 1 1/8 po (29 mm). 1/2"...
- Page 3 1/2" (13 mm) 1/2 po (13 mm) WARNING: Connect to Cold Water Only. AVISO: Conecte Sólo al Agua Fría. AVERTISSEMENT : Ne raccordez qu’à la conduite d’alimentation d’eau froide seulement. Wall Mount Models Use of stringers is recommended for a secure mounting. WARNING: To prevent hot water burns make connection to Mark the screw holes (1) in the flange.
- Page 4 Tighten set screw in flange (1). Slide flange trim (2) over the wall flange Wrap plumber tape (1) around pipe threads. Install the gasket (2) and and tighten set screw (3). the flange (3) using the 4 screws (and anchors if required) provided. Place flange trim (1) onto the faucet as shown.
- Page 5 FlushYour System Notice Remove aerator (1) and turn faucet handles (2) to the full on position. Turn on cold water supplies (3) and flush water lines Property damage and water leak possible. Leaks and property damage may occur from incorrect installation. Follow all installation instructions before making for one minute.Important: This flushes away any debris that final connections and turning on the supplies.
- Page 6 Maintenance If faucet leaks out of spout or handle - Replace valve cartridge (1). If faucet exhibits very low flow - Remove and clean aerator (4). Pull off handle (2) or remove button, screw, handle and base (3). Unscrew and replace valve cartridge, 19 mm hex. Assemble in reverse order.
- Page 7 62710LF, 62720LF & 62725LF Models / Modelos / Modeles RP61193▲ Traditional Handle Manija Tradicional Manette Traditional RP92296▲ RP61195▲ Artesso Handle Contemporary Handle RP61194▲ Manija contemporánea Manija contemporánea Handle Base with Insert Manette contemporain Manette contemporain Base para Manijas con Inserción Embase de Manette avec l’insertion RP75838 Valve Cartridge, Cold Side...
- Page 8 & Bath Company para todos los reclamos a menos que el comprador haya registrado el producto compra. No se garantizan las pilas. con Brizo Kitchen & Bath Company. Esta garantía le aplica sólo a las llaves de agua de Brizo ®...
