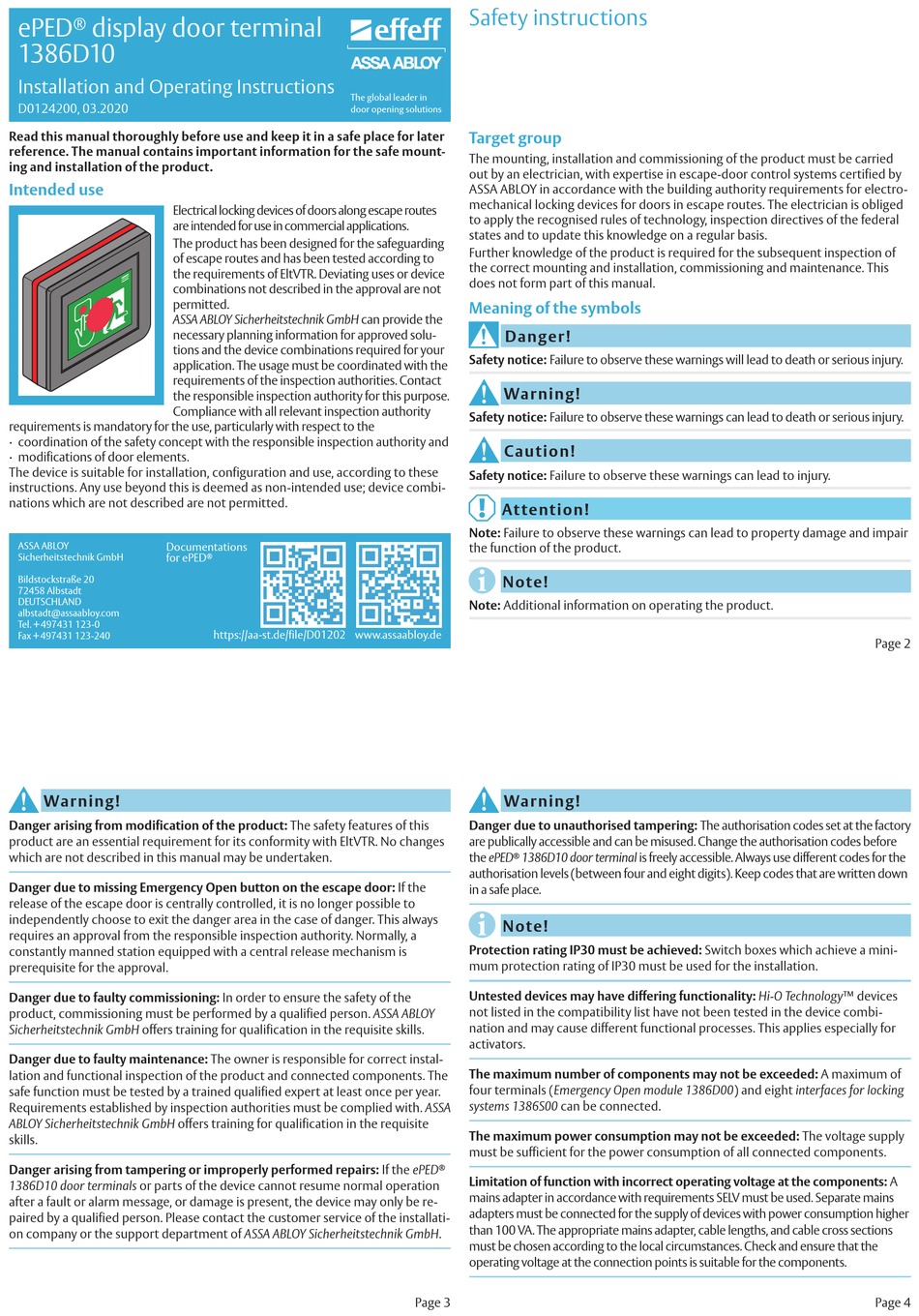

ePED ® display door terminal
1386D10
Installation and Operating Instructions
D0124200, 03.2020
Read this manual thoroughly before use and keep it in a safe place for later
reference. The manual contains important information for the safe mount-
ing and installation of the product.
Intended use
Electrical locking devices of doors along escape routes
are intended for use in commercial applications.
The product has been designed for the safeguarding
of escape routes and has been tested according to
the requirements of EltVTR. Deviating uses or device
Y
L O
A B
S A
A S combinations not described in the approval are not
permitted.
ASSA ABLOY Sicherheitstechnik GmbH can provide the
necessary planning information for approved solu-
tions and the device combinations required for your
application. The usage must be coordinated with the
requirements of the inspection authorities. Contact
the responsible inspection authority for this purpose.
Compliance with all relevant inspection authority
requirements is mandatory for the use, particularly with respect to the
· coordination of the safety concept with the responsible inspection authority and
· modifications of door elements.
The device is suitable for installation, configuration and use, according to these
instructions. Any use beyond this is deemed as non-intended use; device combi-
nations which are not described are not permitted.
ASSA ABLOY Documentations
Sicherheitstechnik GmbH for ePED
Bildstockstraße 20
72458 Albstadt
DEUTSCHLAND
albstadt@assaabloy.com
Tel. + 497431 123-0
Fax + 497431 123-240
!
Warning!
Danger arising from modification of the product: The safety features of this
product are an essential requirement for its conformity with EltVTR. No changes
which are not described in this manual may be undertaken.
Danger due to missing Emergency Open button on the escape door: If the
release of the escape door is centrally controlled, it is no longer possible to
independently choose to exit the danger area in the case of danger. This always
requires an approval from the responsible inspection authority. Normally, a
constantly manned station equipped with a central release mechanism is
prerequisite for the approval.
Danger due to faulty commissioning: In order to ensure the safety of the
product, commissioning must be performed by a qualified person. ASSA ABLOY
Sicherheitstechnik GmbH offers training for qualification in the requisite skills.
Danger due to faulty maintenance: The owner is responsible for correct instal-
lation and functional inspection of the product and connected components. The
safe function must be tested by a trained qualified expert at least once per year.
Requirements established by inspection authorities must be complied with. ASSA
ABLOY Sicherheitstechnik GmbH offers training for qualification in the requisite
skills.
Danger arising from tampering or improperly performed repairs: If the ePED
1386D10 door terminals or parts of the device cannot resume normal operation
after a fault or alarm message, or damage is present, the device may only be re-
paired by a qualified person. Please contact the customer service of the installati-
on company or the support department of ASSA ABLOY Sicherheitstechnik GmbH.
The global leader in
door opening solutions
®
https://aa-st.de/file/D01202 www.assaabloy.de
Safety instructions
Target group
The mounting, installation and commissioning of the product must be carried
out by an electrician, with expertise in escape-door control systems certified by
ASSA ABLOY in accordance with the building authority requirements for electro-
mechanical locking devices for doors in escape routes. The electrician is obliged
to apply the recognised rules of technology, inspection directives of the federal
states and to update this knowledge on a regular basis.
Further knowledge of the product is required for the subsequent inspection of
the correct mounting and installation, commissioning and maintenance. This
does not form part of this manual.
Meaning of the symbols
D
Danger!
Safety notice: Failure to observe these warnings will lead to death or serious injury.
!
Warning!
Safety notice: Failure to observe these warnings can lead to death or serious injury.
!
Caution!
Safety notice: Failure to observe these warnings can lead to injury.
A
At tention!
Note: Failure to observe these warnings can lead to property damage and impair
the function of the product.
I
Note!
Note: Additional information on operating the product.
!
Warning!
Danger due to unauthorised tampering: The authorisation codes set at the factory
are publically accessible and can be misused. Change the authorisation codes before
the ePED ® 1386D10 door terminal is freely accessible. Always use different codes for the
authorisation levels (between four and eight digits). Keep codes that are written down
in a safe place.
I
Note!
Protection rating IP30 must be achieved: Switch boxes which achieve a mini-
mum protection rating of IP30 must be used for the installation.
Untested devices may have differing functionality: Hi-O Technology™ devices
not listed in the compatibility list have not been tested in the device combi-
nation and may cause different functional processes. This applies especially for
activators.
The maximum number of components may not be exceeded: A maximum of
four terminals (Emergency Open module 1386D00) and eight interfaces for locking
systems 1386S00 can be connected.
The maximum power consumption may not be exceeded: The voltage supply
must be sufficient for the power consumption of all connected components.
®
Limitation of function with incorrect operating voltage at the components: A
mains adapter in accordance with requirements SELV must be used. Separate mains
adapters must be connected for the supply of devices with power consumption higher
than 100 VA. The appropriate mains adapter, cable lengths, and cable cross sections
must be chosen according to the local circumstances. Check and ensure that the
operating voltage at the connection points is suitable for the components.
