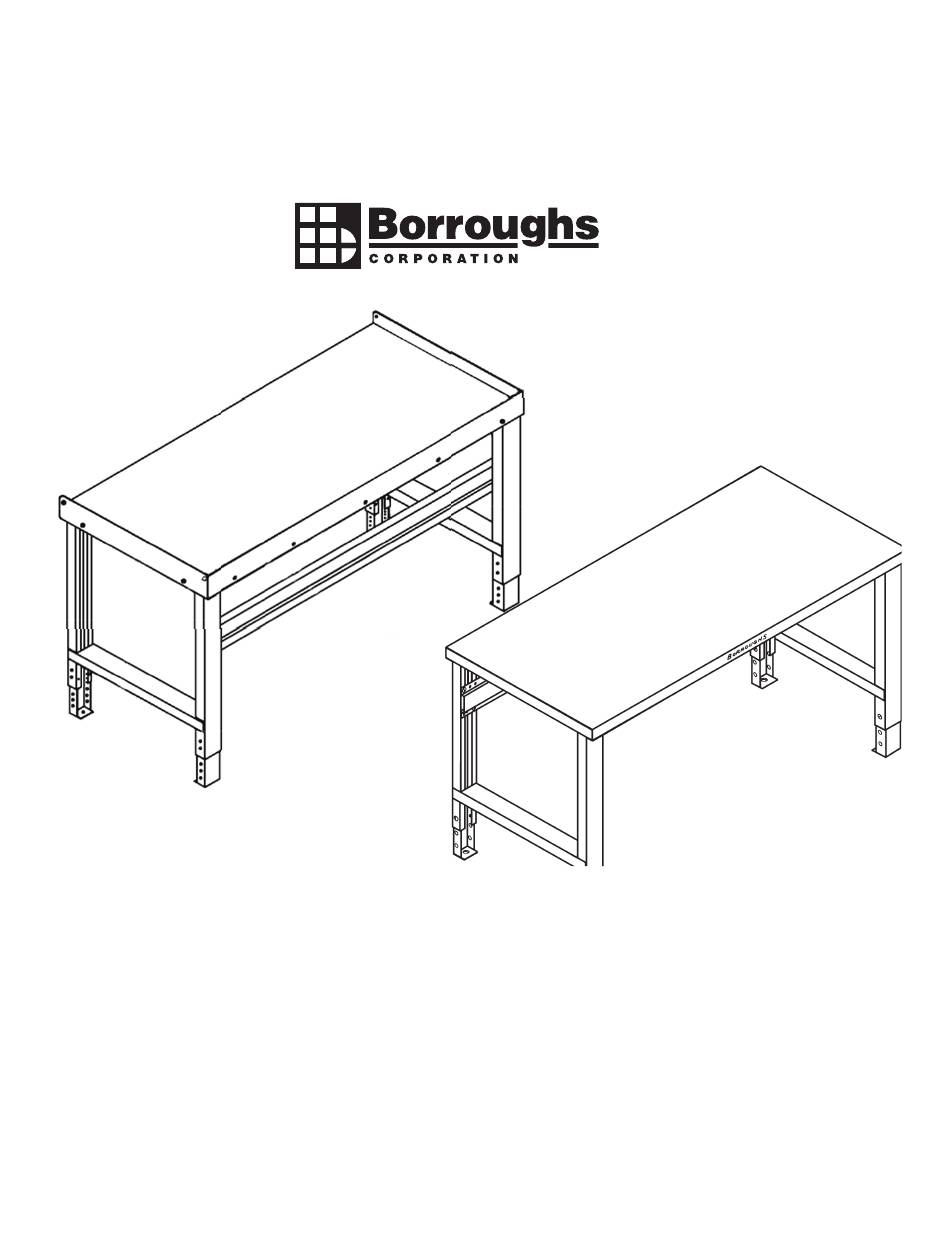

Assembly Instructions for Basic Work Bench
100, 130, and 300 Series
IMPORTANT - PRODUCT LIABILITY INFORMATION
READ ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY. VITAL PRODUCT INFORMATION PERTAINING TO PROPER SETUP
AND CAUTIONS ARE INCLUDED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY AND/OR PROPER-
TY DAMAGE.
Advertisement
Table of Contents
Related Manuals for Borroughs 100 Series
Summary of Contents for Borroughs 100 Series
- Page 1 Assembly Instructions for Basic Work Bench 100, 130, and 300 Series IMPORTANT - PRODUCT LIABILITY INFORMATION READ ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY. VITAL PRODUCT INFORMATION PERTAINING TO PROPER SETUP AND CAUTIONS ARE INCLUDED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY AND/OR PROPER- TY DAMAGE.
- Page 2 Fasten the leg weldment so the legs along the back edges of and stringer assembly to the bench bench. (BORROUGHS is stamped on top with (8) .312 (5/16") x 1" lag the front edge of Bench). Position screws. See Figure 6. Lag screws are...
- Page 3 Leveler Foot Plate Parts List "C" Item Description Req'd. Foot Plate Assembly 2 pair .312 (5/16) Keps Nut .312 (5/16) - 18 x .500 (1/2) Phillips T.H.M.S. Tools Required: 1. Phillips Screwdriver 2. 1/2" Open End or Box Type Wrench 1.
- Page 4 End Guards Parts List "E" Item Description Req'd. End Guard 1 pair .312 (5/16) - 18 x .500 (1/2) Phillips T.H.M.S. .312 (5/16) - 18 Keps Nut Tools Required: 1. Phillips Screwdriver 2. 1/2" Open End or Box Type Wrench Position end guard (Item 1) so that the two holes align with the holes in the side of the attachment channel.
- Page 5 Ledge Riser Parts List "G" Item Description Req'd. Ledge Shelf Ledge End .312 (5/16) - 18 x .500 (1/2) Phillips T.H.M.S. .312 (5/16) - 18 Keps Nut Tools Required: 1. Phillips Screwdriver 2. 1/2" Open End or Box Type Wrench 1.
- Page 6 Portable Bench Parts List "H" Item Description Req'd. Heavy Duty Plate Caster Caster with Brake .438 (7/16) Helical Lock Washer .438 (7/16) - 14 Hex Nut NOTE: Both of Tools Required: 1. 5/8" Open End or Box Type Wrench the casters with the brakes are to 1.
- Page 7 This warranty gives you specific legal rights; you may also have other rights which may vary from state to state. Contact your Borroughs Selling Dealer, to obtain warranty service. You must make a written claim. Provide a copy of your purchase record and a written description of the warranty problem with your claim.
