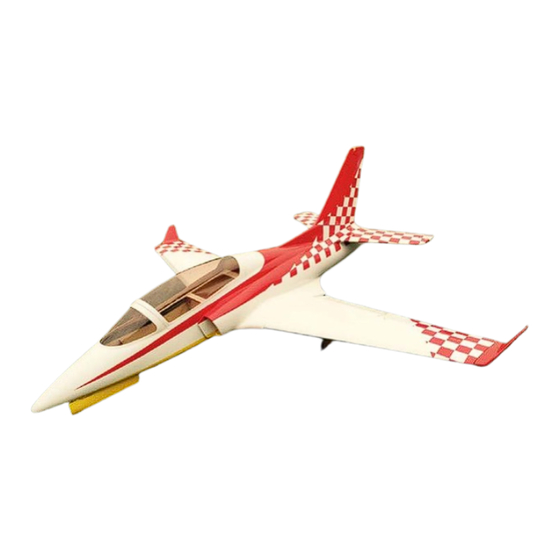

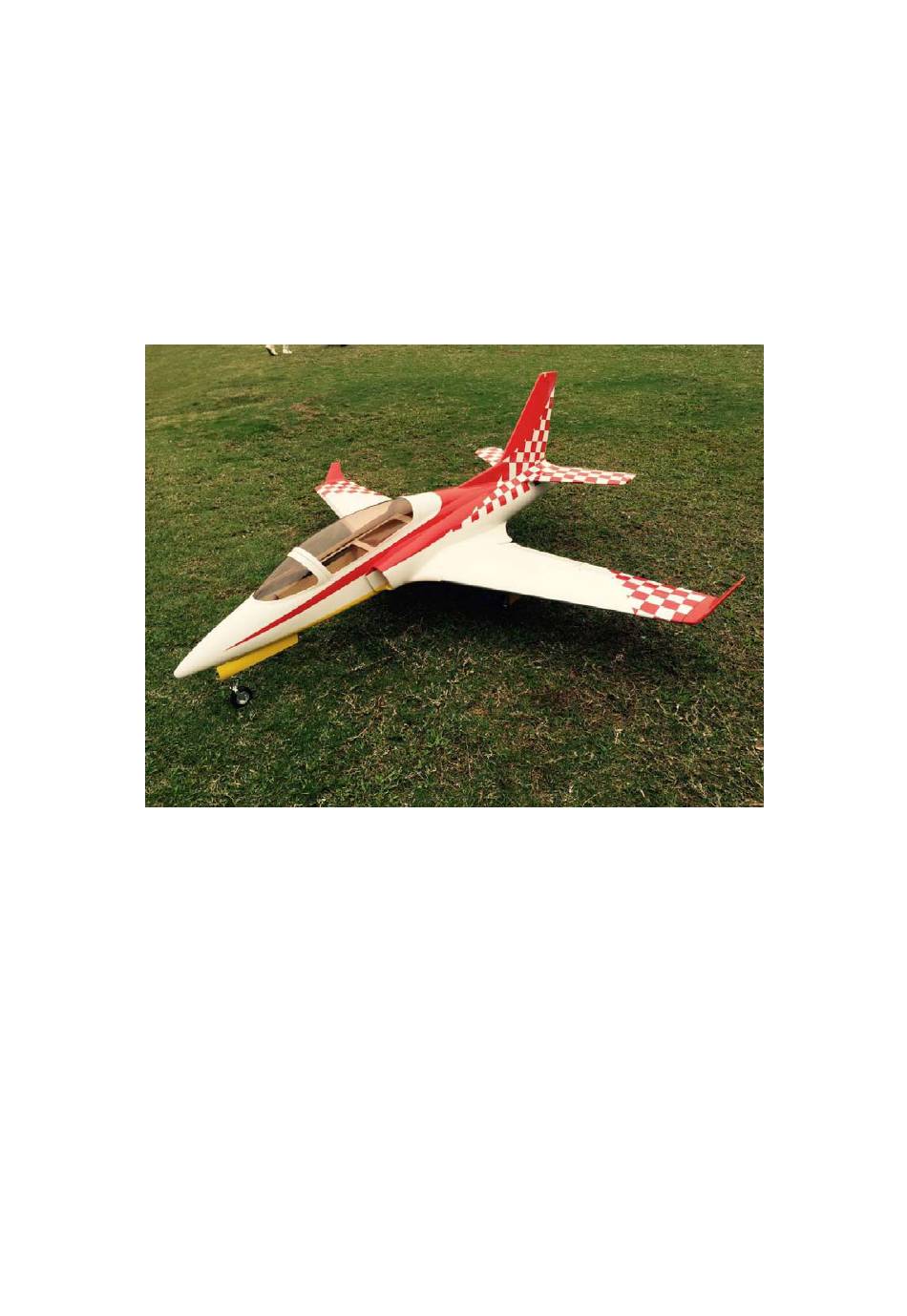

Flyfly hobby New VIPER JET FF-J005
86" 12kg Viperjet ARF
Assembly instructions manual
______________________________________________________________________________________________________
Length: 78.5" (2000mm)
Wingspan: 86"(2200mm)included winglets
Dry weight: 10kg to 12kg
Power: 8 to 12kg thrust
Radio: min. 8 ~ 12 Servos required
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for flyfly hobby VIPER JET FF-J005
Summary of Contents for flyfly hobby VIPER JET FF-J005
- Page 1 Flyfly hobby New VIPER JET FF-J005 86” 12kg Viperjet ARF Assembly instructions manual ______________________________________________________________________________________________________ Length: 78.5" (2000mm) Wingspan: 86"(2200mm)included winglets Dry weight: 10kg to 12kg Power: 8 to 12kg thrust Radio: min. 8 ~ 12 Servos required...
- Page 2 Section 1: Assembling the Fin & Rudder Install the servo for rudder Highly recommended use a 17kg or above high torque metal gear servo Use epoxy to glue the rudder control horns Connect the linkage with servo horn Use 3mm screw with lock nut...
- Page 3 Section 2: Assembling the elevators Install the servo for elevators Highly recommended use a 17kg or above high torque metal gear servo Use epoxy to glue the elevator control horns Connect the linkage with servo horn Use 3mm screw with lock nut...
- Page 4 Section 3: Assembling the Main Wings(Flaps & Aileron) Use epoxy to glue the Flaps & Aileron control horns Install the servo for Flaps & Aileron Highly recommended use a 17kg or above for Flaps 9kg or above for Aileron high torque metal gear servo...
- Page 5 Connect the linkage with servo horn Use 3mm screw with lock nut Use epoxy Fit and glue winglets to wing tips(can do this at last)
- Page 6 Section 4: Assembling the retracts and steering Notice: please connect all air tubes before Use 4mm screws to fix the retracts Install the retracts. Main retracts finished...
- Page 7 Use 4mm screws to fix the nose retracts Install steering servo Notice: please connect all air tubes before Highly recommended use a high torque metal gear servo Install the nose retract. for steering. Connect the cable on the nose gear Connect the cable on the servo horn...
- Page 8 Section 5: Assembling the fuselage Use 4mm screws to connect the nose part with the fuselage...
- Page 9 Section 6: Assembling the fuel tanks Locate the two fuel tanks as the picture (can use Silicone glue to fix the fuel tanks)
- Page 10 Section 7: Assembling the turbine and tail pipe Use epoxy to glue the engine mount Use epoxy to glue the tail cone. Please do the adjustment with your turbine first can move forward or backward to fit your turbine. Use 3mm screws to fix the tail pipe Finished...
- Page 11 Use 3mm / 4mm screws to fix the turbine. Use 3mm screws to fix the engine cover...
- Page 12 Section 8: Accessory tray installation There have three plates can install those accessories. Number 1 for all air kit and sequencer (just for my suggestions, you can make your choice) Number 2 for UAT, fuel pump and smoke pump….etc Number 3 for all batteries and receiver...
- Page 13 The location of three accessories board Connect all air tubes Connect all fuel tubes...
- Page 14 Pleaes also do the same on the gear door...
- Page 15 Following the drawing to connect all fuel lines.
- Page 16 Section 9: Assembling the gear door(options: can use servo to replace the cylinder if you like) Use epoxy to glue the LG blocks and LG Use epoxy to glue the gear door horns ribs to skin of wings, Trim if needed. Make sure surfaces move freely.
- Page 17 Connect the cylinder and the door horn Use epoxy to glue the gear door horns Make a mark for locate the drill space Install the cylinder(20mm stroke) and then connect it to the door horn.
- Page 18 Section 10: Combine the Main wings, rudder, elevators and ventral fins Use the bracket to fix the rudder (inside of the fuselage) (or you can glue it by epoxy if you like) Use 4mm screws to fix the elevators (at the bottom of fuselage) (or you can glue it by epoxy if you like)
- Page 19 Plug-in the main wings and then use 6mm screw to fix. Use epoxy to glue the ventral fin (or use a 3mm lock nut if you like)
-
Page 20: Before You Fly
Follow the radio's instructions. A timer can safe your model. for example: 4L fuel with T12 turbine The flying time will be around 7 mins with 2 mins taxing. *The end, hope you would enjoy our Viperjet* Copyright 2016 Flyfly hobby Website:www.flyflyhobby.com Email:info@flyflyhobby.com...
