Lefroy Brooks K1-1300 Installation, Operating, & Maintenance Instructions

Deck hands-free electronic basin faucet

Advertisement

Quick Links

INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
K1-1300
DECK HANDS-FREE ELECTRONIC BASIN FAUCET

Advertisement

loading
Need help?

Need help?

Do you have a question about the K1-1300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lefroy Brooks K1-1300

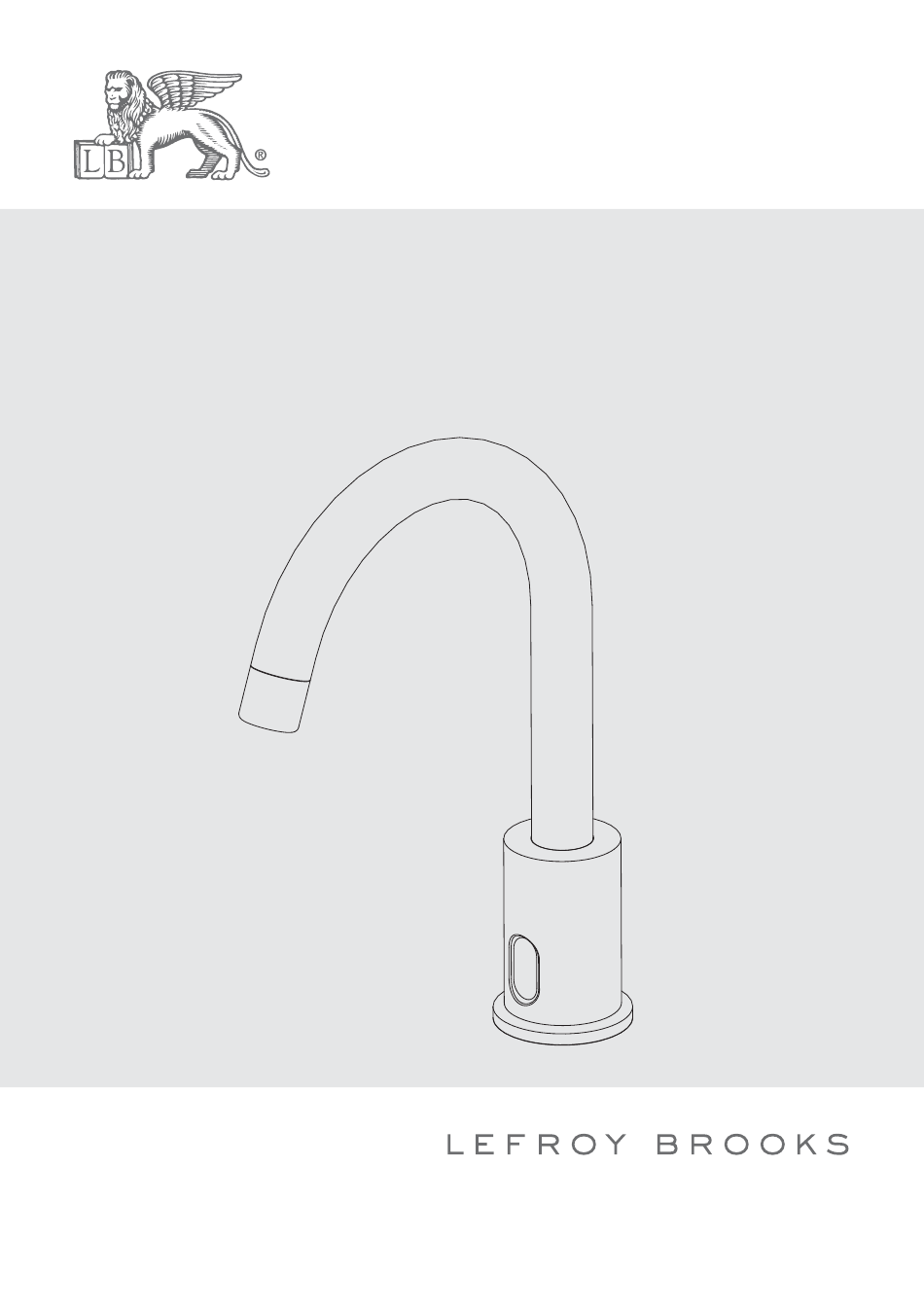

  • Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS K1-1300 DECK HANDS-FREE ELECTRONIC BASIN FAUCET...
  • Page 2: Table Of Contents

    Contents Dimensions Sensor Information and Adustment Procedure Installation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...
  • Page 3: Dimensions

    Dimensions in Inches (& Millimetres) 7 1/4" (184mm) 5 7/8" (149mm) Ø7/8" (Ø22mm) 20° Ø1 5/8" (Ø42mm) Ø1 15/16" (Ø50mm) 3/8-18NPSM-2A 7 1/4" (184mm) 2 7/8" (73.5mm) 1/2-14NPSM-2B Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 4: Sensor Information And Adustment Procedure

    Sensor power on procedure Please read this chapter carefully and make sure you understand before you start the installation. 1. The optimum detection range has been set up already. In general circumstances, you do not need to set or adjust it again. 2.
  • Page 5: Installation Procedure

    Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Fix the faucet to deck. Fix the adaptor tightly to ensure sealing.
  • Page 6 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Connect with flexible hose. Connect brass filter to solenoid valve.
  • Page 7 Installation Procedure Steps 5-6 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Connect the solenoid valve to the flexible hose. Attach another flexible hose to the valve. Please note: this product can also be connected to a hot and cold feed,...
  • Page 8 Installation Procedure Steps 7-8 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Attach the valve securely to a solid location point. Connect the cables as shown: A connects to A; B connects to B.
  • Page 9: Parts List

    Parts List Exploded view Spout (139801W) O-ring (063022N) Screw (075095) Oil-seal (010805N) Fixer for sensor wires (120045) Protective box base for valve Aerator insert (553661N) Washer (013973) (540062) Aerator housing (305779N-54) Nut (054062) Screw (053022) O-ring (063073N) Adaptor (067557W) Plastic anchor bolt (291101) Set screw (075018) Screw (008500) Solenoid valve (543109)
  • Page 10: Fault Finder

    Fault Finder Fault Cause Rectification Aerator leaks or has an Aerator is dirty or misfitted. Unscrew the aerator to check inconsistent water flow pattern. rubber packing. Re-assemble the aerator. Sensor does not respond and a red There is some unexpected object Check if there is any unexpected light is continuously on when the within detection range.
  • Page 11: Safety Tips, Care And Maintenance

    Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.
  • Page 12: Guarantee

    Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
  • Page 13 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
