Sim Cover; Reset Button; Ethernet; Lte - NetModule NB2800 Quick Start Manual

4

SIM cover

5

Reset button

6

Ethernet

7

LTE

8

WLAN

9 Power and
Ignition Sense
10 Extension
port cover
www.netmodule.com

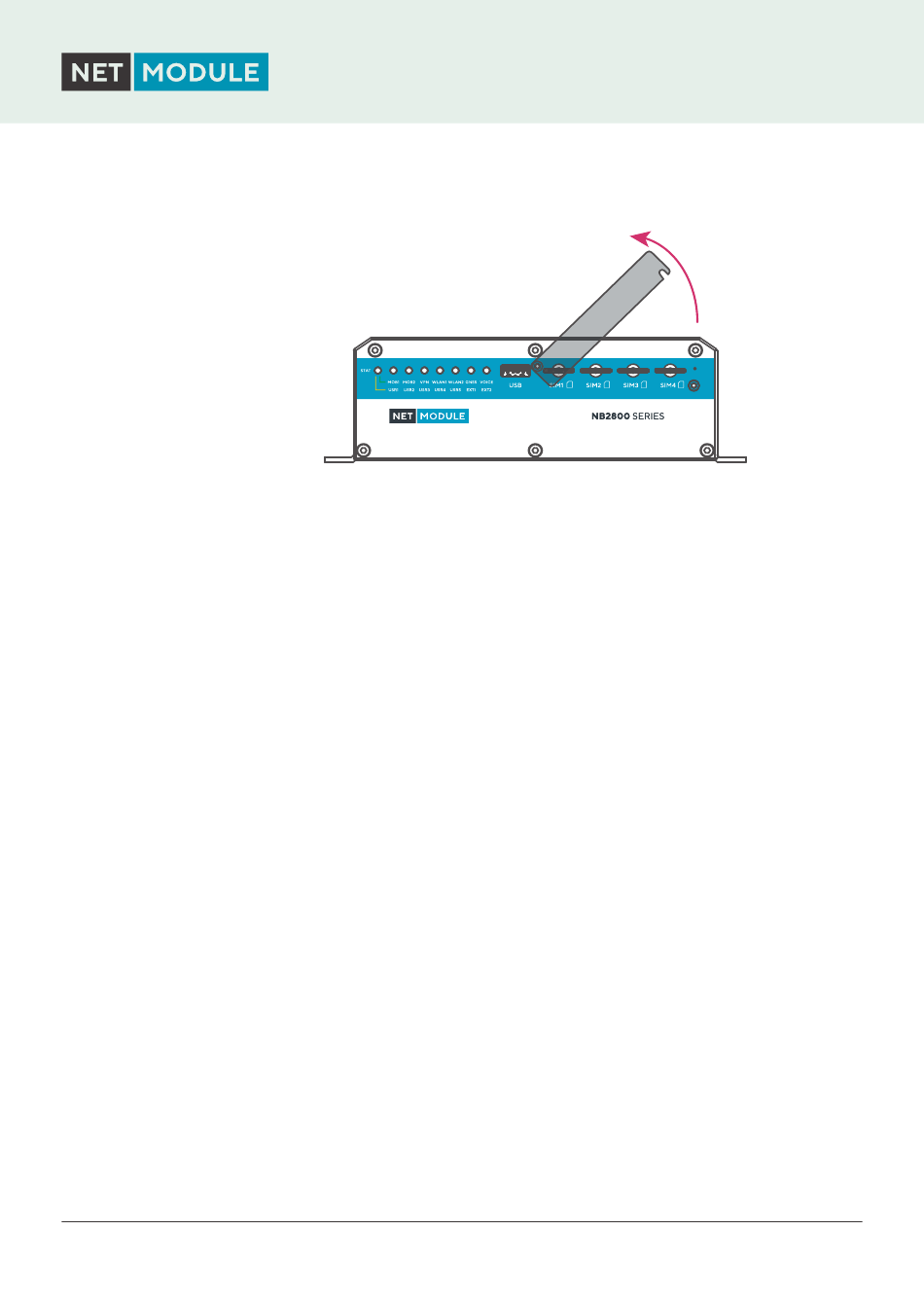

Removing the SIM cover: Loosen both screws and flip over
the SIM cover until the SIM card holder is completely free.
Please close the cover after inserting a SIM card and
tighten the screws again.
The reset button is accessible through a small hole in the
right of the SIM card slots. Press at least 3 seconds for re-
boot and at least 10 second for a factory reset. The start of
the factory reset is confirmed by all LEDs lighting up for a
second. The button must be released then again.
Connect your router by using the ETH 1 with your compu-
ter to start the configuration. Your router is configured as a
DHCP server by default and has the IP address 192.168.1.1.
Open this IP in your browser to reach the WEB-GUI.
FAKRA connectors for MIMO LTE antennas. The left port
is always the main port.
FAKRA connectors for MIMO WLAN antennas. The left
port is always the main port.
The router can be powered with an external source with
the nominal input voltages 12VDC, 24VDC, 36VDC and
48VDC.
For power, use the pins 1 (VGND) and 2 (V+). For ignition
sense, use pin 3 (IGN).
Connector for extensions. Please find detailed information
in the router manual.
31.12.2019 © NetModule AG | Errors reserved
Quick Start Guide Enclosure
NB2800
